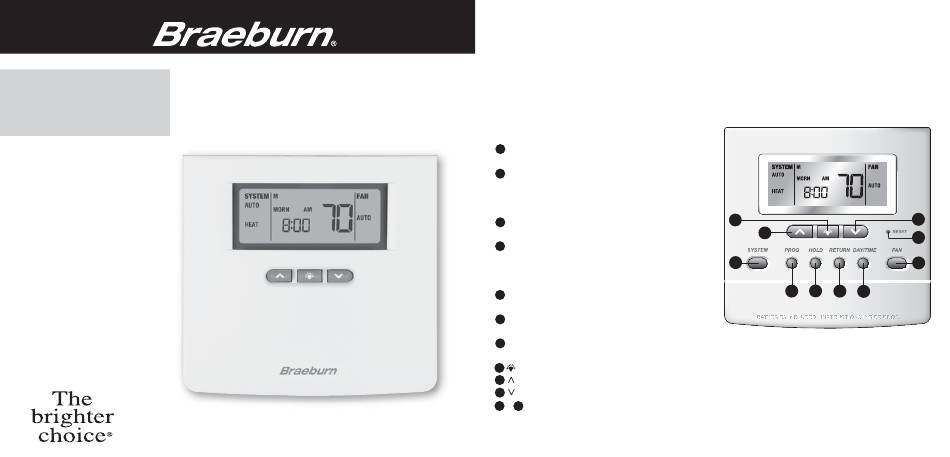

Braeburn 5300 User Manual

MODEL Premier Series
5300
Universal Auto Changeover
Up to 3 Heat / 2 Cool Heat Pump or
2 Heat / 2 Cool Conventional Thermostat
USER
MANUAL
READ ALL INSTRUCTIONS
BEFORE PROCEEDING
Braeburn Systems LLC, as an Energy Star
partner has determined that this product
meets the Energy Star Guidelines developed
by the U.S. Environmental Protection Agency
& the U.S. Department of Energy for
maximum energy efficiency.
CONTENTS
1 3
QUICK REFERENCE
2 PROGRAMMING
4
USER SETTINGS
1
QUICK REFERENCE
1 SYSTEM Button: Selects AUTO (Heat/Cool), COOL, OFF,
HEAT or EMER.
2 PROG Button: Press to enter the program setup mode where
you can select the time, temperature and fan setting for each
program period. Scrolls backward between user/installer
setup screens.
HOLD Button: Enables or disables extended hold mode or
3
temporary program override.
4 RETURN Button: Press and hold for 4 seconds to enter the
user settings mode (see user manual). Scrolls between user/
installer setup screens. Returns unit to normal mode when
in program mode.
5 DAY/TIME Button: Enters time and day setting mode.
Selects individual days in program mode.
6 FAN Button: Selects AUTO, ON, CIRC (recirculate) and
PROG (program) modes.
7 RESET Button: Resets time, program and some user settings back to the factory default. See section 4 for a list of functions
that will return to their factory default settings after the RESET button is pressed.
8
Button: Turns on backlight for 10 seconds.
9
Button: Increases setting (time, temperature, etc.). Scrolls between option settings.
10 Button: Decreases setting (time, temperature, etc.). Scrolls between option settings.
+
2 3 Press and hold both buttons at the same time to view the outdoor temperature if an outdoor sensor is connected.
ADDITIONAL OPERATION FEATURES
TROUBLESHOOTING
model 5300 shown with cover open
8
9
1
2 3 4 5
1
10
7
6
