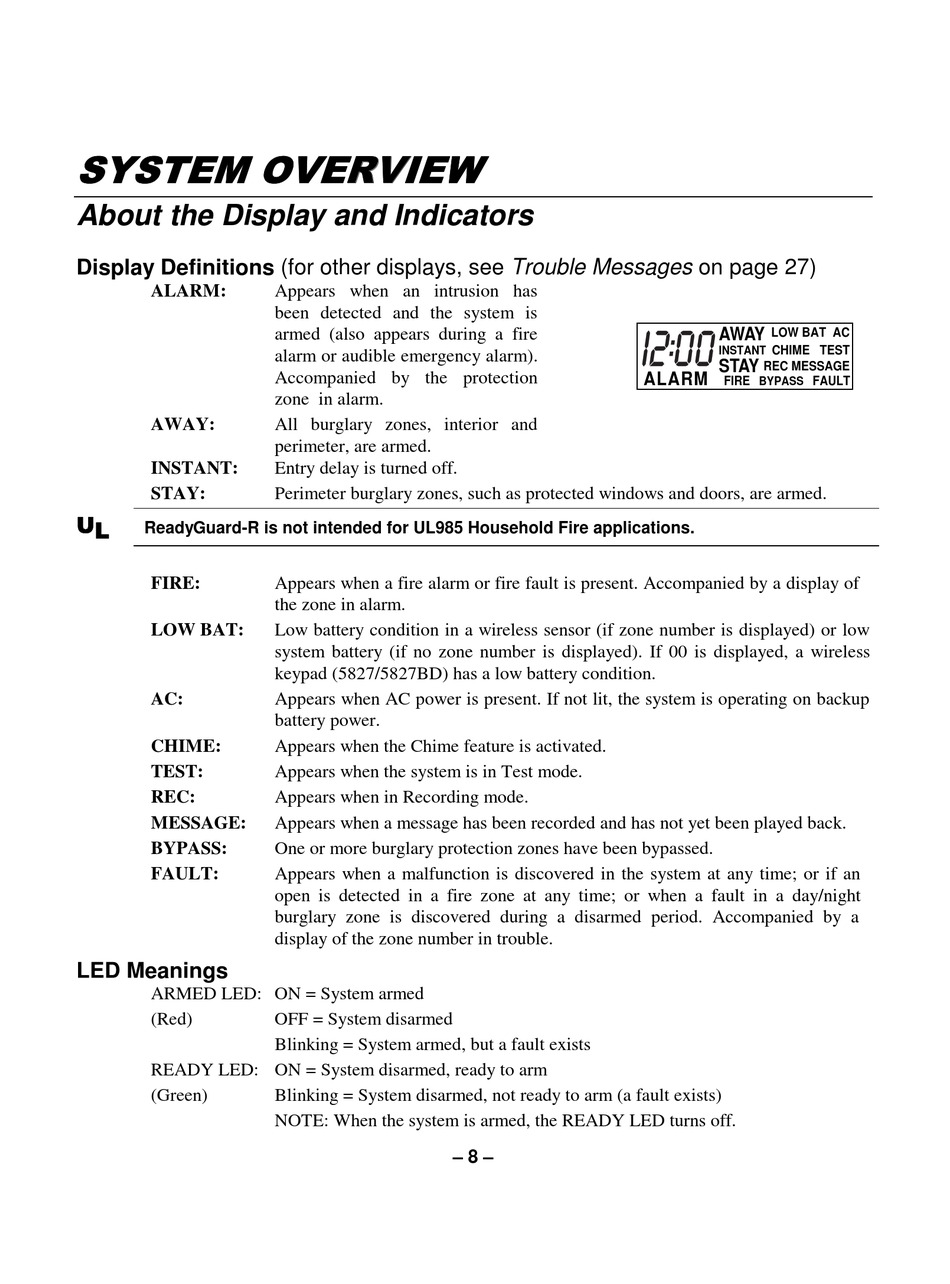

About the Display and Indicators
Display Definitions (for other displays, see Trouble Messages on page 27)
ALARM:
AWAY:
INSTANT:
STAY:
ReadyGuard-R is not intended for UL985 Household Fire applications.
FIRE:
LOW BAT:
AC:
CHIME:
TEST:
REC:
MESSAGE:
BYPASS:
FAULT:
LED Meanings
ARMED LED: ON = System armed
(Red)
READY LED: ON = System disarmed, ready to arm
(Green)
Appears when an intrusion has
been detected and the system is
armed (also appears during a fire
alarm or audible emergency alarm).
Accompanied by the protection
zone in alarm.
All burglary zones, interior and
perimeter, are armed.
Entry delay is turned off.
Perimeter burglary zones, such as protected windows and doors, are armed.
Appears when a fire alarm or fire fault is present. Accompanied by a display of
the zone in alarm.
Low battery condition in a wireless sensor (if zone number is displayed) or low
system battery (if no zone number is displayed). If 00 is displayed, a wireless
keypad (5827/5827BD) has a low battery condition.
Appears when AC power is present. If not lit, the system is operating on backup
battery power.
Appears when the Chime feature is activated.
Appears when the system is in Test mode.
Appears when in Recording mode.
Appears when a message has been recorded and has not yet been played back.
One or more burglary protection zones have been bypassed.
Appears when a malfunction is discovered in the system at any time; or if an
open is detected in a fire zone at any time; or when a fault in a day/night
burglary zone is discovered during a disarmed period. Accompanied by a
display of the zone number in trouble.
OFF = System disarmed
Blinking = System armed, but a fault exists
Blinking = System disarmed, not ready to arm (a fault exists)
NOTE: When the system is armed, the READY LED turns off.
– 8 –
AWAY
LOW BAT AC
INSTANT
CHIME TEST
STAY
REC MESSAGE
ALARM
FIRE
BYPASS
FAULT
