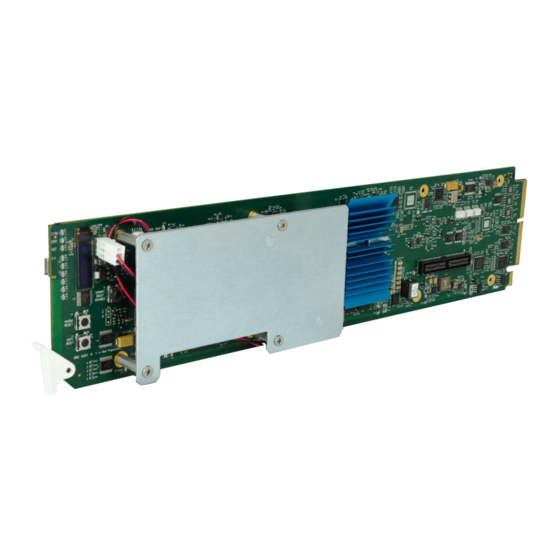

9927-2StoH
9927-2StoH
®
3G/HD/SD Dual-Channel openGear
SDI-To-HDMI
Converter with Per-Channel Frame Sync
Product Manual
Cobalt Digital Inc.
2506 Galen Drive
Champaign, IL 61821
Voice 217.344.1243 • Fax 217.344.1245
www.cobaltdigital.com
9927-2STOH-OM (V1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9927-2StoH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cobalt Digital Inc 9927-2StoH

Summary of Contents for Cobalt Digital Inc 9927-2StoH

  • Page 1 9927-2StoH 9927-2StoH ® 3G/HD/SD Dual-Channel openGear SDI-To-HDMI Converter with Per-Channel Frame Sync Product Manual Cobalt Digital Inc. 2506 Galen Drive Champaign, IL 61821 Voice 217.344.1243 • Fax 217.344.1245 www.cobaltdigital.com 9927-2STOH-OM (V1.0)
  • Page 2 Furthermore, Cobalt Digital Inc. reserves the right to make changes to any products herein to improve readability, function, or design. Cobalt Digital Inc. does not assume any liability arising out of the application or use of any product or circuit described herein.

  • Page 3: Table Of Contents

    Introduction ......... . . Overview ..........................1-1 9927-2StoH Card Software Versions and this Manual ............1-1 Cobalt Reference Guides ..................... 1-2 Manual Conventions......................
  • Page 4 9927-2StoH Function Menu List and Descriptions............. 3-8 Input Video Controls ..................... 3-9 Video Proc/Color Correction ................3-10 Framesync ......................3-13 Output Video Routing ..................3-16 GPO Setup Controls .................... 3-18 Presets ........................3-18 Admin ........................3-20 Network Settings Controls .................. 3-21 User Events Setup Controls .................

  • Page 5: Chapter 1 Introduction

    Also provides general information regarding the 9927-2StoH. Chapter 2, “Installation and Setup” – Provides instructions for • installing the 9927-2StoH in a frame, and optionally installing a 9927-2StoH Rear I/O Module. Chapter 3, “Operating Instructions” – Provides overviews of •...

  • Page 6: Cobalt Reference Guides

    Cobalt Reference Guides The Software Version of your card can be checked by viewing the Card Info menu in DashBoard™. See Checking 9927-2StoH Card Information (p. 3-7) in Chapter 3, “Operating Instructions” for more information. You can then check our website for the latest software version currently released for the card as described below.

  • Page 7: Manual Conventions

    Introduction Manual Conventions Manual Conventions In this manual, display messages and connectors are shown using the exact name shown on the 9927-2StoH itself. Examples are provided below. Card-edge display messages are shown like this: • BOOT Connector names are shown like this: HDMI IN 1 •...

  • Page 8: Warnings, Cautions, And Notes

    Symbol (WEEE 2002/96/EC) For product disposal, ensure the following: • Do not dispose of this product as unsorted municipal waste. • Collect this product separately. • Use collection and return systems available to you. 9927-2STOH PRODUCT MANUAL 9927-2STOH-OM (V1.0)

  • Page 9: Safety And Regulatory Summary

    • OG3 Frame: (5) cards • HPF-9000 Frame: (5) cards • oGx Frame: (7) cards If required, make certain Rear I/O Module(s) is installed before installing the 9927-2StoH CAUTION into the frame slot. Damage to card and/or Rear I/O Module can occur if module installation is attempted with card already installed in slot.

  • Page 10: 9927-2Stoh Functional Description

    9927-2StoH Functional Description 9927-2StoH Functional Description Figure 1-1 shows a functional block diagram of the 9927-2StoH. The 9927-2StoH provides two independent signal paths ( HDMI Channel 1 HDMI ) of SDI-to-HDMI conversion and frame sync. The multiple paths Channel 2 share input and output crosspoints to receive and send two outputs.
  • Page 11 Introduction 9927-2StoH Functional Description Figure 1-1 9927-2StoH Functional Block Diagram 9927-2STOH-OM (V1.0) 9927-2STOH PRODUCT MANUAL...

  • Page 12: Video Processor Description

    9927-2StoH Functional Description Video Processor Description The 9927-2StoH video subsystem provides the functions described below. Input Video Select Functions Used in common as a routing source for is a GUI-based Path 1 Path 2 control that allows the card to select from either of two SDI inputs to be used as sources for processed video paths.

  • Page 13: Audio Processor Description

    Introduction 9927-2StoH Functional Description Video Output Crosspoint Used in common as a routing source for is a dual-output Path 1 Path 2 video matrix crosspoint that allows independently applying the card processed video output to either of the two card discrete HDMI outputs...
  • Page 14 9927-2StoH Functional Description Flex Buses. For both input and output nodes before and after the card internal buses, flex buses provide flexible-structure mixer in which any of 16 summing nodes ( thru ) can receive any card Flex Mix Bus A Flex Mix Bus P audio input, thereby allowing several customizable mixing schemes.

  • Page 15: User Control Interface

    Introduction 9927-2StoH Functional Description User Control Interface Figure 1-3 shows the user control interface options for the 9927-2StoH. These options are individually described below. Note: All user control interfaces described here are cross-compatible and can operate together as desired. Where applicable, any control setting change made using a particular user interface is reflected on any other connected interface.
  • Page 16 • DashBoard™ and the Remote Control Panels provide network control of the 9927-2StoH as shown. The value displayed at any time on the card, or via DashBoard™ or a Control Panel is the actual value as set on the card, with the current value displayed being the actual value as effected by the card.

  • Page 17: 9927-2Stoh Rear I/O Modules

    All inputs and outputs shown in the 9927-2StoH Functional Block Diagram (Figure 1-1) enter and exit the card via the card edge backplane connector. The Rear I/O Module breaks out the 9927-2StoH card edge connections to coaxial and other connectors that interface with other components and systems in the signal chain.
  • Page 18 Frame Sync Audio/VIdeo Delay Max offset: 20 frames Latency (min): 1 frame User Audio Delay Offset from Video Bulk delay control: -33 msec to +3000 msec. Per-channel delay controls: -800 msec to +800 msec 1-14 9927-2STOH PRODUCT MANUAL 9927-2STOH-OM (V1.0)

  • Page 19: Warranty And Service Information

    (1) year. Cobalt Digital Inc.'s (“Cobalt”) sole obligation under this warranty shall be limited to, at its option, (i) the repair or (ii) replacement of the product, and the determination of whether a defect is covered under this limited warranty shall be made at the sole discretion of Cobalt.

  • Page 20: Contact Cobalt Digital Inc

    Contact Cobalt Digital Inc. Contact Cobalt Digital Inc. Feel free to contact our thorough and professional support representatives for any of the following: Name and address of your local dealer • Product information and pricing • Technical support • Upcoming trade show information •...

  • Page 21: Chapter 2 Installation And Setup

    Note: If installing the 9927-2StoH in a slot with no rear I/O module, a Rear I/O Module is required before cabling can be connected. Refer to Installing a Rear I/O Module (p. 2-3) for rear I/O module installation procedure.
  • Page 22 Installing the 9927-2StoH Into a Frame Slot CAUTION If required, make certain Rear I/O Module(s) is installed before installing the 9927-2StoH into the frame slot. Damage to card and/or Rear I/O Module can occur if module installation is attempted with card already installed in slot. Note: Check the packaging in which the 9927-2StoH was shipped for any extra items such as a Rear I/O Module connection label.

  • Page 23: Installing A Rear I/O Module

    • This procedure is applicable only if a Rear I/O Module is not currently installed in the slot where the 9927-2StoH is to be installed. • When determining slot to use, see 9927-2StoH Rear I/O Modules (p. 2-4) and check notes (where applicable) for rear module being considered for use.

  • Page 24: 9927-2Stoh Rear I/O Modules

    • Two 3G/HD/SD-SDI HDMI 2.0 type A outputs (HDMI OUT 1 and HDMI OUT 2) Note: • Due to the alignment of the 9927-2StoH card and this rear module, the combination of the card and rear module will consume the adjacent odd frame slot in addition to the even slot occupied by the card.

  • Page 25: Setting Up 9927-2Stoh Network Remote Control

    DashBoard Remote Control Setup Guide as a download, or contact ® Cobalt as listed in Contact Cobalt Digital Inc. (p. 1-16). • If installing a card in a frame already equipped for, and connected to DashBoard™, no network setup is required for the card. The card will be dis- covered by DashBoard™...
  • Page 26 This page intentionally blank 9927-2STOH PRODUCT MANUAL 9927-2STOH-OM (V1.0)

  • Page 27: Chapter 3 Operating Instructions

    The format in which the 9927-2StoH functional controls, indicators, and displays appear and are used varies depending on the user interface being used. Regardless of the user interface being used, access to the 9927-2StoH functions (and the controls, indicators, and displays related to a particular...

  • Page 28: Function Menu/Parameter Overview

    Figure 3-1 shows how the 9927-2StoH card and its menus are organized, and also provides an overview of how navigation is performed between cards, function menus, and parameters.

  • Page 29: Dashboard™ User Interface

    GUI slider controls. Items in a list can then be selected using GUI drop-down lists. DashBoard Tabs Typical Selection List Typical Button Control Typical Status Display Typical Parametric Control Figure 3-2 Typical DashBoard Tabs and Controls 9927-2STOH-OM (V1.0) 9927-2STOH PRODUCT MANUAL...

  • Page 30: Cobalt ® Remote Control Panel User Interfaces

    In this example, Color Gain (saturation) is adjusted using the control knob adjacent to 9927-2StoH_3370_3372B.J Color Gain Figure 3-3 Remote Control Panel Setup of Example Video Proc Function Setup 9927-2STOH PRODUCT MANUAL 9927-2STOH-OM (V1.0)

  • Page 31: Accessing The 9927-2Stoh Card Via Remote Control

    On the computer connected to the frame LAN, open DashBoard™. As shown below, in the left side Basic View Tree locate the Network Controller Card associated with the frame containing the 9927-2StoH card to be accessed (in this example, “MFC-8320-N SN: 00108053”).

  • Page 32: Accessing The 9927-2Stoh Card Using A Cobalt ® Remote Control Panel

    Accessing the 9927-2StoH Card via Remote Control Card Access/Navigation Card Info Card Function Menu and Tree Pane Pane Controls Pane Accessing the 9927-2StoH Card Using a Cobalt ® Remote Control Panel Press the key and select a card as shown in the example below.

  • Page 33: Checking 9927-2Stoh Card Information

    Operating Instructions Checking 9927-2StoH Card Information Checking 9927-2StoH Card Information The operating status and software version the 9927-2StoH card can be checked using DashBoard™. Figure 3-4 shows and describes the 9927-2StoH card information screen using DashBoard™. Note: Proper operating status in DashBoard™ is denoted by green icons for the status indicators shown in Figure 3-4.

  • Page 34: 9927-2Stoh Function Menu List And Descriptions

    9927-2StoH Function Menu List and Descriptions 9927-2StoH Function Menu List and Descriptions Table 3-1 individually lists and describes each 9927-2StoH function menu and its related list selections, controls, and parameters. Where helpful, examples showing usage of a function are also provided. Table 3-1 is primarily based upon using DashBoard™...

  • Page 35: Input Video Controls

    Operating Instructions 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List Displays input video status for the up to two SDI card inputs. Provides an input crosspoint for routing up to two inputs to desired Path 1 and Path 2 processing Input Video Controls paths.

  • Page 36: Video Proc/Color Correction

    9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued (Option +COLOR) Provides the following Video Proc and optional Color Correction parametric controls. Activates the Vid Proc/Color Correction user interface (UI) controls for a • Select Path For Vid Proc/Correction Setup desired path.
  • Page 37 Operating Instructions 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued Provides color correction for the individual RGB channels for the each program video path. • Color Corrector Color Corrector (On/Off) provides master on/off control of all Color Corrector functions.
  • Page 38 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued (continued) • Black Hard Clip Applies black hard clip (limiting) at specified percentage. (-6.8% to 50.0%; null = -6.8%) • White Hard Clip Applies white hard clip (limiting) at specified percentage.

  • Page 39: Framesync

    Operating Instructions 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued Provides dual-path independent video frame sync/ delay offset control and output control/loss of program video failover selection controls. Framesync Note: Per-path frame reference offers independent per-path controls (such as video delay offset). However, all paths must be locked to the same selected reference selection (e.g., frame REF 2 used for each path).
  • Page 40 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued (continued) • Program Video Output Mode Select Provides a convenient location to select between card program video output and other technical outputs from the choices shown to the left and described below.
  • Page 41 Operating Instructions 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued (continued) • Flat Field Color Select Provides a choice of flat field colors when Flat Field is invoked (either by LOS failover or directly by selecting Flat Field on the Program Video Output Mode Select control).

  • Page 42: Output Video Routing

    9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued Provides crosspoint, status displays, and enable/ disable for the up to two card HDMI outputs. Output Video Routing • Output Video Enable / Status/Identification Provides path-to-video output crosspoint and enable/disable for each...
  • Page 43 Operating Instructions 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued (continued) • HDR InfoFrame OETF Select Provides insertion of ANC metadata informing the display device what to “expect” in terms of OETF for the HDMI signal being provided.

  • Page 44: Gpo Setup Controls

    9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued Provides controls for setting up the two GPO’s power-up states as well as forced manual triggering. GPO Setup Controls • GPO Static Controls Power-on State allows the power-up GPO state to be set (initialized)
  • Page 45 Operating Instructions 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued (continued) • Saving Card State to a Preset 1. (See Preset Layer Select on previous page) If preset to be saved is desired to be targeted to a specific...

  • Page 46: Admin

    9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued Shows card display name and serial number. Allows custom card naming in DashBoard. Admin • Card DashBoard Name Control Allows card name In DashBoard to be changed as desired (default name is Cobalt SKU name of “9927-2StoH”).

  • Page 47: Network Settings Controls

    Operating Instructions 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued Provides utility to send engineering card data to Cobalt Support (as a .zip file) to aid in troubleshooting or special use cases needing assistance.
  • Page 48 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued (continued) • NTP Clock Setup Allows device NTP clock IP source and localization. This is the clock/time device will use for logs and other recorded actions.

  • Page 49: User Events Setup Controls

    Operating Instructions 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued Provides GPI-triggered (Event) loading of user presets. Any combination of card settings can be nested within a preset. The preset can be automatically engaged when a defined GPI condition occurs.

  • Page 50: Input Audio Routing/Controls

    9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued Provides audio routing and per-channel/bulk audio delay controls, and audio meters. These controls route selected input audio sources onto the card 16-channel internal buses (which are used for all audio processing).
  • Page 51 Operating Instructions 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued (continued) • Center Mix Ratio Control Adjusts the attenuation ratio of center-channel content from 5-channel source that is re-applied as Lt and Rt content to the DM-L and DM-R stereo mix.
  • Page 52 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued (continued) In this example – three, 4-input mono mixers are Flex Mix 1 provided by selecting Flex Mixer Bus A for the Flex Mix Emb Ch 1...
  • Page 53 Operating Instructions 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued Audio Delay – Provides bulk (all four groups/master) and individual card audio bus channel delay offset controls and delay parametric displays. Audio Delay Controls •...

  • Page 54: Output Audio Routing/Controls

    9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued Provides an audio crosspoint allowing the audio source selection for each embedded audio output channel. Also provides an output node Downmixer and Flex Mixer which can be applied to output program audio.
  • Page 55 Operating Instructions 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued Provides audio down-mix audio routing selections that multiplexes any five audio channel sources into a stereo pair. Downmixer Controls • Downmixer Source Controls Left Channel Input thru Right Surround Channel Input select the five source channels to be used for the downmix from the following choices: •...
  • Page 56 9927-2StoH Function Menu List and Descriptions Table 3-1 9927-2StoH Function Menu List — continued Flex Mixer – Provides a 16-channel mixer in which each selected audio bus channel can be mixed onto up to 16 independent output summing nodes. The input sources are the flex mix input channels.

  • Page 57: Troubleshooting

    Error and Failure Indicator Overview The 9927-2StoH card itself and its remote control systems all (to varying degrees) provide error and failure indications. Depending on how the 9927-2StoH card is being used (i.e, standalone or network controlled through DashBoard™...
  • Page 58 In this example, a “Fan Door Open” specific error is displayed. Yellow indicator icon in 9927-2StoH Card Info pane shows error alert, along with cause for alert (in this example, the 9927-2StoH is not receiving an SDI input on SDI IN 2).

  • Page 59: Basic Troubleshooting Checks

    Item Checks Verify power presence and • On both the frame Network Controller Card and the 9927-2StoH, in all characteristics cases when power is being properly supplied there is always at least one indicator illuminated. Any card showing no illuminated indicators should be cause for concern.

  • Page 60: Troubleshooting Network/Remote Control Errors

    The Cobalt Digital Inc. Technical Support Department will continue to provide advice on any product manufactured by Cobalt Digital Inc., beyond the warranty period without charge, for the life of the product. See Contact Cobalt Digital Inc. (p. 1-16) in Chapter 1, “Introduction“ for contact information. 3-34 9927-2STOH PRODUCT MANUAL 9927-2STOH-OM (V1.0)
