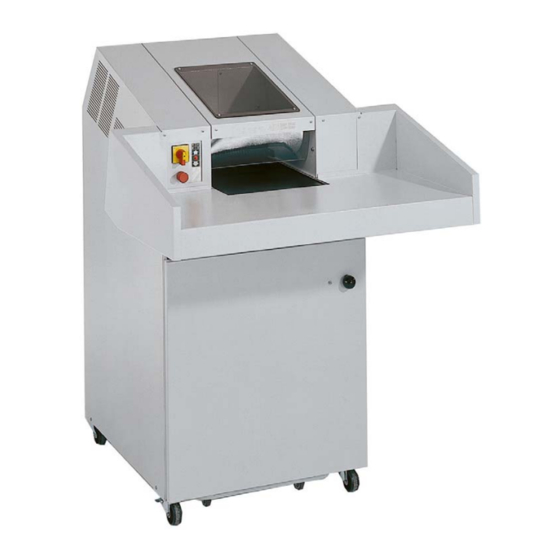

HSM FA 400.2
english
Keep in a safe place for future use!
OPERATING MANUAL
SHREDDER
geprüfte
Sicherheit
1.513.999.111 – 2004-12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FA 400.2 and is the answer not in the manual?

Questions and answers

Related Manuals for HSM FA 400.2

Summary of Contents for HSM FA 400.2

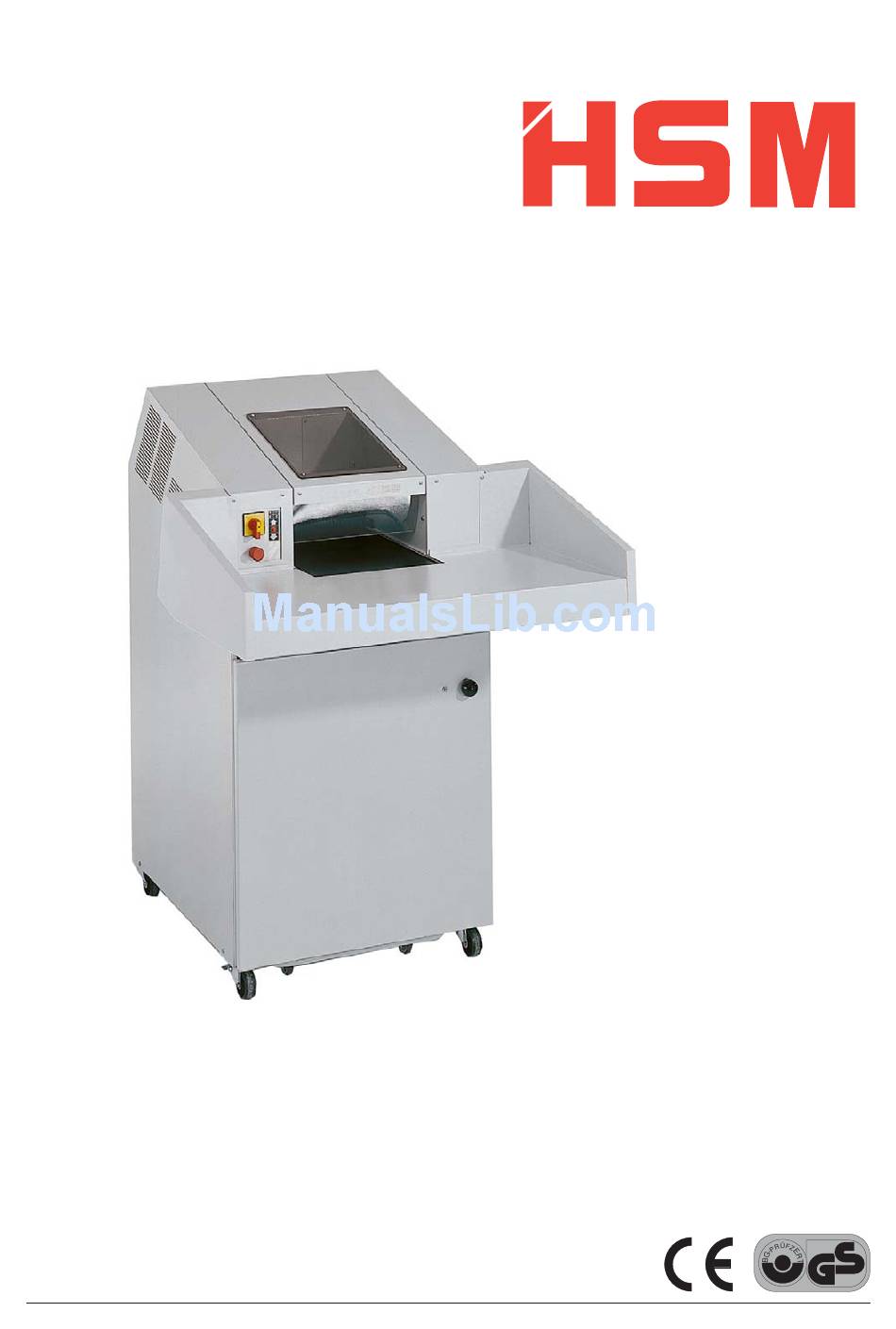

  • Page 1 OPERATING MANUAL SHREDDER HSM FA 400.2 english geprüfte Sicherheit Keep in a safe place for future use! 1.513.999.111 – 2004-12...

  • Page 2: Table Of Contents

    Maintenance and care ..................12 10. Scope of supply, accessories ................14 11. Technical data....................... 14 12. Electric wiring diagrams for Solo- and Combination-version ........ 15 HSM Pressen GmbH + Co. KG HSM of America LLC Bahnhofstraße 115 1075 Andrew Drive...

  • Page 3: Proper Use, Warranty

    2. Safety instructions Caution: It is prohibited to operate one only machine of a combination-version machine. Only the combination of document shredder and HSM baling press fulfits the requirements of EN 294. • Read the operating manual before starting up the shredder.

  • Page 4: Overview

    HSM FA 400.2 Shredder Overview HSM Pressen GmbH+Co.KG Bürotechnik • Austrasse 1 88699 Frickingen/Germany Made in Germany Modell Spannung Masch.-Nr. Nennstrom Seriennummer Leistung Schnittbreite Baujahr Main switch (only solo-version) Keypad Emergency stop button Loading tray Left cover panel Right cover panel...

  • Page 5: Dimensions

    Shredder HSM FA 400.2 4. Dimensions 1157 1564 HSM FA 400.2 Solo version 1157 1644 HSM FA 400.2 Combi version 1262 2414 Transportation dimensions (without tray) Space requirements for operation and maintenance 2004-12...

  • Page 6: Transportation, Installation

    HSM FA 400.2 Shredder 5. Transportation, installation • Place the shredder in its packaging on a smooth, level surface. • Remove the packaging. • If you need to move the shredder through narrow doors, you can wait until it is at its final location before fitting the loading tray.

  • Page 7: Operator Controls

    Shredder HSM FA 400.2 • The machine must be connected to a power source which meets the specifications on the nameplate. • Make sure the power cable is unobstructed and that nobody can tread on it. • No platforms or other raised surfaces may be placed near the shredder if they encroach on the specified safety clearances.

  • Page 8: Start-Up, Inspecting The Safety Devices

    HSM FA 400.2 Shredder Start-up, inspecting the safety devices Attaching the waste bag (Solo version) • Open the front door and pull out the waste trolley. • You can modify the trolley from a double-chamber to a single-chamber system by removing the brackets (1).
  • Page 9 Shredder HSM FA 400.2 Inspecting the safety devices Check that the safety devices are working properly: • At the start of each shift if the machine is not operated continuously • At least once a week if the machine is operated continuously •...
  • Page 10 HSM FA 400.2 Shredder Shredding material Place the material to be shredded on the loading tray and then place batches on the feed belt. If material that is not supposed to be shredded is mistakenly placed onto the belt, never attempt to pull it out •...

  • Page 11: Malfunctions

    Shredder HSM FA 400.2 8. Malfunctions Check the following before calling customer service: • Is the power plug connected? • Is the shredder switched on? • Is the front door closed? • Is the waste bag full? • Is there a paper jam in the shredder? •...

  • Page 12: Maintenance And Care

    HSM FA 400.2 Shredder Maintenance and care Cleaning the cutting block (once daily) • Switch off the shredder. • Squirt special cutting block oil through the paper feed opening onto the blade rollers. Order no. 1.235.997.401 for a 250 ml bottle Order no.
  • Page 13 Shredder HSM FA 400.2 Greasing the drive chains and cogs (twice yearly) • Switch off the shredder. • Pull out the power plug. • Remove the tray and the cover panels. • Grease the cogs and the drive chains from the motor to the cutting apparatus, the cutting block to the feed belt and the cutting block to the regulating roller.

  • Page 14: Scope Of Supply, Accessories

    HSM FA 400.2 Shredder Cleaning the shredder: • Switch off the shredder and disconnect the power plug. • Only use a soft cloth and mild soapy water for cleaning. Never use scouring agent, cleaning fluid, petroleum or thinners. 10. Scope of supply, accessories •...

  • Page 15: Electric Wiring Diagrams For Solo- And Combination-Version

    Shredder HSM FA 400.2 12. Electric wiring diagrams Legend: =AV: Shredder in switch cabinet +MA: on machine +BF: Keypad 2004-12...
  • Page 16 HSM FA 400.2 Shredder 2004-12...
  • Page 17 Shredder HSM FA 400.2 2004-12...
  • Page 18 HSM FA 400.2 Shredder 2004-12...
  • Page 19 Shredder HSM FA 400.2 2004-12...
  • Page 20 HSM FA 400.2 Shredder 2004-12...
  • Page 21 Shredder HSM FA 400.2 2004-12...

  • Page 22: Declaration Of Conformity

    Low voltage directive 73 / 23 / EWG The manufacturer HSM Pressen GmbH + Co. KG, Bahnhofstraße 115, D-88682 Salem declares herewith, that the paper shredder (Solo machine) HSM FA 400.2 corresponds with the above mentioned EC Machine Directive including all relevant modifications.
  • Page 23 Shredder HSM FA 400.2 2004-12...
