- Page 1 OPERATING INSTRUCTIONS PAPER SHREDDER HSM FA 490.1 english Keep this instruction for future use! 1.612.999.121 – 0912...
-
Page 2: Table Of Contents
+44 (0) 1543 272 080 E-mail: info@hsmuk.co.uk www.hsmuk.co.uk HSM of America LLC 1075 Andrew Drive Suite C HSM GmbH + Co. KG West Chester, PA 19380 Austrasse 1-9 88699 Frickingen / Germany Phone: 001 610 918 4894 Tel. +49 7554 21 00-0... -
Page 3: Proper Use, Warranty
Only task outside its normal scope of use. the combination of document shredder and HSM baling press fulfi ls the requirements of Maintenance and service tasks may EN 294 (Safety clearances). only be performed by HSM customer •... -
Page 4: Overview

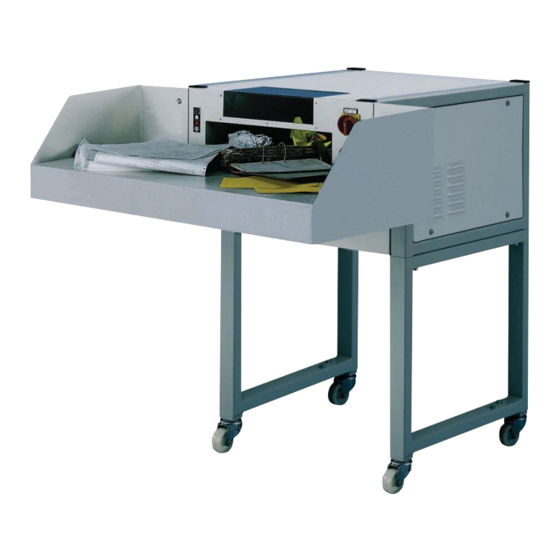

FA 490.1 Overview HSM GmbH + Co. KG Austrasse 1-9 88699 Frickingen / Germany Combination with HSM KP 80 Main switch (only solo-version) Keypad Emergency stop button Loading tray Intake conveyor, paper feed opening Braking swivel castors Nameplate Oiler on particle cut machines... -
Page 5: Dimensions
FA 490.1 Dimensions 2570 1690 1060 1060 HSM FA 490.1 Combination-version HSM FA 490.1 Stand alone-version 1000 2690 Combination-version 1000 3570 2 x 150 kg 2 x 150 kg Stand alone-version Space requirements for operation and maintenance Load on rollers... -
Page 6: Transportation, Installation
FA 490.1 Transportation, installation • Place the table on the supports. Make sure the oil hose is not bent. Fasten the table above (1) to the • During transport, observe the high centre of gravity of frame. the paper shredder! •... -
Page 7: Operating And Display Elements On The Keypad
FA 490.1 • Insert the connecting screw (5) and the clamp (6) on • Solo machine: the end of the hose and secure the unit on the oiler. Lock the front castors by pressing down the brake le- ver. •... -
Page 8: Start-Up And Inspecting The Safety Devices
FA 490.1 Start-up and inspecting the safety Safety fl ap on the feed belt devices Check that the safety devices are working properly: • At the start of each shift • After any maintenance or repair work Do not start the machine until you have checked the safety devices and found them to be in perfect working order. - Page 9 FA 490.1 Safety switch on the inspection door (only Shredding material stand alone-version) • Press the green start button. The cutting block and feed belt start up. • Place the material to be shredded on the loading tray and then place batches on the Open the inspection door.
-
Page 10: Malfunctions
FA 490.1 Malfunctions Maintenance and care Check the following before calling customer service: Cleaning the cutting block • Is the power plug connected? Strip cut machines: (1 x daily) • Is the shredder switched on? • Is there a paper jam in the shredder? •... - Page 11 FA 490.1 Checking the chain tension Greasing the drive chains and cogs (twice (once every week in the fi rst month, afterwards once per month) yearly) • Switch off the shredder. • Switch off the shredder. • Pull out the power plug.
- Page 12 FA 490.1 Tightening the feed belt Cleaning the shredder: • Switch off the shredder and disconnect the mains The feed belt should not slip when loaded with material. plug. • Switch off the shredder. • When cleaning, only use a soft cloth and a mild soap- water solution.
-
Page 13: Technical Data
EMC directive 2004 / 108 / EC The manufacturer HSM GmbH + Co. KG, Austrasse 1-9, D-88699 Frickingen declares herewith, that the paper shredder (Solo machine) HSM FA 490.1 corresponds with the above mentioned EC Machine Directive including all relevant modifi cations. -
Page 14: Electric Wiring Diagrams
FA 490.1 11 Electric wiring diagrams Legend: =AV: Shredder in switch cabinet +MA: on machine +BF: Keypad Solo 400 V / 50 Hz 0912... - Page 15 FA 490.1 0912...
- Page 16 FA 490.1 0912...
- Page 17 FA 490.1 Combination 400 V / 50 Hz 0912...
- Page 18 FA 490.1 0912...
- Page 19 FA 490.1 0912...
- Page 20 FA 490.1 0912...
