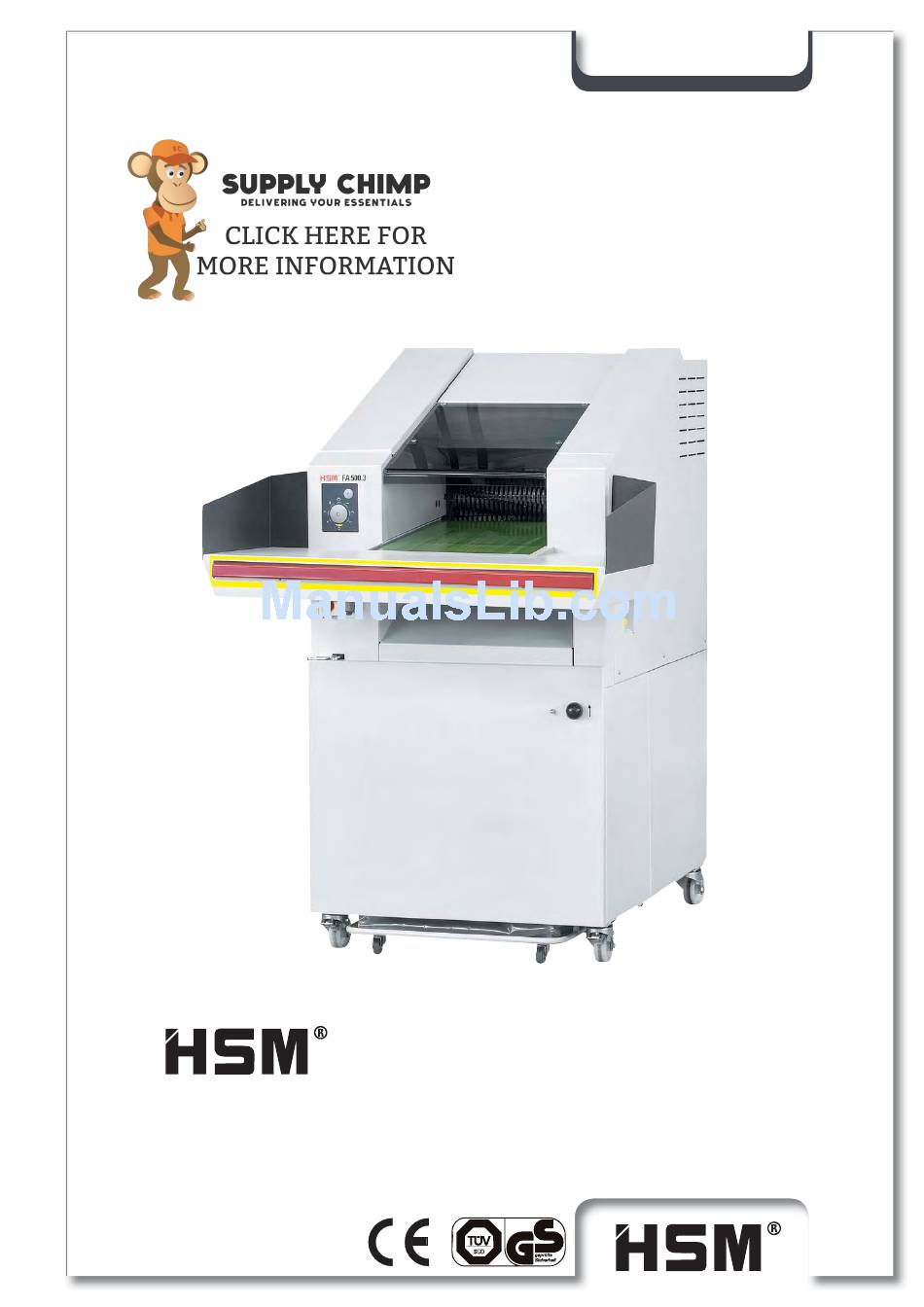

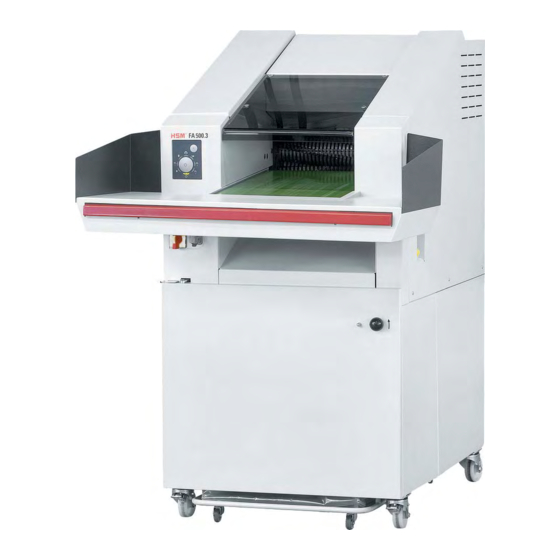

  • Page 1 FA 500.3 OPERATING MANUAL SHREDDER Powerline FA 500.3 english 1.990.999.110 A – 07/2012...

  • Page 2: Proper Use, Warranty

    The document shredder is supplied as a single or com- Do not go near the paper feed open- bined machine (with an HSM baling press). Please ing with long hair, loose clothing, ties, observe the applicable instructions in the operating manual.
  • Page 3 FA 500.3 Overview HSM GmbH + Co. KG Austrasse 1-9 88699 Frickingen / Germany Main switch Safety instructions Operating and display elements Emergency stop switch bar Loading tray Intake conveyor Braking swivel castors Nameplate Oil reservoir opening Option: Discharge conveyor belt for solo ma- chines Powerline FA 500.3...
  • Page 4 FA 500.3 Dimensions 1168 1769 1791,5 HSM FA 500.3 3300 1000 Space requirements for operation and maintenance Powerline FA 500.3 07/2012...

  • Page 5: Transportation, Installation

    The mains impedance of the CEE 3x32 A + N + PE con- nection socket on site must not exceed 0.1517 Ohm. This must be checked by a qualifi ed electrician. • Insert the machine’s power plug into the connection socket. Notice: Extension cables are not permitted. Powerline FA 500.3 07/2012...
  • Page 6 The plate (3) was only installed as a transport lock. Remove the plate by undoing the bolted joints (4). Complete this task from the inside of the docu- ment shredder. Push the conveyor belt onto the docu- ment shredder. Powerline FA 500.3 07/2012...

  • Page 7: Operating And Display Elements

    20 cm of plastic foil below the brackets (1). If any defect arises during operation stop the machine • Push in the waste trolley and close the front door. immediately and make sure it is corrected. Powerline FA 500.3 07/2012...
  • Page 8 Press the emergency stop switch bar while the machine is running. The shredder must switch off immediately. The cutting block and the feed belt must stop. The machine can only be switched on again once you have pulled out the switch bar. Powerline FA 500.3 07/2012...
  • Page 9 • Pull the waste trolley out and change the cut material sack. • Push the trolley back in and start the shredder again by pressing the start button. Powerline FA 500.3 07/2012...
  • Page 10 Note: The shredder remains operational even be cleared even if the machine has been re- when the oil reservoir is empty. started and the cutting units must be started up again by pressing the start button. Powerline FA 500.3 07/2012...

  • Page 11: Maintenance And Care

    Take out the Allen screws (2). Dirt drawer on the discharge conveyor belt Empty the drawer on the discharge conveyor belt regularly if your document shredder is equipped with this type of conveyor belt (op- tional extra). Powerline FA 500.3 07/2012...

  • Page 12: Scope Of Supply, Accessories

    As the manufacturer, • Loosen the lock nuts (2) of the tensioning bolts (3). HSM would be glad to advise you on the disposal of your • Tighten the feed belt evenly using the tensioning old machine.

  • Page 13: Technical Data

    Volume of the shredded paper container 2 x 265 l EC declaration of conformity The manufacturer HSM GmbH + Co. KG, Austrasse 1 - 9, D-88699 Frickingen hereby declares that the machine, referred to here as document shredder HSM FA 500.3...
