- Page 1 LevelOne FSW-2205TX FSW-2208TX 5/8Port 10/100Mbps Internal Power SOHO Switch User's Manual (Version 1.0)
-
Page 2: Table Of Contents
ABLE OF ONTENTS Overview ...................3 Features ..................3 User Guide................5 HARDWARE DESCRIPTION ............5 The Top View ................. 5 The Rear View ................6 HARDWARE INSTALLATION............7 Basic Installation ................7 ................7 NWAY Process Sample Application ..............9 Technical Specifications............ 10... -
Page 3: Overview
Overview Thanks choosing LevelOne FSW-2205/2208TX 5/8Port 10/100Mbps Internal Power SOHO Switch. It is the smallest switch with internal power supply around the world. The switches are designed to be suitable for integrating both 10BASE-T and 100BASE-TX networking circumstance with cabling UTP (Unshielded Twisted-Pair) connection in Small/Medium Business (SMB) and Small Office/Home Office (SOHO) environment. - Page 4 placement and power cord arrangement Ø Each port with non-blocking wire speed forwarding performance. Ø Each port support flow control and back-pressure. Ø Small size and Plug-and-Play solution for SOHO application Ø FCC Part15 Class B, CE EN55022 Class B, VCCI Class B...
-
Page 5: User Guide

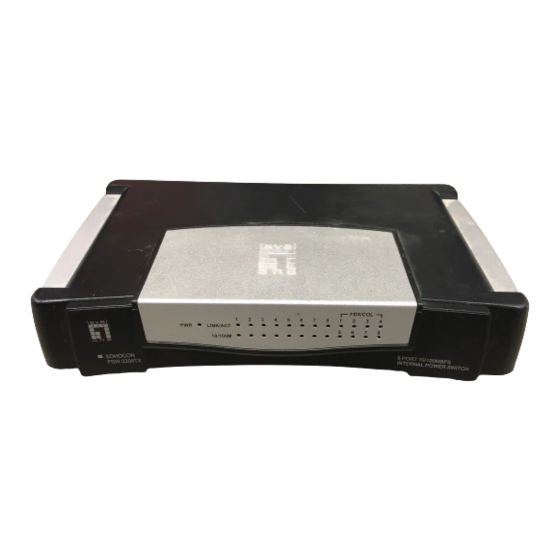

The Top View LevelOne FSW-2205 5Port 10/100Mbps Internal Power SOHO Switch LevelOne FSW-2208TX 8Port 10/100Mbps Internal Power SOHO Switch The LED indicators will help you monitor the status of each port and connected segment. The functions of the LEDs indicators are... -
Page 6: The Rear View
LED Indicators Color Description Power Green ON: Power On OFF: Power Off 10/100M Speed Green ON: Link at 100Mbps OFF: Link at 10Mbps or no link Link/Activity Green ON: Good link on the port Blinking: The port is receiving/transmitting data OFF: No Link is occurring on the port Full-Duplex/Collision Amber ON: Full-duplex mode... -
Page 7: Hardware Installation
HARDWARE INSTALLATION A. Basic Installation Place LevelOne 5/8Port 10/100Mbps Internal Power SOHO Switch on a smooth surface. Connect the power cord to the LevelOne 5/8Port 10/100Mbps Internal Power SOHO Switch. Connect server, workstation or PC to your 5 -port/8-port Switch using standard RJ-45 Ethernet cable. - Page 8 10Base-T Full Duplex (20Mbps) 10base-T Half Duplex (10Mbps) Each port with NWAY capability, support Half/Full Duplex function. ? Attention: The cable distance between the LevelOne FSW-2205/2208TX 5/8Port 10/100Mbps Internal Power SOHO Switch and hub/server should not exceed 100 meters. Make sure the wiring is correct. In 10Mbps operation, Category 3/4/5 cable can be used for connection.
-
Page 9: Sample Application
Sample Application The optimal application for the LevelOne 5/8Port 10/100Mbps Internal Power SOHO Switch is as a “bridge” joining 100Mbps and 10Mbps network segments. The following figure illustrates the application. Scenario I: Scenario II: Note: LevelOne FSW-2205/2208TX 5/8Port 10/100Mbps Internal Power SOHO Switch supports auto-crossover (auto MDI/MDI-X) function. -
Page 10: Technical Specifications
Up to 100m (328 ft) 100BASE-TX 2-pair UTP/STP Cat. 5 or higher. Up to 100m (328 ft) Packet Forwarding Rate 10Mbps:14880pps 100Mbps:148810pps MAC Address FSW-2205TX 2K entries FSW-2208TX 4K entries Packet Buffer memory FSW-2205TX Built-in 128 Kbytes FSW-2208TX Built-in 256 Kbytes Modes...
