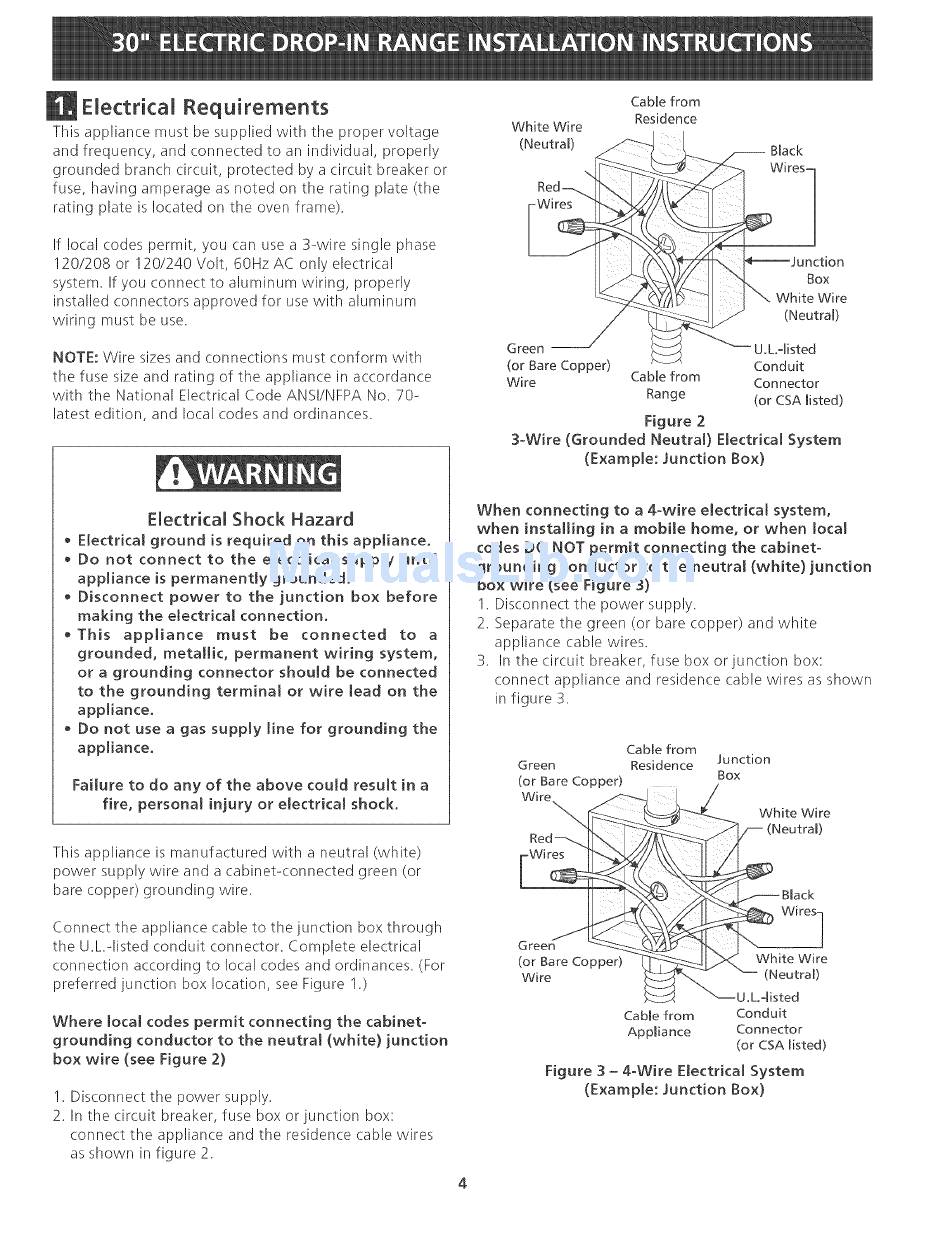

Electrical Requirements - Frigidaire FFED3025LBC Installation Instructions Manual

30" electric drop-in range
Hide thumbs

Advertisement

Electrical
Requirements
This appliance must be supplied with the proper voltage
and frequency, and connected to an individual, properly
grounded branch circuit, protected by a circuit breaker or
fuse, having amperage as noted on the rating plate (the
rating plate is located on the oven frame).
If local codes permit, you (:an use a 3-wire single phase
120/208 or 120/240 Volt, 60Hz AC only electrical
system. If you connect to aluminum wiring, properly
installed connectors approved for use with aluminum
wiring must be use.
NOTE: Wire sizes and connections must conform with
the fuse size and rating of tile appliance in accordance
with the National Electrical Code ANSI/NFPA No. 70-
latest edition, and local codes and ordinances.
Electrical
Shock Hazard
• E[ectrkal
ground
is required
on this appliance,
• Do not
connect
to the electrical
supply
until
appliance
is permanently
grounded.
• Disconnect
power
to the junction
box before
making
the etectrka[
connection.
• This
appliance
must
be
connected
to
a
grounded,
metallic,
permanent
wiring
system,
or a grounding
connector
should
be connected
to the grounding
terminal
or wire
lead on the
appliance.
• Do not use a gas supply
line for grounding
the
appliance.
Failure
to do any of the above
could
result
in a
fire, personal
injury
or electrical
shock.
This appliance is manufactured with a neutral (white)
power supply wire and a cabinet-connected
green (or
bare copper) grounding wire.
Connect the appliance cable to the junction box through
the U.L.qisted conduit connector. Complete electrical
connection according to local codes and ordinances. (For
preferred junction box location, see Figure 1.)
Where
local codes
permit
connecting
the cabinet-
grounding
conductor
to the neutral
(white)
junction
box wire (see Figure 2)
1. Disconnect tile power supply.
2. In the circuit breaker, fuse box or junction box:
connect the appliance and the residence cable wires
as shown in figure 2.
White WEre
(Neutral)
Cable
from
Residence
Black
Wires]
)n
Box
Wire
(Neutral)
Green --
U,L-listed
(or Bare Copper)
Conduit
Wire
Cable from
Connector
Range
(or CSA listed)
Figure
2
3-Wire
(Grounded
Neutral}
Electrical
System
(Example:
Junction
Box)
When connecting
to a 4-wire electrical
system,
when
installing
in a mobile
home,
or when
local
codes DO NOT permit connecting
the cabinet-
grounding
conductor
to the neutral
(white)
junction
box wire (see Figure 3)
1. Disconnect the power supply.
2. Separate tile green (or bare copper) and white
appliance cable wires.
3. In the circuit breaker, fuse box or junction box:
connect appliance and residence cable wires as shown
in figure 3.
Cable from
Green
Residence
Junction
(or Bare Copper)
Box
Wm
White
Wire
Green
(or Bare Copper)
Wire
Cable from
Appliance
White
Wire
(Neutral)
U.L.qisted
Conduit
Connector
(or CSA listed)
Figure 3 - 4-Wire Electrical
System
(Example:
Junction
Box)
