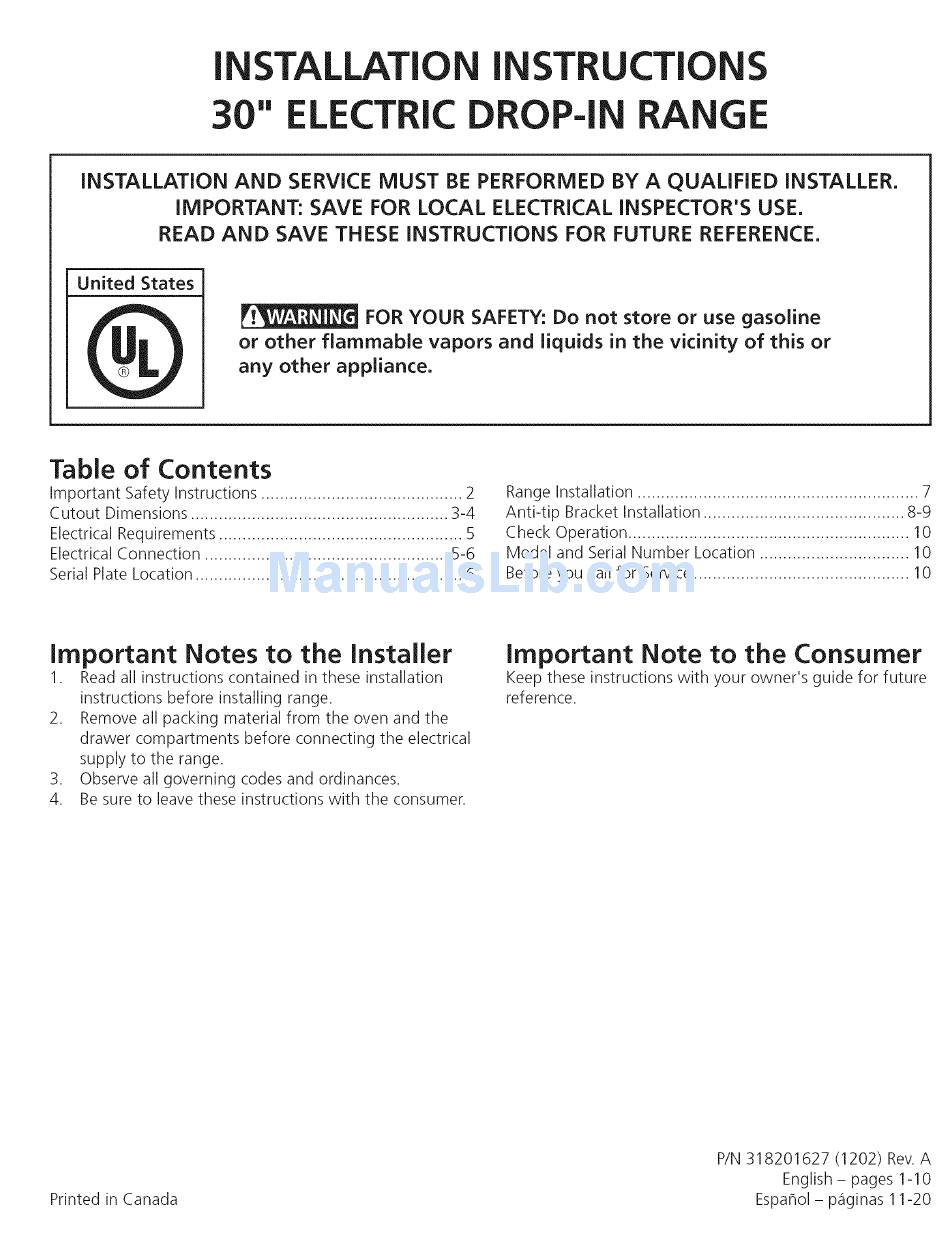

iNSTALLATiON iNSTRUCTiONS
30" ELECTRIC DROP-IN RANGE
iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED
iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS
FOR FUTURE REFERENCE.
United
States
FOR YOUR
SAFETY:
Do not store
or use gasoline
or other
flammable
vapors
and
liquids
in the
vicinity
of this
or
any
other
appliance.
Table of Contents
Important Safety Instructions ...........................................
2
Cutout Dimensions .......................................................
3-4
Electrical Requirements ....................................................
5
Electrical Connection ....................................................
5-6
Serial Plate Location .........................................................
6
Range Installation ............................................................
7
Anti-tip Bracket Installation ...........................................
8-9
Check Operation ............................................................
10
Model and Serial Number Location ................................
10
Before you call for Service ..............................................
10
Important
Notes to the Installer
1.
Read all instructions contained in these installation
instructions before installing range.
2.
Remove all packing material from the oven and the
drawer compartments before connecting the electrical
supply to the range.
3.
Observe all governing codes and ordinances.
4.
Be sure to leave these instructions with the consumer.
Important
Note to the Consumer
Keep these instructions with your owner's guide for future
reference.
Printed in Canada
P/N 318201627 (1202) Rev.A
English - pages 1-10
