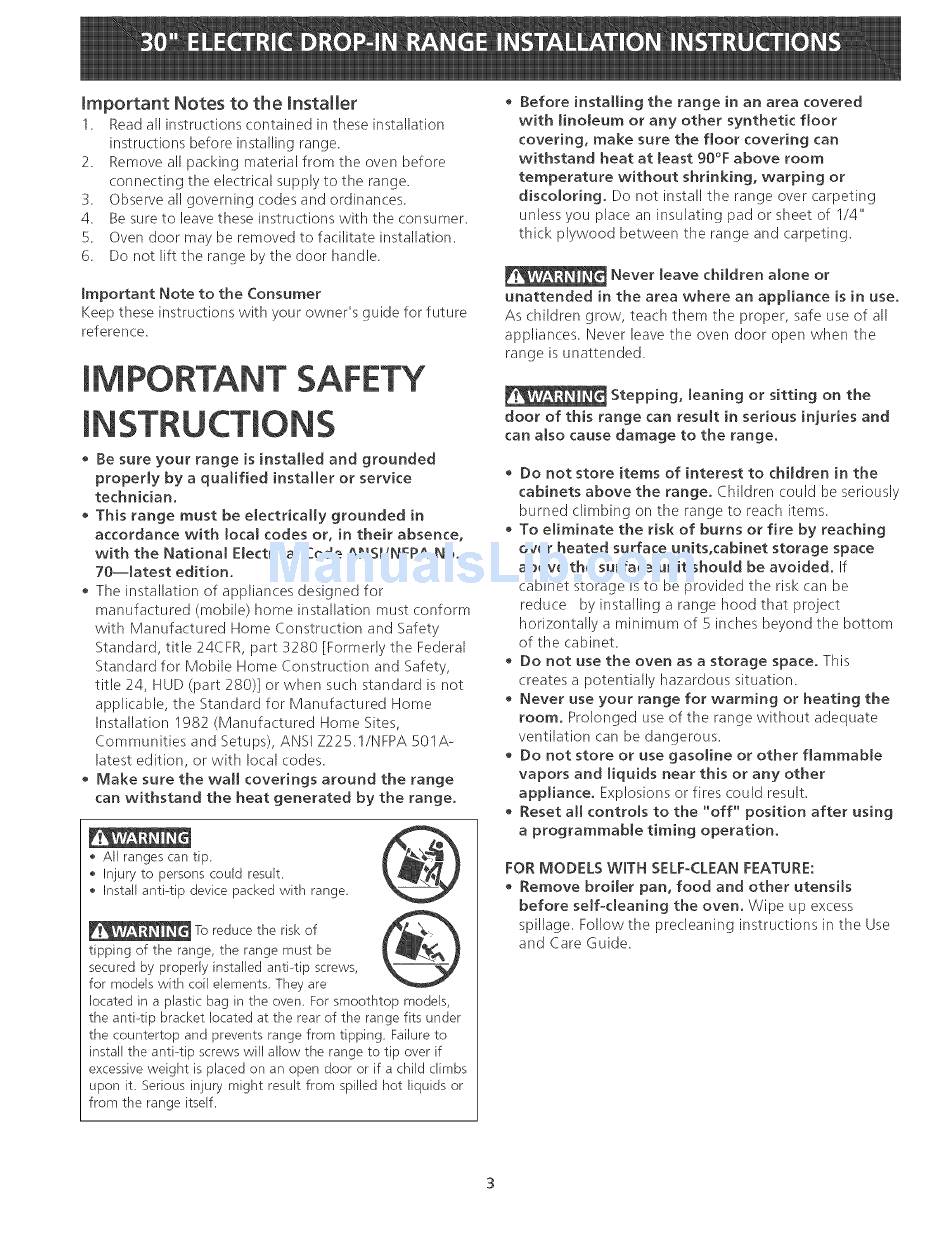

30" electric drop-in range
Hide thumbs

Advertisement

Important Notes to the Installer
1. Read allinstructions contained i nthese installation
instructions before installing r ange.
2. Remove a llpacking material fromtheovenbefore
connecting theelectrical supply t o therange,
3. Observe allgoverning c odes a ndordinances,
4. Besure to leave these instructions withtheconsumer.
5. Oven doormay beremoved t o facilitate installation.
6. Donotlift therange bythedoorhandle.
ImportantNoteto the Consumer
Keep these instructions withyourowner's g uide forfuture
reference.
RTANT SAFETY
INSTRU
S
• Be sure your range is installed
and grounded
properly
by a qualified
installer
or service
technician.
This range must be electrically
grounded
in
accordance
with
local codes or, in their absence,
with the National
Electrical Code ANSI/NFPA No.
7B--latest
edition.
The installation of appliances designed for
manufactured (mobile) home installation must conform
with Manufactured
Home Construction and Safety
Standard, title 24CFR, part 3280 [Formerly the Federal
Standard for Mobile Home Construction and Safety,
title 24, HUD (part 280)] or when such standard is not
applicable, the Standard for Manufactured
Home
Installation 1982 (Manufactured Home Sites,
Communities and Setups), ANSI Z225.1/NFPA 501A-
latest edition, or with local codes.
• Make sure the wall coverings around
the range
can withstand
the heat generated
by the range.
All ranges can tip
Injury to persons could result
Install anti4ip
device packed
with range
To reduce the risk of
tipping
of the range, the range must be
secured
by properly, installed
anti-tip
screws,
for models
with coil elements
They are
located
in a plastic bag in the oven, For smoothtop
models,
the anti-tip
bracket
located
at the rear of the range fits under
the countertop
and prevents
range from
tipping
Failure to
install the anti-tip
screws will allow the range to tip over if
excessive weight
is placed on an open
door or if a child climbs
upon
it
Serious injury, might
result from
spilled hot liquids
or
from the range itself,
• Before installing
the range in an area covered
with linoleum
or any other synthetic
floor
covering,
make sure the floor covering
can
withstand
heat at least 90°F above room
temperature
without
shrinking,
warping
or
discoJoring.
Do not install the range over carpeting
unless you place an insulating pad or sheet of I/4"
thick plywood between the range and carpeting.
Never leave children
alone or
unattended
in the area where an appliance
is in use.
As children grow, teach them the proper, safe use of all
appliances. Never leave tile oven door open when the
range is unattended.
Stepping,
leaning
or sitting
on the
door
of this
range
can result
in serious
injuries
and
can atso cause damage
to the range.
Do not store items of interest
to children
in the
cabinets above the range. Children could be seriously
burned climbing on the range to reach items.
To eliminate
the risk of burns or fire by reaching
over heated surface units,cabinet
storage space
above the surface unit should be avoided.
If
cabinet storage is to be provided the risk can be
reduce
by installing a range hood that project
horizontally a minimum of 5 inches beyond the bottom
of the cabinet.
• Do not use the oven as a storage space. This
creates a potentially hazardous situation.
• Never use your range for warming
or heating
the
room. Prolonged use of tile range without adequate
ventilation can be dangerous.
• Do not store or use gasoline
or other flammable
vapors and tiquids near this or any other
appliance.
Explosions or fires could result.
Reset all controls
to the "off"
position
after using
a programmable
timing
operation.
FOR MODELS WITH SELF-CLEAN FEATURE:
Remove broiler
pan, food and other utensils
before self-cleaning
the oven. Wipe up excess
spillage. Follow the precleaning instructions in the Use
and Care Guide.
