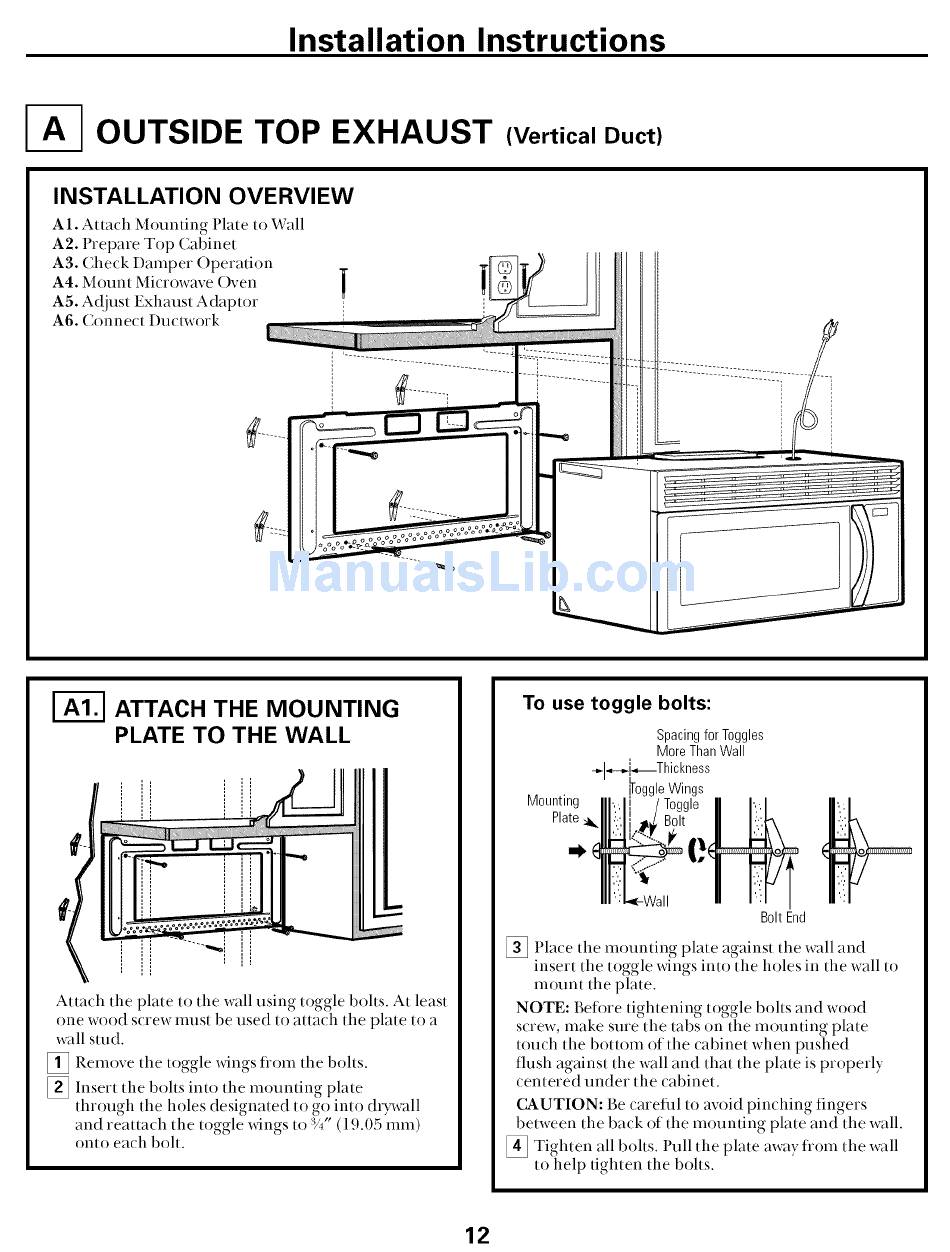

Installation
Instructions
OUTSIDE TOP EXHAUST
(Vertical
Duct)
INSTALLATION
OVERVIEW
A 1. Attach Mounting
Plate to Wall
A2. Prepare
Top Cabinet
A3. Check Damper Operation
A4. Mount Microwave Oven
A5. Adjust Exhaust Adaptor
A6. Connect Duc/work
I-_
ATTACH THE MOUNTING
PLATE TO THE WALL
_=
\
Attach the plate to tile wall using toggle bolts. At least
one wood screw must be used to attach the plate to a
wall stud.
[]
Remove tile toggle wings flom the bohs.
[]
Insert the bolts into the mounting
plate
through
tile holes designated
to go into (h)_vall
and reattadl
the toggle wings to ¾" (19.05 ram)
onto emh bolt.
To use toggle
bolts:
Spacing f orToggles
MoreThan Wall
+l..-.[.--Th
ckness
Mounting
Plate
Bolt End
[]
Place tile mounting
plate against the wall and
insert tile toggle _dngs into the holes in the wall to
I_lount the plate.
NOTE: Befine tightening
toggle bohs and wood
screw, make sure the tabs on the mounting
plate
touch the bottom of the cabinet when pushed
flush against the wall and that the plate is properly
centered
under
the cabinet.
CAUTION:
Be careflfl to avoid pinching
fingers
between the back of the mounting
plate and the wall.
[]
Tighten
all bolts. Pull the plate away flom the wall
to help tighten the bolts.
12
