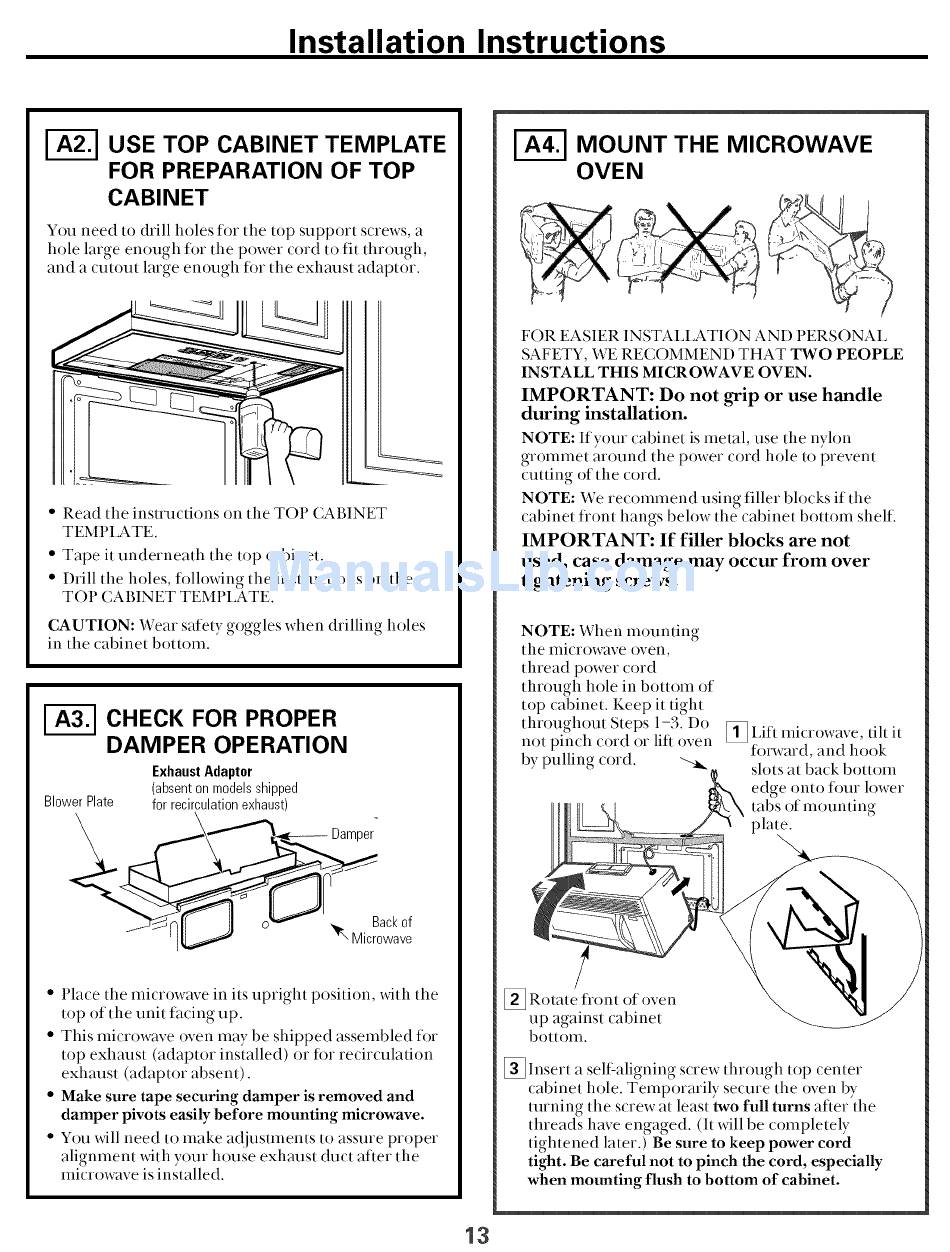

Installation
Instructions
USE TOP CABINET TEMPLATE
FOR PREPARATION
OF TOP
CABINET
You need
to drill holes for the top support
screws, a
hole large enougll
for tile power
cord
to fit through,
and a cutout
large enougll
for tile exhaust
adaptor.
" Read tile instructions
on tile TOP CABINET
TEMPI ATE.
• Tape it underneath
the top cabinet.
• Drill tile holes, following tile instructions
on tile
TOP CABINET TEMPI,ATE.
CAUTION:
Wear satety goggles when drilling holes
in the cabinet bottom.
CHECK FOR PROPER
DAMPER OPERATION
BlowerPlate
Exhaust
Adaptor
(absent on models shipped
for recirculation exhaust)
_,,
Backof
Microwave
• Place tile microwave in its upright
position, with tile
top of tile unit thcing up.
• This microwave
oven may be shipped
assembled
tor
top exhaust
(adaptor
installed)
or tor recirculation
exhaust
(adaptor
absent).
• Make sure tape securing damper
is removed
and
damper pivots easily before mounting
microwave.
" You xdll need to make adjustments
to assure proper
alignment
_dth your house exhaust
duct after tile
microwave is installed.
MOUNT
THE MICROWAVE
OVEN
FOR EASIER INSTAIJATION
AND PERSONAI,
SAFETY, WE RE( OMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE
OVEN.
IMPORTANT:
Do not
grip
or use handle
during
installation.
NOTE: If your cabinet is metal, use the nylon
grommet
around
the power cord hole to prevent
cutting of tile cord.
NOTE: We recommend
using fillet blocks if the
cabinet fiont hangs below the cabinet bottom
shell
IMPORTANT:
If filler
blocks
are not
used,
case
damage
may
occur
from
over
tightening
screws.
NOTE: When mounting
tile
ulicI'OWaVe
oven,
thread power cord
through
hole in bottom
of
top cabinet. Keep it tight
throughout
Steps 1-3. Do
[] IJft inicrowave,
tilt it
not pincll cord or lift oven
by pulling (ord.
"--
fot_vard, and hook
slots at back bottom
edge onto Ibm lower
tabs of
mounting
plate.
13
_
Rotate flont of oven
up against cabinet
bottom.
[] Insert a self aligning screw through
top center
cabinet hole. Temporarily
secure the oven by
turning the screw at least two full turns after the
threads have engaged.
(It will be completely
tightened
later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, especially
when mounting
flush to bottom
of cabinet.
