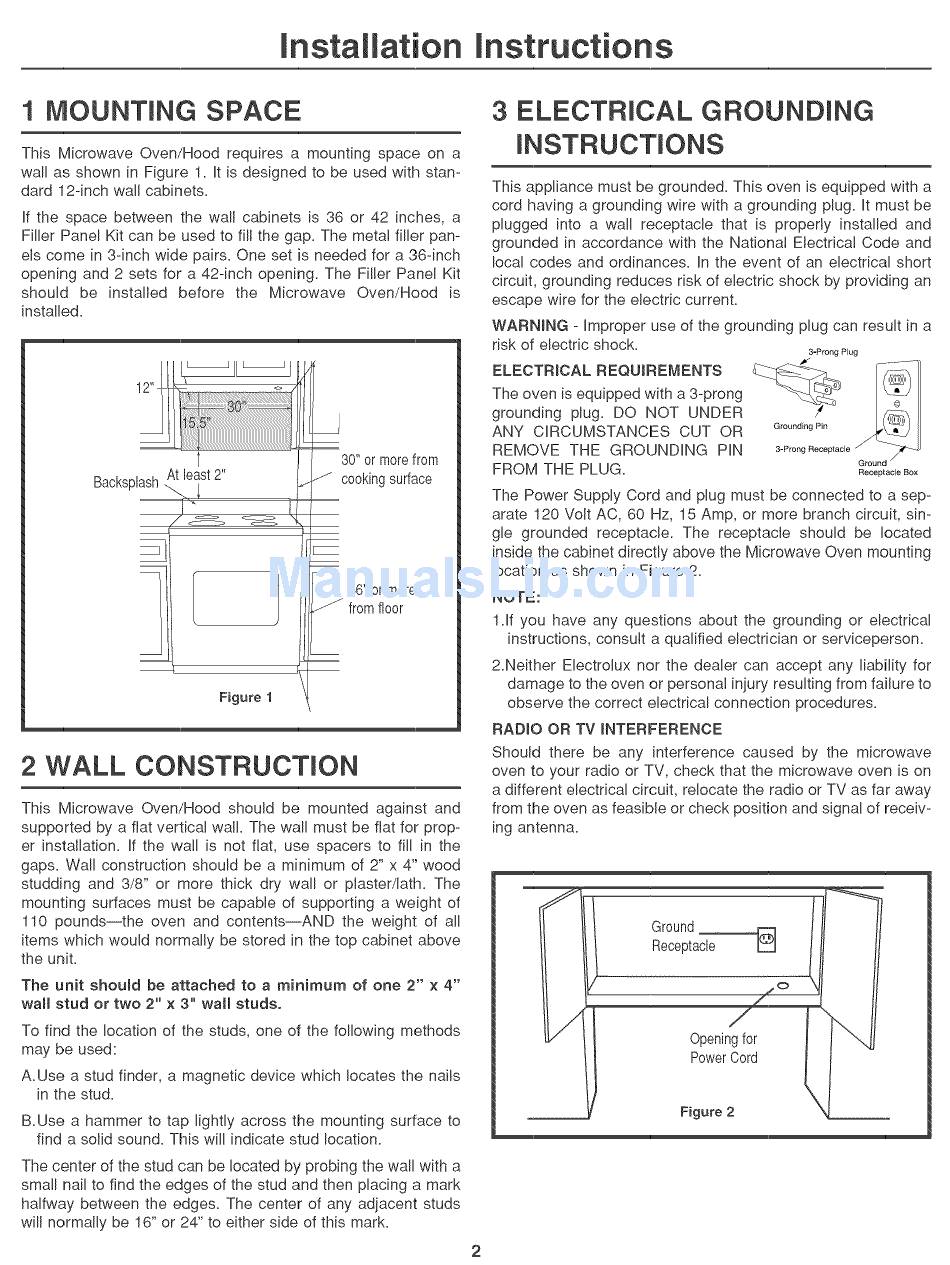

mnsta ation
1 MOUNTING
SPACE
This Microwave
Oven/Hood
requires a mounting space on a
wall as shown in Figure 1. It is designed to be used with stan-
dard 12-inch wail cabinets.
If the space between the wall cabinets is 36 or 42 inches, a
Filler Panel Kit can be used to fill the gap. The meta! filler pan-
els come in 3-inch wide pairs. One set is needed for a 36-inch
opening and 2 sets for a 42-inch opening. The Filler Panel Kit
should
be installed
before
the Microwave
Oven/Hood
is
installed.
H
iliiiii i i!iliiiiiiiil
_
I If:!S!;i_,ilillillillillillillillillillillillillillillillilli_
Backsplash At least2"
=
30" or morefrom
J
cookingsurface
66" or more
J
from floor
Figure I
2 WALL CONSTRUCTION
This Microwave
Oven/Hood
should be mounted against and
supported by a flat vertical wall. The wall must be flat for prop-
er installation.
If the wall is not flat, use spacers to fill in the
gaps. Wall construction
should be a minimum of 2" x 4" wood
studding and 3/8" or more thick dry wall or piaster/lath.
The
mounting surfaces must be capable of supporting a weight of
110 poundslthe
oven and contents--AND
the weight of all
items which would normally be stored in the top cabinet above
the unit.
The unit shoumd be attached
to a minimum
of one 2" x 4"
wall stud or two 2" x 3"' wall studs.
To find the location of the studs, one of the following methods
may be used:
A.Use a stud finder, a magnetic device which locates the nails
in the stud.
B.Use a hammer to tap lightly across the mounting surface to
find a solid sound. This will indicate stud location.
The center of the stud can be !ocated by probing the wall with a
small nail to find the edges of the stud and then placing a mark
halfway between the edges. The center of any adjacent studs
will normally be 16" or 24" to either side of this mark.
3 ELECTRICAL
GROUNDmNG
This appliance must be grounded. This oven is equipped with a
cord having a grounding wire with a grounding plug. It must be
plugged
into a wail receptacle
that is properly installed
and
grounded in accordance
with the National Electrical Code and
local codes and ordinances.
In the event of an electrical short
circuit, grounding
reduces risk of electric shock by providing an
escape wire for the electric current.
WARNING - Improper use of the grounding plug can result in a
risk of electric shock,
3-Prong
Plug
The oven is equipped with a 3-prong
-
_;_
grounding
plug. DO NOT UNDER
/...-r_
ANY CIRCUMSTANCES
CUT OR
G,o_0diogp,_
REMOVE
THE GROUNDING
PiN
3-ProngReceptacle
/
Ground
FROM THE PLUG,
Roc_p_loBo*
The Power Supply Cord and plug must be connected to a sep-
arate 120 Volt AC, 60 Hz, 15 Amp, or more branch circuit, sin-
gle grounded
receptacle.
The receptacle
should
be located
inside the cabinet directly above the Microwave Oven mounting
location as shown in Figure 2.
NOTE:
1.If you have any questions about the grounding or electrical
instructions, consult a qualified electrician or serviceperson.
2.Neither ElectroIux nor the dealer can accept any liability for
damage to the oven or personal iniury resulting from failure to
observe the correct electrical connection procedures.
RADIO OR TV _NTERFERENOE
Should there be any interference
caused by the microwave
oven to your radio or TV, check that the microwave oven is on
a different electrical circuit, relocate the radio or TV as far away
from the oven as feasible or check position and signal of receiv-
ing antenna.
Ground
Receptacle
Opening for
Power C ord
Figure 2
