Frigidaire 316495062 Installation Instructions Manual

Frigidaire over the range microwave oven installation instructions



Over The Range Microwave Oven


Save these instructions for local
inspector's use.
Observe all governing codes and
instructions with the Consumer.
future reference.
– Installation of this appliance requires
basic mechanical and electrical skills.


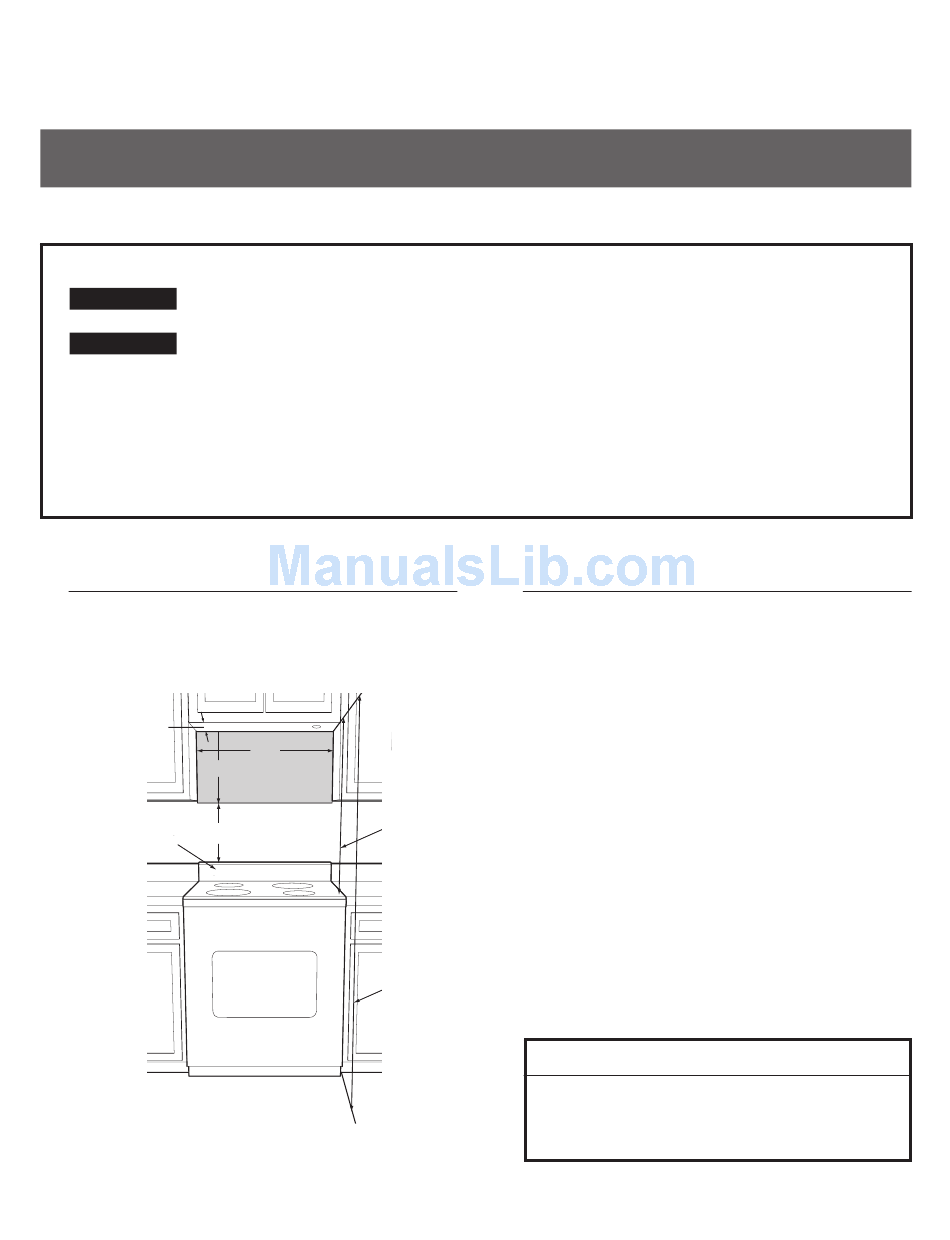

This Microwave Oven/Hood requires a mounting space on
a wall as shown in Figure 1. It is designed to be used with
standard 12" wall cabinets.
At least 2"
As a guide to installation, see page 8 for Mounting
Template Information.
Read these instructions completely and carefully.
– Be sure to leave these
– Keep these instructions for
30" or more
from cooking
66" or more
from floor
Figure 1
Proper installation is the responsibility of the installer.
Product failure due to improper installation is not covered
under the Warranty.
Please read all instructions thoroughly before installing
the Over the Range Microwave Oven. Two people are
recommended to install this product.
If a new electrical outlet is required, its installation should be
completed by a qualifi ed electrician before the Microwave
Oven is installed. See 3 ELECTRICAL GROUNDING


This Microwave Oven/Hood should be mounted against and
supported by a fl at vertical wall. The wall must be fl at for
proper installation. If the wall is not fl at, use spacers to fi ll in
the gaps. Wall construction should be a minimum of 2" x 4"
wood studding and ³⁄
" or more thick dry wall or plaster/lath.
The mounting surfaces must be capable of supporting weight
of 110 pounds—the oven and contents—AND the weight of
all items which would normally be stored in the top cabinet
above the unit.
The unit should be attached to a minimum of one 2" x 4"
wall stud or two 2" x 3" wall studs.
To fi nd the location of the studs, one of the following methods
may be used:
A. Use a stud finder, a magnetic device which locates the
nails in the stud.
B. Use a hammer to tap lightly across the mounting surface
to find a solid sound. This will indicate stud location.
The center of the stud can be located by probing the wall with
a small nail to fi nd the edges of the stud and then placing a
mark halfway between the edges. The center of any adjacent
studs will normally be 16" or 24" to either side of this mark.
For customers in the United States and Canada
United States: 1-800-944-9044
Canada: 1-800-265-8352
February 2011
Printed in Thailand
