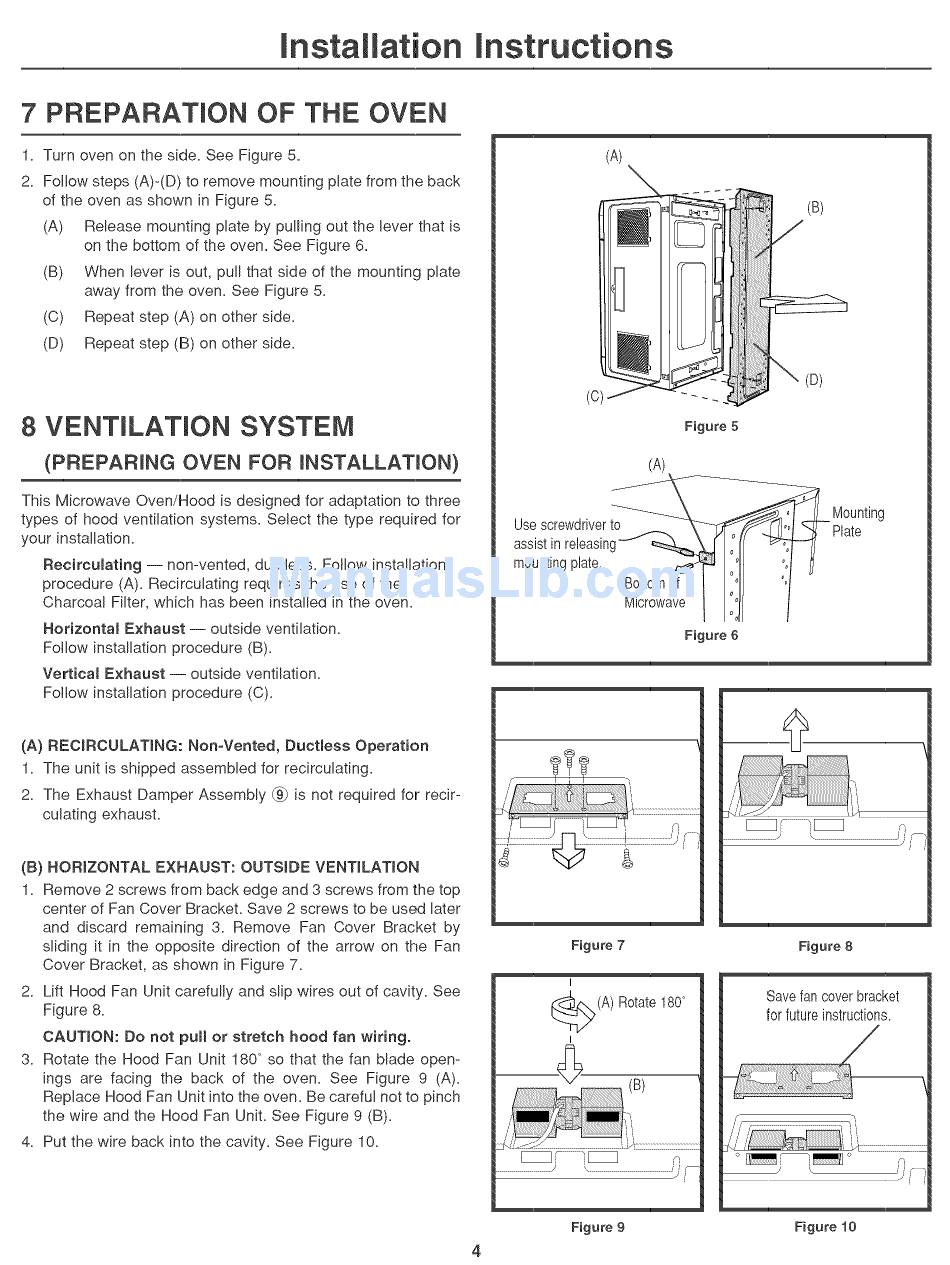

7 PREPARATION
OF THE OVEN
1. Turn oven on the side. See Figure 5.
2. Follow steps (A)-(D) to remove mounting plate from the back
of the oven as shown in Figure 5.
(A)
Release mounting plate by pulling out the lever that is
on the bottom of the oven. See Figure 6.
(B)
When lever is out, pull that side of the mounting plate
away from the oven. See Figure 5.
(C)
Repeat step (A) on other side.
(D)
Repeat step (B) on other side.
8 VENTiLATiON
SYSTEM
(PREPARING
OVEN FOR iNSTALLATiON}
This Microwave Oven/Hood is designed for adaptation to three
types of hood ventilation systems. Select the type required for
your installation.
Recirculating
-- non-vented, ductless. Follow installation
procedure (A). Recirculating
requires the use of the
Charcoal Filter, which has been installed in the oven.
Horizontal
Exhaust -- outside ventilation.
Follow installation procedure (B).
Vertical
Exhaust -- outside ventilation.
Follow installation procedure (C).
(A} RECIRCULATtNG:
Non-Vented,
Ductmess Operation
1. The unit is shipped assembled for recirculating.
2. The Exhaust Damper Assembly _
is not required for recir-
culating exhaust.
(B} HORIZONTAL
EXHAUST:
OUTSIDE VENTILATION
1. Remove 2 screws from back edge and 3 screws from the top
center of Fan Cover Bracket. Save 2 screws to be used later
and discard remaining
3. Remove Fan Cover Bracket by
sliding it in the opposite direction of the arrow on the Fan
Cover Bracket, as shown in Figure 7.
2. Lift Hood Fan Unit carefully and slip wires out of cavity. See
Figure 8.
CAUTION:
Do not pull or stretch
hoed fan wiring.
3. Rotate the Hood Fan Unit 180 ° so that the fan blade open-
ings are facing the back of the oven. See Figure 9 (A).
Replace Hood Fan Unit into the oven. Be careful not to pinch
the wire and the Hood Fan Unit. See Figure 9 (B).
4. Put the wire back into the cavity. See Figure 10.
4
(D)
(A)
_Mounting
Usescrewdriverto
_- _-_rq/,
f _
Plate
assistin releasing _
_
://
mountingplate.
_3._
0°ll
:'I
_
B0ttomof
0°J
"'I
.,crower0 °;I /
Fi ure 6
Figure 7
(A) Rotate180°
I
ii .................
2
.
i _
Figure 9
i
Figure 8
Savefan coverbracket
for futureinstructions.
.
{
Figure 10
