Apexis IP Wireless / Wired Camera User Manual page 34

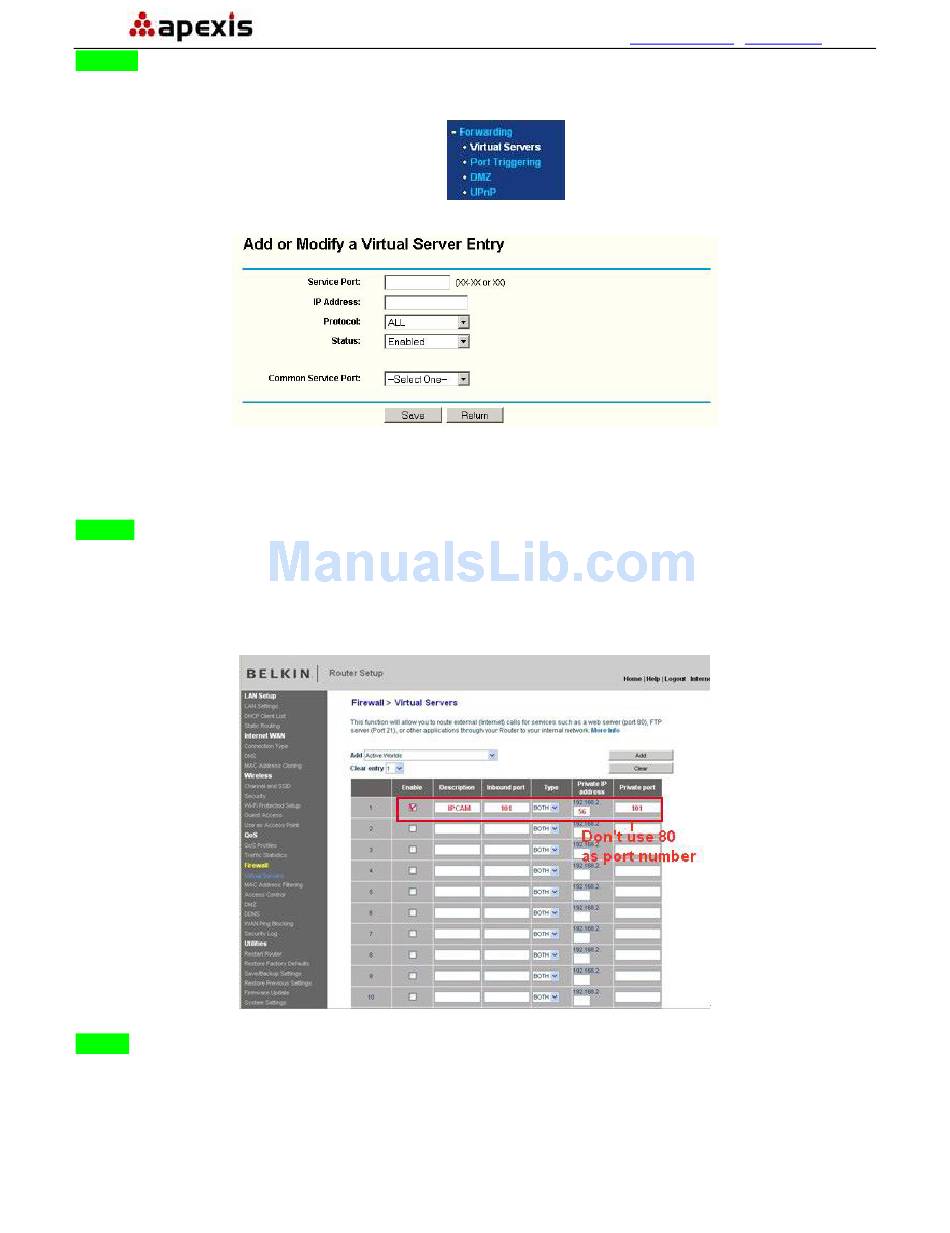

TP-LINK:
1. Login the router.
2. Choose "Forwarding", select "Virtual Servers"
3. Click the Add New button, pop-up below:
Fill the service port (except
NOTE: The port and IP address should be the same as Camera.
BELKIN:
1. Login the router.
2. Choose "Firewall", select "Virtual Servers"
3. Input the port (except
NOTE: The port and IP address should be the same as Camera.
DLINK:
1. Login the router.
2. Choose "Advanced", select "Virtual Servers"
3. Input the port, IP address, Protocol, then click save.
NOTE: The "public port" & "private port" should be the same as camera's port, choose the protocol to be
Shenzhen Apexis Electronic Co., Ltd
More Security, More Convenience
80), IP address of the camera, then click Save
80) and IP address, then click save.
Tel: +86-755-26509025
www.apexis.com.cn / www.apexis.cc
Figure 7.5
Figure 7.6
