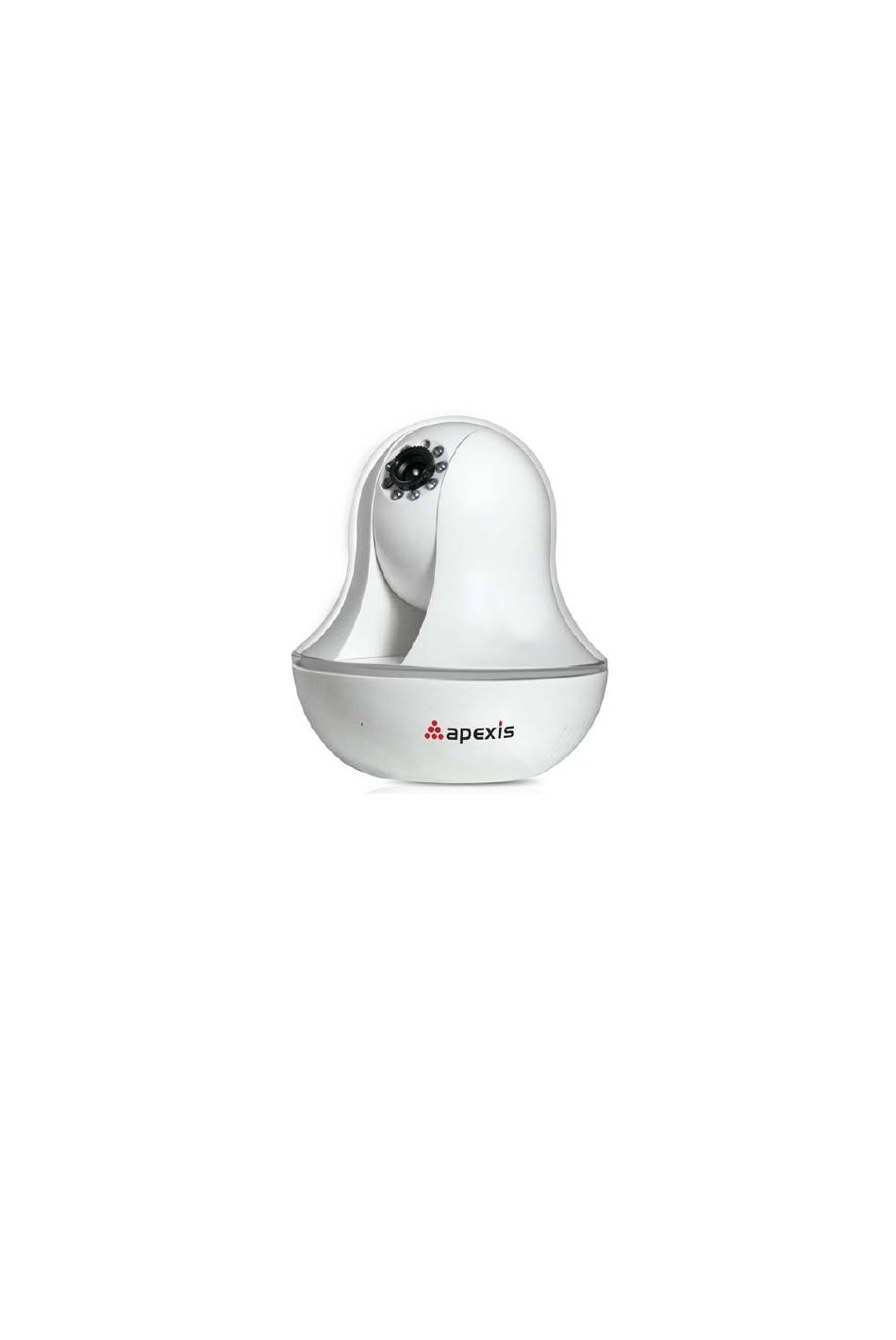

IP Wireless / Wired Camera
REMOTE PAN/TILT ROTATE
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APM-J805-WS and is the answer not in the manual?

Questions and answers

Related Manuals for Apexis APM-J805-WS

Summary of Contents for Apexis APM-J805-WS

  • Page 1 IP Wireless / Wired Camera REMOTE PAN/TILT ROTATE User Manual...

  • Page 2: Table Of Contents

    ) ..................... 50 ERVER AFARI OOGLE ROWSER 3.22 S ..................................51 IGN IN MOBILE PHONE 4. APPENDIX ..............................52 4.1 F ................................52 REQUENTLY SKED UESTIONS 4.2 D ..................................54 EFAULT ARAMETERS Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 3: Welcome

    Untie the pack and check the items contained against the following list: ●IP Camera ●Wi-Fi Antenna X1 (only available for wireless model) ●User Manual ●DC Power Supply X1 ●CD ●Network Cable Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 4 Original Apexis IPCAM have some stickers at the bottom/back, such as MAC address sticker, QC sticker etc. If your camera does not have these stickers, it may be a clone one, clone Apexis IPCAM could not use the original firmware and obtain our good after sale service.

  • Page 5: Pc System Requirements

    Software installation is the key to the successful use of this product. Install the follow software: 1. IP Camera Tool: Open the CD, dbclick “IPCamSetup.exe”, only click next, you will complete the software installation.(Figure1.6/ 1.7/ 1.8) 2. ActiveX: Double click “Appinstall.exe”—“Next”—“Install”—“Finish”. Figure1.5 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 6 More Security, More Convenience www.apexis.com.cn www.apexis.cc Figure1.6 Figure1.7 Figure1.8 After this done, the icon “IP Camera Tool” will be displayed on desktop automatically . Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 7: Software Operation

    3. The IP Cameras installed within LAN do not share the same subnet with the monitoring PC. A prompt as shown in result field (prompt: Subnet doesn’t match, double click to change!). Click the left mouse button to Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025...
  • Page 8 WIFI MAC ID, you can find it from the sticker at the bottom of the camera, if this sticker lost, you can login your WIFI router, check the host status, which will show all the WIFI device connect to this router, you can also find the IPCAM’s WIFI MAC ID there. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 9 (I.e. the first three sections are the same) Subnet Mask: The default subnet mask of the equipment is: 255.255.255.0. You can find the subnet mask from your PC or router. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 10 NOTE: When doing upgrade, please must keep the power on, and the best use wired mode, connect the network cable. 2.1.1.4 Refresh Camera List Refresh camera list manually. 2.1.1.5 Flush Arp Buffer Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 11: Camera Login

    Figure 2.6 The default user name is admin, no password Input the correct user name and password, the Sign In interface will pop-up. There are three models to login (figure 2.7). Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 12: For Ie Browser

    The first time login the camera, maybe get ActiveX prompt as the picture below, please click the prompt and choose Run Add-on, refresh and login the camera again, then will see live video, details as below Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025...
  • Page 13 “ActiveX control and Plug-ins”, all the ActiveX options set to be “Enable”: Especially: Enable: Download unsigned ActiveX controls Enable: Initialize and script ActiveX controls not marked as safe Enable: Run ActiveX controls and plu-ins Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 14 , not green, please change another port number to try. Don’t use port 80, use other port such as 128, 1008 etc. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 15: For Safari, Firefox, Google Browser

    Server Push Mode doesn’t support ActiveX, so some functions are not available, such as Play, Stop, Record, Audio, Talk etc. if you want to use these functions, please use IE browser . Figure 3.3 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 16: For Mobile Phone

    (See 3.11 User Settings, Figure 8.5) 2.7 For Visitor When login as Visitor, you can enter the IP Camera for visitor. Visitor is the lowest level with only some operation available Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 17 Green color, means the device connected from this channel, and it works well. Red color, means the device of this channel is recording Yellow color, means set this channel in multi-device already, but it fails to connect to the main device Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 18 Resolution: Set the resolution to be 160*120/ VGA(640*480)/ QVGA (320*240). (Figure 3.9) NOTE: When doing recording, Rate and Resolution parameter settings is very helpful for getting small size record files, the lower parameter to get the smaller file. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 19 NOTE: For visitor, if you click other menus which visitor don’t have the right to operate it, there will be a pop-up of login interface (Figure 2.6), please input the user name / password for at least 3 times to login again. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025...

  • Page 20: For Operator

    Mirror: Click this icon to see the mirror image. Click again, will back to normal. NOTE: You can choose Reversal and Mirror function when you set up the camera in a special position. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025...
  • Page 21 Double click the right mouse on the live video to enable this function, and you will see a white & transparent arrow on the live video, click left mouse to control direction, totally eight directions are Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 22: For Administrator

    NOTE: For Operator, if you click other menus which operator don’t have the right to operate it, there will be a pop-up of login interface (Figure 2.6), please input the user name / password for at least 3 times to login again. 2.9 For Administrator Details see Settings as Administrator (details3.1-3.22). Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 23: Settings As Administrator

    Click The 2nd Device and click the item in the Device List in Lan, it will fill the Alias, Host, Http Port automatically, then input the correct user name and password, click Add. Set more devices in the same way, after all done, please click Submit. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 24 More Security, More Convenience www.apexis.com.cn www.apexis.cc Figure 4.7 Click Live Video and then select to see four channels, or click to see nine channels. Figure 4.8 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 25 Click Multi-Device, select Multi-Device Settings. Choose the 2nd Device; fill in the 2nd camera’s Alias, Host, Http Port, User, Password by manual, click Add. Set more devices in the same way, after all done, please click Submit. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 26 If you have several cameras, you can use the same DDNS domain name, just set different port number for each different camera. Figure 5.1 Note: Add the other camera in the same way, Click submit to add all of them. Figure 5.2 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 27 Attention: Please must keep the power on during upgrading, and the better use wired mode. Please don’t try upgrade freely, because wrong operation or incorrect upgrade bin file will damage the camera. Figure 5.4 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 28: Network Settings

    3.3 Basic Network Settings Here you can fix the camera’s IP address; means set the static IP address of camera manually. You can also do the same settings from IP Camera Tool. (Figure 2.3) Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 29 1. Control Panel Network Connections Local Area Connections Support Details 2. Find the local connection icon from taskbar, left click it, choose Support Details Figure 5.8 Figure 5.9 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 30: Wireless Lan Settings

    6. If there is encryption, please input the share key, then click “Submit”. (Figure 6.5) 7. Wait about 30 seconds, the camera will reboot, then unplug the network cable. Figure 6.2 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 31 More Security, More Convenience www.apexis.com.cn www.apexis.cc Figure 6.3 Figure 6.4 Figure 6.5 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 32: Adsl Settings

    Attention: If your router doesn’t support UPnP function, it may show error information. So we recommend you do port forwarding manually in your router. (Details see Figure 7.4-7.9) 3.7 DDNS Service Settings Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 33 You have to register an account firstly, keep the user, password, host, then input it. NOTE: Only one DDNS can be chosen, for example, if you use manufacturer’s DDNS, the 3 one won’t work, if use the 3 DDNS, the manufacturer’s one won’t work. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 34 3. Click the Add New button, pop-up below: Figure 7.5 Fill the service port (except 80), IP address of the camera, then click Save NOTE: The port and IP address should be the same as Camera. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 35 After all these 4 steps done, then you can use the DDNS freely, check the DDNS status from the camera as below, and get the link of DDNS for internet view. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 36: System Settings

    3.8 System Settings Figure 8.0 3.8.1 Device Info You can find the information about Device ID, Firmware Version, Embedded Web UI Version, Alias, Alarm Status, DDNS Status, UPnP Status and MSN status.. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 37: Alias Settings

    Set the date and time for your camera. Choose the Clock Time zone of your country. You can choose Sync with NTP Server (Figure 8.3) or Sync with PC Time (Figure 8.4). Figure 8.3 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 38: Users Settings

    Visitor: In this mode, you can only view. (Details 2.7) Operator: You can control the direction of IP Camera and set some parameter. (Details 2.8) Administrator: You can setup the advanced configurations of the IP Camera. (Details3.1-3.22) Figure 8.5 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 39: Ptz Settings

    (2) Non-connected network with more slow-frequency flicker: Twinkle while connect to the internet and more slower when departed (3) Been extinguished: Keep OFF NOTE: It won’t work with this model because this model doesn’t have the network indicator LED. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 40: Backup & Restore

    Browse to load the bin file, then Submit it. Figure 8.9 Record User information, including weekday, date, time, user name, visitor IP address etc. MSN Settings Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 41: Other Settings

    3.15 Other Settings Figure 9.0 Here you can configure some additional functions such as Motion Detection, Alarm, IO Linkage, Schedule, FTP Upload, Alarm Mail Alert, Record Path etc. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 42: Mail Service Settings

    NOTE: Please click Submit firstly before choosing Test. You will see the test result after click Test. Figure 9.2 If it prompts these following errors when you click Test. Please check whether the information you filled in are Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 43: Ftp Service Settings

    FTP Server: If your FTP server is set up in LAN. You can set as Figure 9.3 If you have a FTP server can be accessed from internet. You can set as Figure 9.4 FTP Port: Usually the port is 21 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 44: Alarm Service Settings

    Please check if parameters you filled in are correct or not. The format of image is like 000DC5D008FA (IPCAM) _0_20101115152525_25.jpg Please check if your FTP server supports this format of file name 3.18 Alarm Service Settings Figure 9.6 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 45 After enable motion detect armed, if there is motion triggered, the Alarm Status will turn to Motion Detect Alarm. (Figure 9.8) Figure 9.8 3.18.2 Motion Detect Sensibility You can choose level 1-10; level 10 means the most sensitive, 1 means the least of all. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 46 There are two options for Output Level. (Figure 10.2) High: Choose it, the IO Pins work as a switch which is closed. Low: Choose it, the IO Pins work as a switch which is switching off Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 47: Send Mail On Alarm

    NOTE: The total alarm time is 60 seconds. Figure 10.4 Scheduler Here you can set the camera alarm during the time you set. Choose Scheduler and set the date & time range. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 48 When you enable motion detect and open the camera monitoring page on the PC. If there is an alarm triggered, REC will start automatically for several seconds and save to the PC. New Feature: Start the motion detection compensation and Alarm notification by Http. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 49: Path Settings

    1. User could add the Device IP address to the IE’s ‘Trusted sites’ firstly. The step is: “IE browser→Tool→Internet Proper→Security→Trusted sites→Sites→Add”. 2. You can also run the IE as administrator, input the IP address of the camera manually. (Figure 11.1) Figure 11.1 Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 50: Server Push Mode (For Safari, Firefox, Google Browser)

    Play, Stop, Record, Audio, Talk, Multi-device settings, Path settings functions are controlled by ActiveX, so if you use Safari, Firefox, Google chrome browser, it is impossible to find these options. The other functions are the same as ActiveX Mode (For IE Browser) Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 51: Sign In Mobile Phone

    NOTE: Mobile phone Mode doesn’t support ActiveX. In mobile phone mode, it only supports some easy functions, such as Resolution, Mode, Bright, Contrast, Pan/Tilt control, Snapshot, Reversal, Mirror, IO Linkage functions Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 52: Appendix

    Make sure DHCP is enabled in your router, don’t enable MAC address filter. Make sure that firewall or anti-virus software does not block the camera. You can add the camera as a trusted site in your firewall or anti-virus software. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 53 If you could access the login page in remote place, it indicates that your DDNS settings are correct. You could not see living video but only some undefined characters, it may be the internet speed problems, especially the camera work on Wi-Fi. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...

  • Page 54: Default Parameters

    IP address: dynamic obtain Subnet mask: dynamic obtain Gateway: dynamic obtain DHCP: Disabled DDNS: factory DDNS and third party DDNS Username and password Default administrator username: admin Default administrator password: No password Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 55 256MB or above Display Card 64M or above memory Supported OS Microsoft Windows 98/ME/2000/XP/Vista/7 Browser IE6.0, IE7.0, IE8.0, Firefox, Safari, Google chrome etc Certification CE, FCC, RoHS Warranty Limited 1-year warranty Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 56 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
  • Page 57 1) Cet appareil ne doit pas provoquer d’interférences et 2) Cet appareil doit accepter toutes les interférences, y compris celles pouvant entraîner son dysfonctionnement. Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps. Shenzhen Apexis Electronic Co., Ltd Tel: +86-755-26509025 Fax: +86-755-26509229...
