Airmar B45 Owner's Manual & Installation Instructions

OWNER' S GUIDE

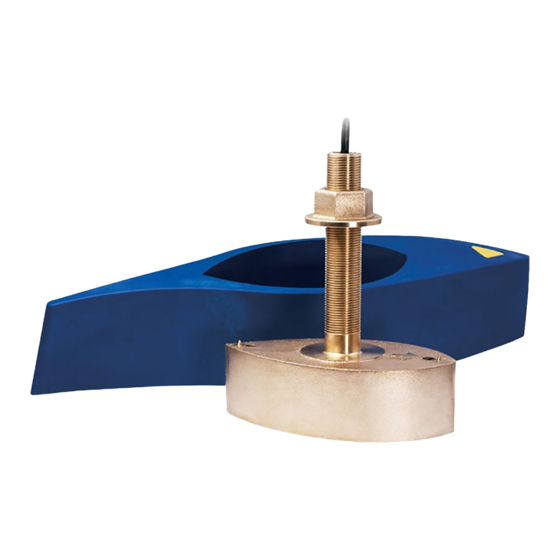

Thru-Hull, Depth with stem
Models: B45, B258, B260, B265LH, B265LM, B271W
SS258, SS260, SS270W, SS505
U.S. Patent No. 7,369,458. UK Patent No. 2 414 077. U.S. Patent Pending
Follow the safety precautions below to reduce the
risk of poor product performance, property
damage, personal injury, and/or death.
WARNING: A High-Performance Fairing must be
installed following the Installation Instructions that
come with the fairing. The High-Performance Fairing
requires an anti-rotation bolt. Failure to install the anti-
rotation bolt may result in the fairing rotating while the
boat is underway. The effect may be violent
movement and loss of steering.
WARNING: Always wear safety goggles and a dust
mask when installing.
WARNING: Immediately check for leaks when the boat
is placed in the water. Do not leave the boat unchecked
for more than three hours. Even a small leak may allow
considerable water to accumulate.
CAUTION: Never mount a bronze transducer in a
metal hull, because electrolytic corrosion will occur.
CAUTION: Stainless steel housing in a metal hull
requires using a Fairing Kit to isolate the stainless
steel transducer from the metal hull. Failure to do so
will cause electrolytic corrosion.
CAUTION: Never install a metal transducer on a
vessel with a positive ground system.
CAUTION: Never pull, carry, or hold the transducer by
the cable as this may sever internal connections.
CAUTION: Never strike the transducer.
CAUTION: Never use solvents. Cleaners, fuel,
sealants, paint, and other products may contain strong
solvents, such as acetone, which attack many
plastics, greatly reducing their strength.
IMPORTANT: Read the instructions completely
before proceeding with the installation. These
instructions supersede any other instructions in your
instrument manual if they differ.
Applications
• Bronze transducer recommended for fiberglass or wood hull only.
• Stainless steel transducer compatible with all hull materials.
Recommended for aluminum hulls to prevent electrolytic corrosion
provided the stainless steel transducer is isolated from the metal hull.
Transducer
& INSTALLATION INSTRUCTIONS
Record the information found on the cable tag for future reference.
Part No.________________Date___________Frequency_________kHz
B45
Identify Your Model
The model name is printed on the cable tag.
Tools & Materials
Safety goggles
Dust mask
Electric drill
Drill bits and hole saws:
Pilot hole
B45, SS505
B258, B271W, SS258
B260, B265LH/LM, SS260, SS270W
Sandpaper
Mild household detergent or weak solvent (such as alcohol)
File (installation in a metal hull)
Angle finder (installation with a fairing)
Band saw (installation with a fairing)
Rasp or power tool (installation with a fairing)
Marine sealant (suitable for below waterline)
Slip-joint pliers
Grommet(s) (some installations)
Cable ties
Water-based anti-fouling paint (mandatory in salt water)
Installation in a cored fiberglass hull: (see page 4)
Drill bits and hole saws for hull interior:
B45, SS505
B258, B271W, SS258
B260, B265LH/LM, SS260, SS270W
Cylinder, wax, tape, and casting epoxy

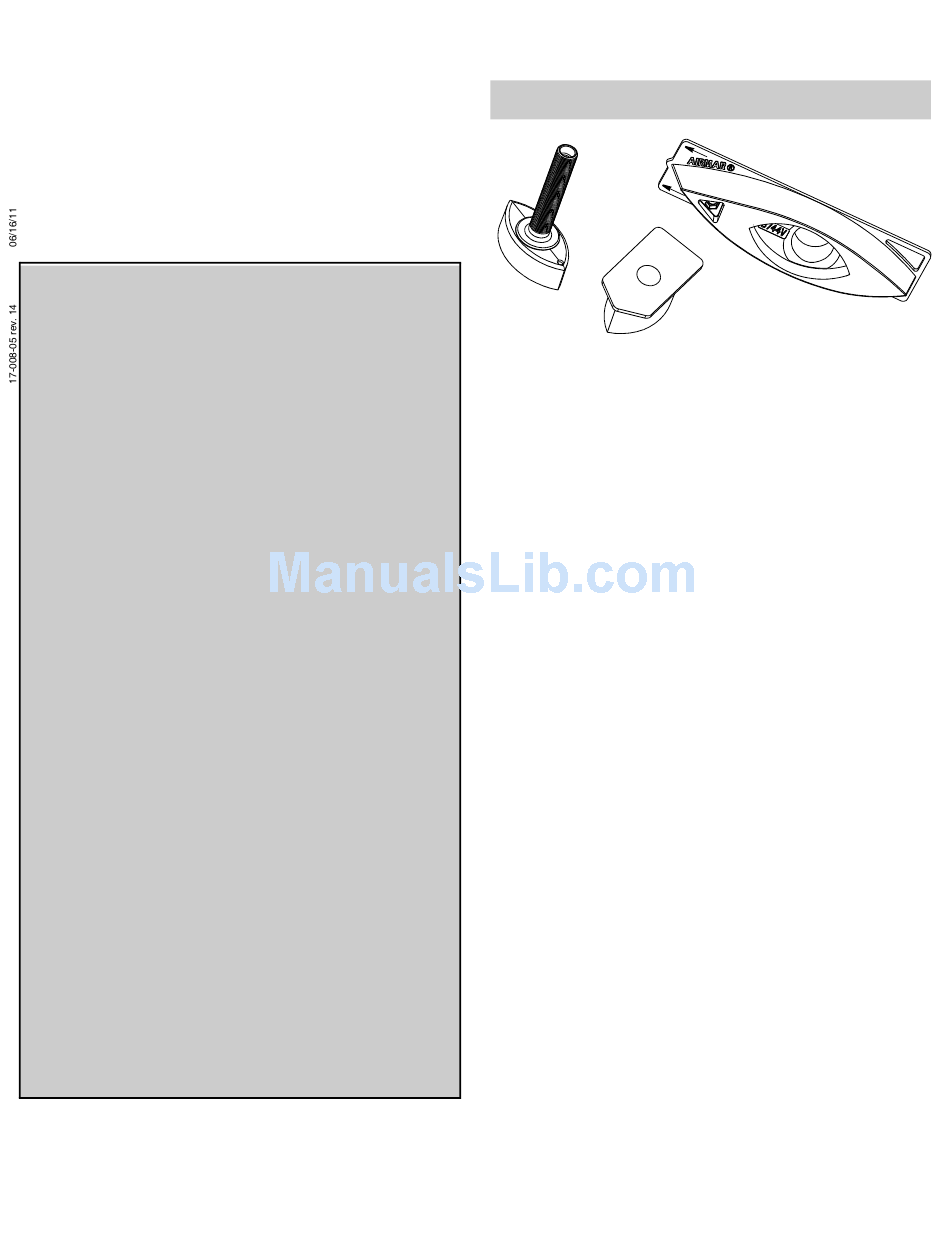

About Fairings
Most vessels have some deadrise angle at the mounting location. If
the transducer is mounted directly to the hull, the sound beam will
be tilted to the side at the same angle as the deadrise. A fairing is
strongly recommended if the deadrise angle exceeds 10°. Made of
a high-impact polymer with an integrated cutting guide, an Airmar
fairing is safer and easier to cut with a band saw and shape with
hand tools than custom fairings.
• Orients the sound beam straight down by mounting the
transducer parallel to the water surface.
• Mounts the transducer deeper in the water for clean flow over
the transducer's face.
• Airmar High-Performance Fairing has a long streamlined
shape, directing water around the transducer to minimize drag.
Performance is excellent above 15kn (18MPH). (To order see
"Replacement Parts" on page 4.)
High-Performance
Fairing
Standard
Fairing
3mm or 1/8"
22mm or 7/8"
30mm or 1-3/16"
33mm or 1-5/16"
35mm or 1-3/8"
40mm, 41mm, or 1-5/8"
42mm or 1-5/8"
