Airmar P19-12 Owner's Manual & Installation Instructions

OWNER' S GUIDE

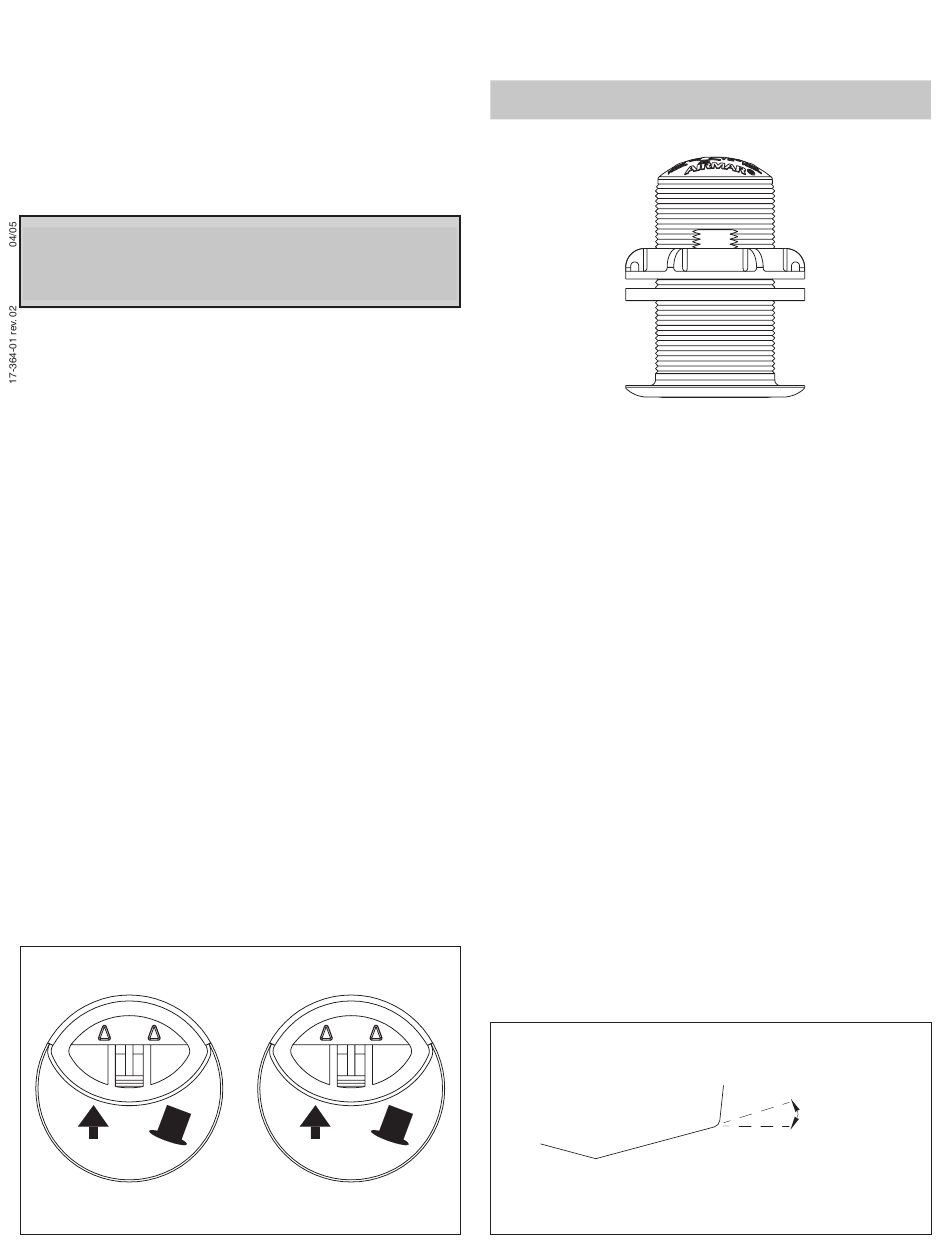

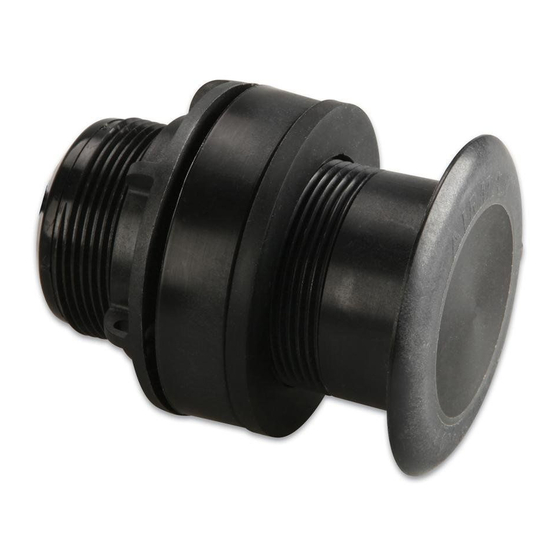

Tilted Element Depth Transducer
Models: P19-12º, P19-20º, B22-12º, B22-20º,
B60-12º, B60-20º, SS565-12º, SS565-20º
IMPORTANT : Please read the instructions completely
before proceeding with the installation. These
instructions supersede any other instructions in your
instrument manual if they differ.
CAUTION : NEVER USE SOLVENTS
Cleaners, fuel, paint, sealants, and other products can
contain strong solvents, such as acetone, which attack
many plastics greatly reducing their strength.

Applications

• Plastic housing recommended for fiberglass or metal hulls only .
Never install a plastic thru-hull transducer in a wood hull, since
swelling of the wood may overstress the plastic causing a
fracture.
• Bronze housing recommended for fiberglass or wood hulls.
Never install a bronze housing in a metal hull, because
electrolytic corrosion will occur.
• Stainless steel housing compatible with all hull materials.
Recommended for metal hulls to prevent electrolytic corrosion.
A stainless steel housing must be isolated from a metal hull.
• Never install a metal housing in a vessel with a positive ground
system.
• Be sure your transducer model matches the deadrise angle
of your boat. The top of the transducer is imprinted with the angle
(see Figure 1).
12º models for deadrise angles from 8º to 15º
20º models for deadrise angles from 16º to 24º
To measure the deadrise angle of your hull at the selected
Mounting Location, use an angle finder or a digital level
(see Figure 2).
12º model
TILT
KEEL
12
O
AIRMAR
®
Figure 1. Top of transducer
Copyright © 2005 Airmar Technology Corp.
&
20º model
TILT
KEEL
20
O
AIRMAR
®
Installation INSTRUCTIONS
Record the information found on the cable tag for future reference.
Part No._________________Date___________Frequency________kHz

Identify Your Model

The model name is printed on the cable tag.
Tools & Materials
Safety goggles
Dust mask
Electric drill with 10mm (3/8") or larger chuck capacity
Drill bit: 3mm or 1/8"
Hole saw:
P19-12º, P19-20º, B22-12º, B22-20º:
B60-12º, B60-20º, SS565-12º, SS565-20º:
Countersink tool (installing stainless steel housing)
Sandpaper
Mild household detergent or weak solvent (such as alcohol)
File (installation in a metal hull)
Marine sealant (suitable for below waterline)
Slip-joint pliers (installing a metal housing)
Zip-ties
Water-based antifouling paint ( mandatory in salt water )
Installation in a cored fiberglass hull (see page 3):
Hole saw for hull interior:
P19-12º, P19-20º, B22-12º, B22-20º:
B60-12º, B60-20º, SS565-12º, SS565-20º:
Fiberglass cloth and resin
or Cylinder, wax, tape, and casting epoxy
Transom View
Figure 2. Deadrise angle
Copyright © 2005 Airmar Technology Corp.
P19-12º
51mm or 2"
60mm or 2-3/8"
60mm or 2-3/8"
69mm or 2-3/4"
slope of hull
deadrise angle
parallel to waterline
