Design Guide

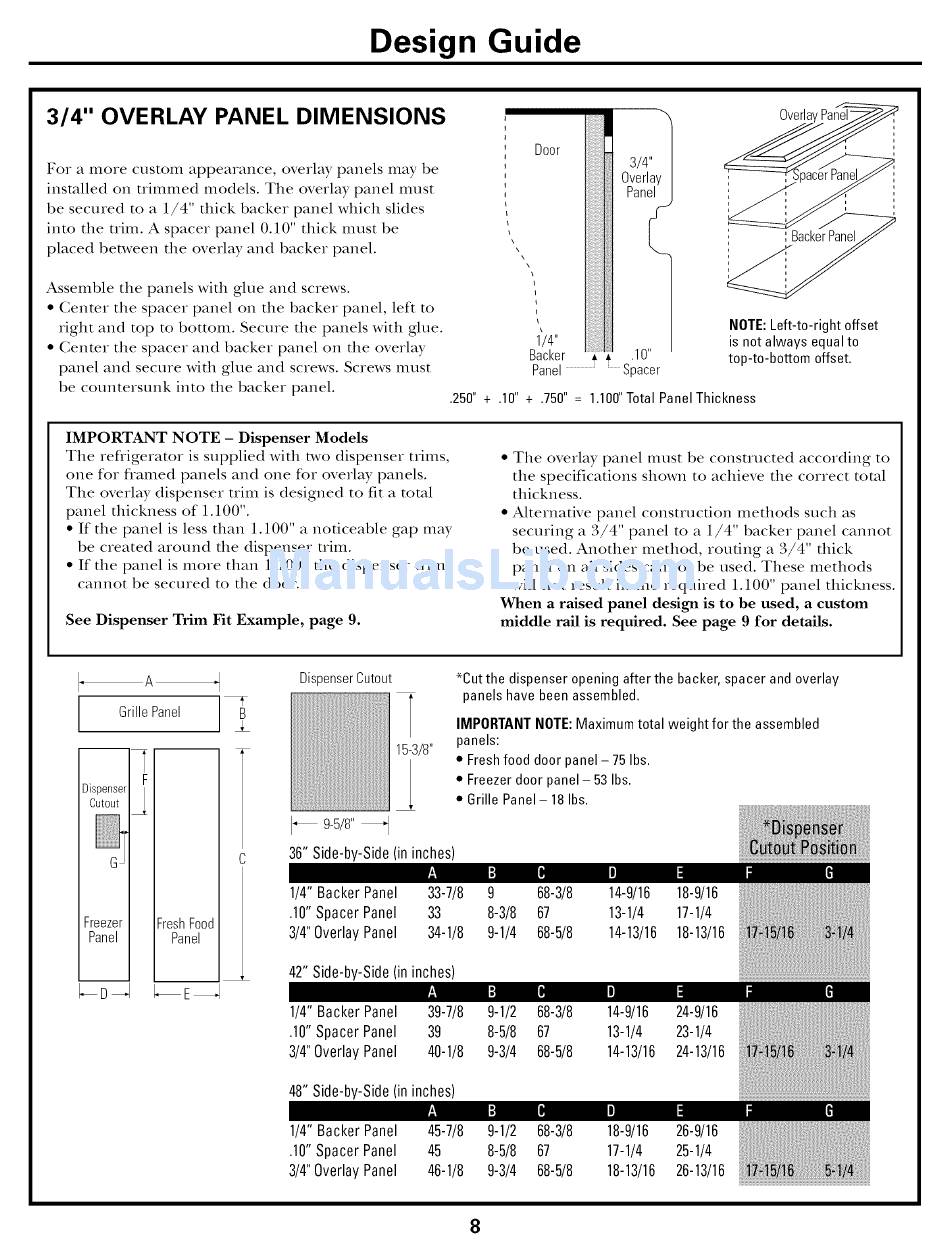

3/4" OVERLAY PANEL DIMENSIONS
For
a more
custom
appearance,
overlay
panels
may
be
installed
on trimmed
models.
The
overlay
panel
must
be secured
to a 1/4"
thick
backer
panel
which
slides
into
the
uim.
A spacer
panel
0.10"
thick
must
be
placed
between
the
overlay
and
backer
panel.
Assemble
the panels
with glue and screws.
• Center
the spacer
panel
on the backer
panel,
left to
right
and top to bottom.
Secure
the panels
with glue.
• (]enter
the spacer
and backer
panel
on the overlay
panel
and secure
with glue and
screws.
Screws must
be countersunk
into the backer
panel.
Door
1/4"
Backer
A
Panel
_ _ Spacer
Overlay Panel
Backer P anel
ROTE:Left-to-right offset
is not always equal to
top-to-bottom offset.
.250" + .10" + .750" = 1.100"Total Panel Thickness
IMPORTANT NOTE - Dispenser Models
The refligerator
is supplied with two dispenser
trims,
one for flamed
panels and one for overlay panels.
The overlay dispenser
uim is designed
to fit a total
panel thickness of 1.100".
• If the panel is less than 1.100" a noticeable
gap may
be created around
the dispenser
uim.
• If the panel is more than 1.100" the dispenser
trim
cannot be secured
to the door.
See Dispenser
Trim Fit Example,
page
9.
• The overlay panel must be consuucted
according
to
the specifications
shown to achieve the correct total
thickness.
• Alternative
panel construc6on
methods
such as
securing
a 3/4" panel to a 1/4" backer panel cannot
be used. Another
method,
rou6ng
a 3/4" thick
panel on all sides cannot be used. These methods
will not result in the required
1.100" panel thickness.
When a raised panel design is to be used, a custom
middle rail is required.
See page 9 for details.
Grille Panel
7
F
Dispenser
Cutout
Freezer
FreshFood
Panel
Panel
m
_D_
I_E_
Dispenser C utout
*Cut the dispenser opening after the backer, spacer and overlay
5!3
panels have been assembled.
IMPORTANT NOTE:Maximum total weight for the assembled
/8
panels:
• Fresh food door panel- 75 Ibs.
• Freezer door panel- 53 Ibs.
• Grille Panel- 18 Ibs.
I"
94/8" _1
36" Side-by-Side (in inches)
1/4"Backer Panel
33-7/8
9
68-3/8
14-9/16
18-9/16
.10"SpacerPanel
33
8-3/8
67
13-1/4
17-1/4
3/4"OverlayPanel
34-1/8
9-1/4
68-5/8
14-13/16 18-13/16
42" Side-by-Side (in inches)
1/4"Backer Panel
39-7/8
9-1/2
68-3/8
14-9/16
24-9/16
.10"SpacerPanel
39
8-5/8
67
13-1/4
23-1/4
3/4"OverlayPanel
40-1/8
9-3/4
68-5/8
14-13/16 24-13/16
48" Side-by-Side (in inches)
1/4"Backer Panel
45-7/8
9-1/2
68-3/8
18-9/16
26-9/16
.10"SpacerPanel
45
8-5/8
67
17-1/4
25-1/4
3/4"OverlayPanel
46-1/8
9-3/4
68-5/8
18-13/16 26-13/16
8
