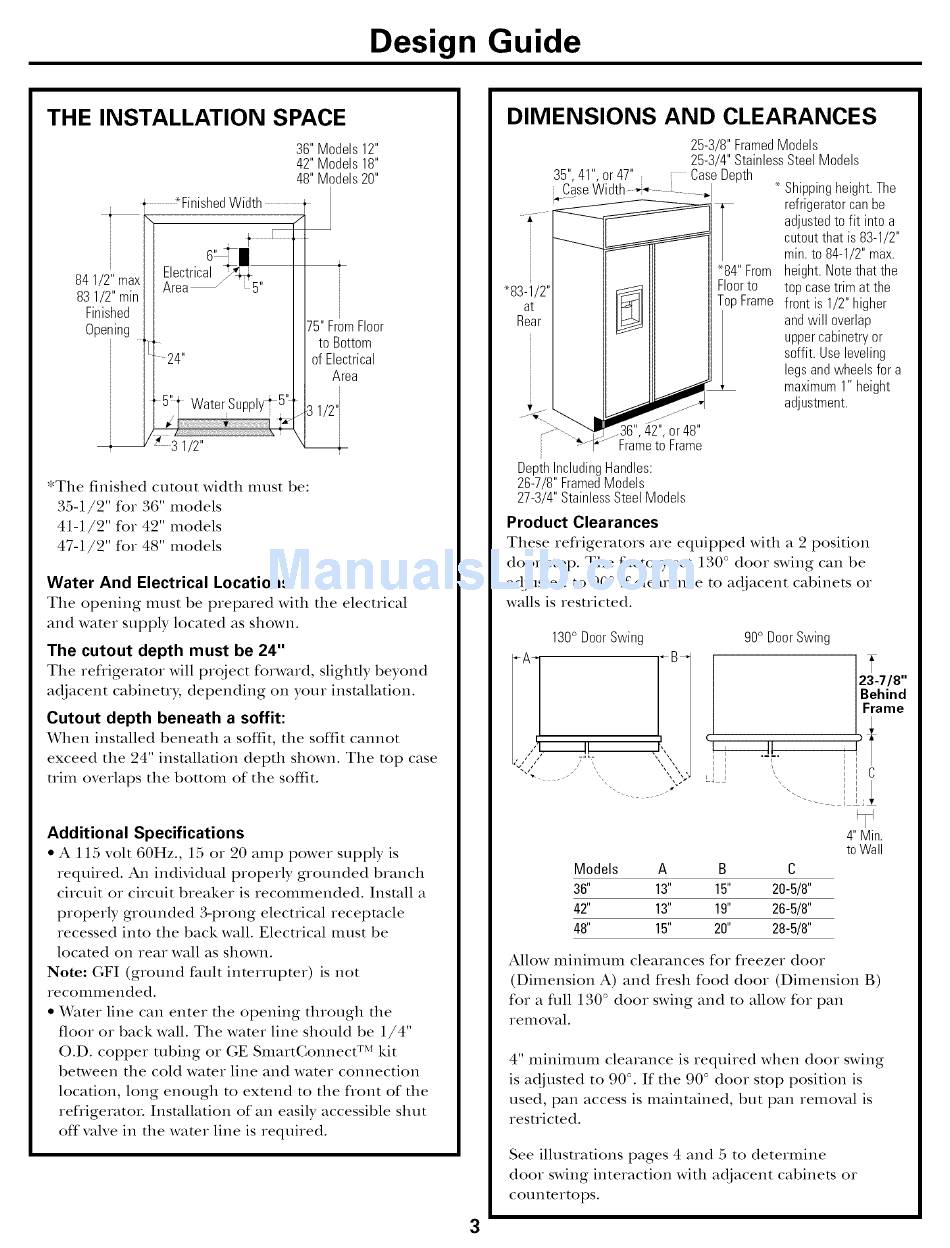

Design Guide
THE INSTALLATION
SPACE
36" Models 12"
42" Models 18"
48" Models20"
*FinishedWidth
/
_f
....
|
Electrical _
1
%//z"maxii
^
_
_,,
i
83 1/2" min iI Area
b
i
Finished |I
Opening II
75" FromFloor
Ill
to Bottom
Iq - 24"
of Electrical
II
Area
It 5"t WaterSupplY+5"
3 1/2"
i
1/2'
*The
finished
cutout
width
must
be:
35-1/2"
for 36" models
41-1/2"
for 42" models
47-1/2"
for 48" models
Water
And Electrical
Locations
The opening
must
be prepared
with
the electrical
and water supply
located
as shown.
The cutout
depth
must be 24"
The refrigerator
will project
forward,
slightly
beyond
adjacent
cabinetry,
depending
on your installation.
Cutout
depth
beneath
a soffit:
_qlen
installed
beneath
a soffit,
the soffit cannot
exceed
the 24" installation
depth
shown.
The
top case
trim overlaps
the bottom
of the soffit.
Additional
Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is
required.
An individual
properly
grounded
branch
circuit
or circuit
breaker
is recommended.
Install
a
properly
grounded
3-prong
electrical
receptacle
recessed
into
the back wall. Electrical
must
be
located
on rear wall as shown.
Note:
GFI (ground
fault interrupter)
is not
recommended.
• _rater
line can enter
the opening
through
the
floor
or back wall. The water line should
be 1/4"
O.D.
copper
robing
or GE SmartConnect
TM
kit
between
the cold water
line and water
connection
location,
long enough
to extend
to the front
of the
refligerator.
Installation
of an easily accessible
shut
off valve in the water line is required.
DIMENSIONS
AND CLEARANCES
25-3/8" FramedModels
25-3/4" StainlessSteelModels
35", 41", or 47"
CaseDepth
i CaseWidth _..... _........_l
* Shippingheight.The
i .....
refrigeratorcan be
adjustedto fit into a
cutout that is 83-1/2"
rain.to 84-1/2"max.
• 84" From height. Note that the
Floorto
top casetrim at the
TopFrame front is 1/2" higher
andwill overlap
uppercabinetryor
soffit. Useleveling
legs andwheelsfor a
maximum1" height
adjustment.
.36", 42", or 48"
Frame to Frame
DepthIncludingHandles:
25-7/8" FramedModels
27-3/4" StainlessSteelModels
Product Clearances
These refligerators
are equipped
with a 2 position
door stop. The factory set 130 ° door swing can be
adjusted
to 90 ° if clearance
to adjacent
cabinets or
walls is resuicted.
130 ° DoorSwing
90° DoorSwing
23_.7/8 ''
Behind
'I'T
I c
3
4" Min.
to Wall
Models
A
B
C
36"
13"
15"
20-5/8"
42"
13"
19"
26-5/8"
48"
15"
20"
28-5/8"
Allow minimum
clearances
for fleezer
door
(Dimension
A) and fresh food door (Dimension
B)
for a flail 130 ° door swing and to allow for pan
removal.
4" minimum
clearance
is required
when door swing
is adjusted to 90 ° . If the 90 ° door stop position
is
used, pan access is maintained,
but pan removal is
restricted.
See illusuafions
pages
4 and
5 to determine
door
swing interaction
with adjacent
cabinets
or
countertops.
