ZV800SJ/BJ – GE Monogram

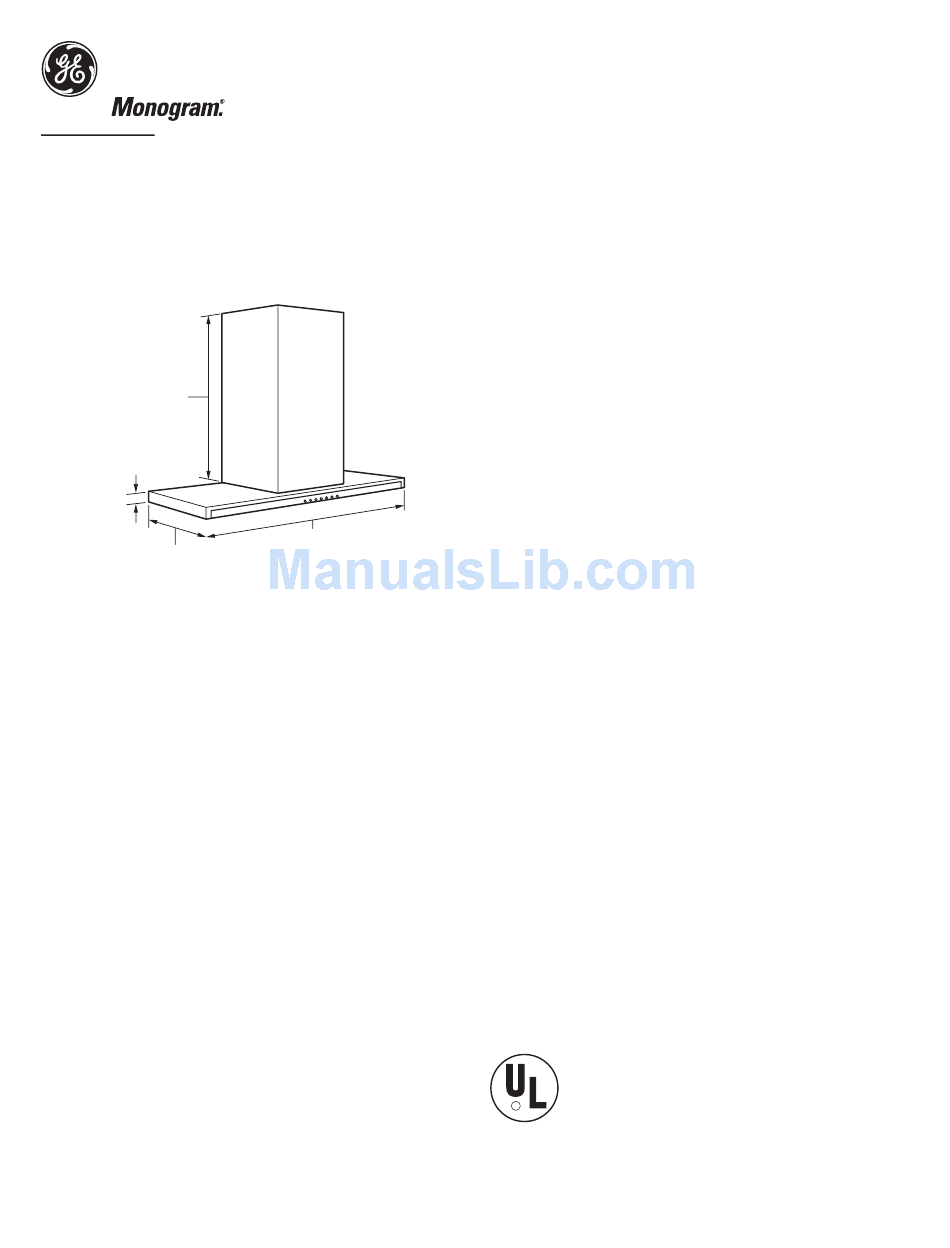

Dimensions and Specifications (in inches)
*Height to
Ceiling
1-1/2"
12-15/16" at sides
13-11/16" at center
Specification Created 8/04
130664
36" Chimney Hood
™
35-7/8"
*The Supplied Duct Cover Fits
8 ft. to 10 ft. Ceiling Heights
Note: The vent hood canopy extends forward 5-7/8" .
The vent hood must be installed 24" min., and 30" max. above
the cooking surface. The telescopic duct cover conceals the
ductwork running from the top of the hood to the ceiling. The
duct cover is sized to reach 8 ft. to 10 ft. ceiling heights.
The hood installation height, from the cooking surface to the
bottom of the hood, depends upon ceiling height.
Installation Information: Before installing, consult installation
instructions packed with product, or available online at
monogram.com, for current dimensional data.
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,
GE
appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
GE Profile
or
®
™
service,
®
Advertisement
Related Manuals for GE MONOGRAM ZV800SJ
Summary of Contents for GE MONOGRAM ZV800SJ
- Page 1 ZV800SJ/BJ – GE Monogram Dimensions and Specifications (in inches) *Height to Ceiling 1-1/2" 12-15/16" at sides 35-7/8" 13-11/16" at center *The Supplied Duct Cover Fits 8 ft. to 10 ft. Ceiling Heights Specification Created 8/04 130664 36" Chimney Hood ™...
-
Page 2: Wall Mount Installations
ZV800SJ/BJ – GE Monogram Wall Mount Installations These hoods may be installed onto a wall or below a wall cabinet. • Telescopic duct covers are provided to conceal the ductwork, running to the ceiling. • This hood can be installed for recirculation operation. No kits required. -
Page 3: Cabinet Requirements
ZV800SJ/BJ – GE Monogram Cabinet Requirements This hood may be installed beneath a wall-mounted cabinet. • Both vented and recirculating operation can be accomplished in an under-cabinet installation. • If the cabinet has been installed, it must be removed so that wall framing supports can be added. - Page 4 ZV800SJ/BJ – GE Monogram ZV800SJSS Specification Created 8/04 130664 36" Chimney Hood ™ Features and Benefits • Under-cabinet or stand-alone installation – The chimney hood installs beneath a cabinet, above most cooktops and ranges. For a more contemporary look, the system can be wall-mounted with matching 8-to-10-ft.
