Replacing brackets on a low-profile graphics card

Matrox low-profile graphics cards ship with standard (ATX) brackets compatible with most systems.
The following explains how to change your standard bracket to a low-profile bracket.

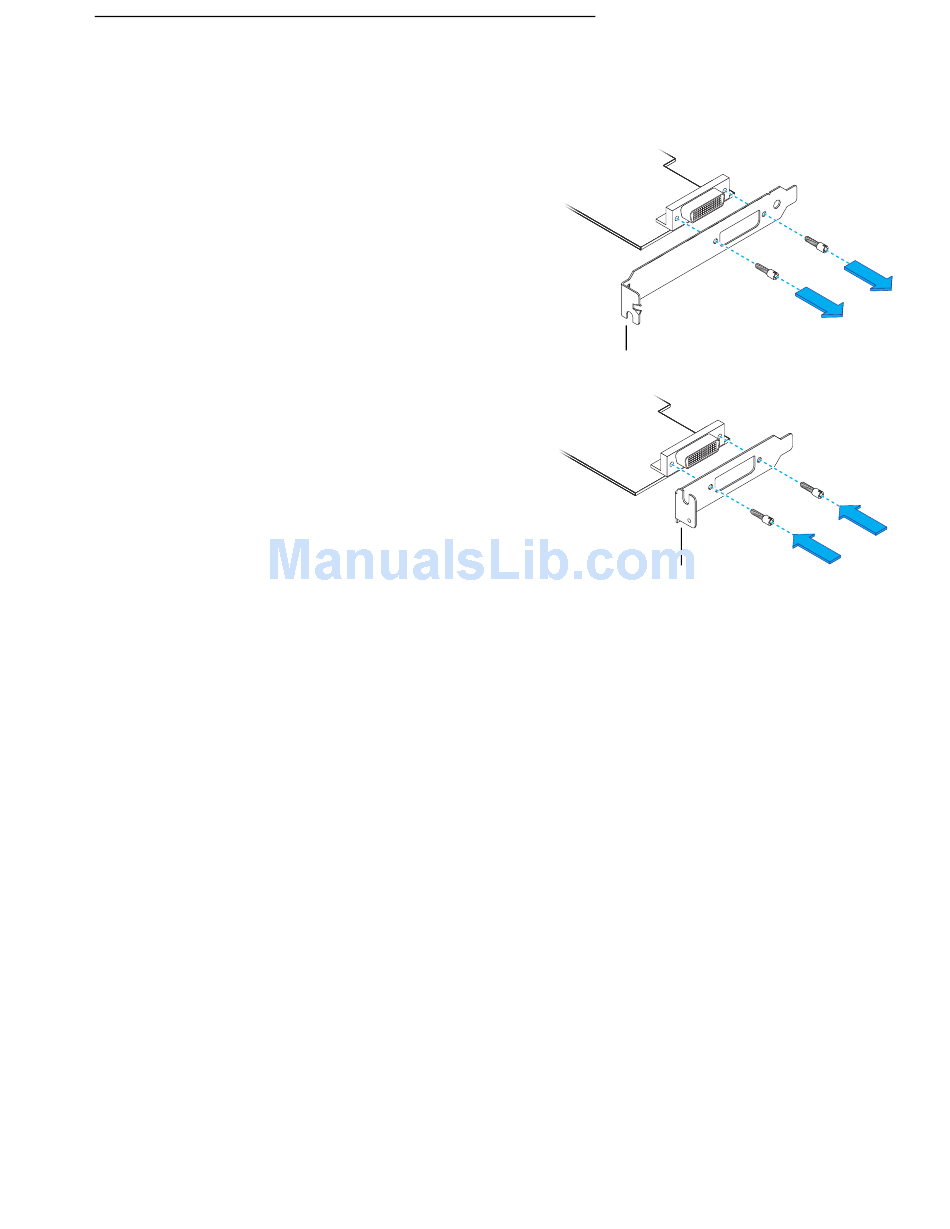

1 Remove the standard bracket
from your Matrox graphics card
by removing the hexagonal nuts
on either side of the monitor
connector.
Attach and fasten the low-profile
2
bracket with the two hexagonal
nuts you just removed.
Standard (ATX) bracket
Low-profile bracket
Matrox graphics card – User Guide 5
