Elite Screens Ez-Frame Series User Manual

Fixed frame screen
Hide thumbs Also See for Ez-Frame Series:

Advertisement

Table of Contents

See also: User Manual

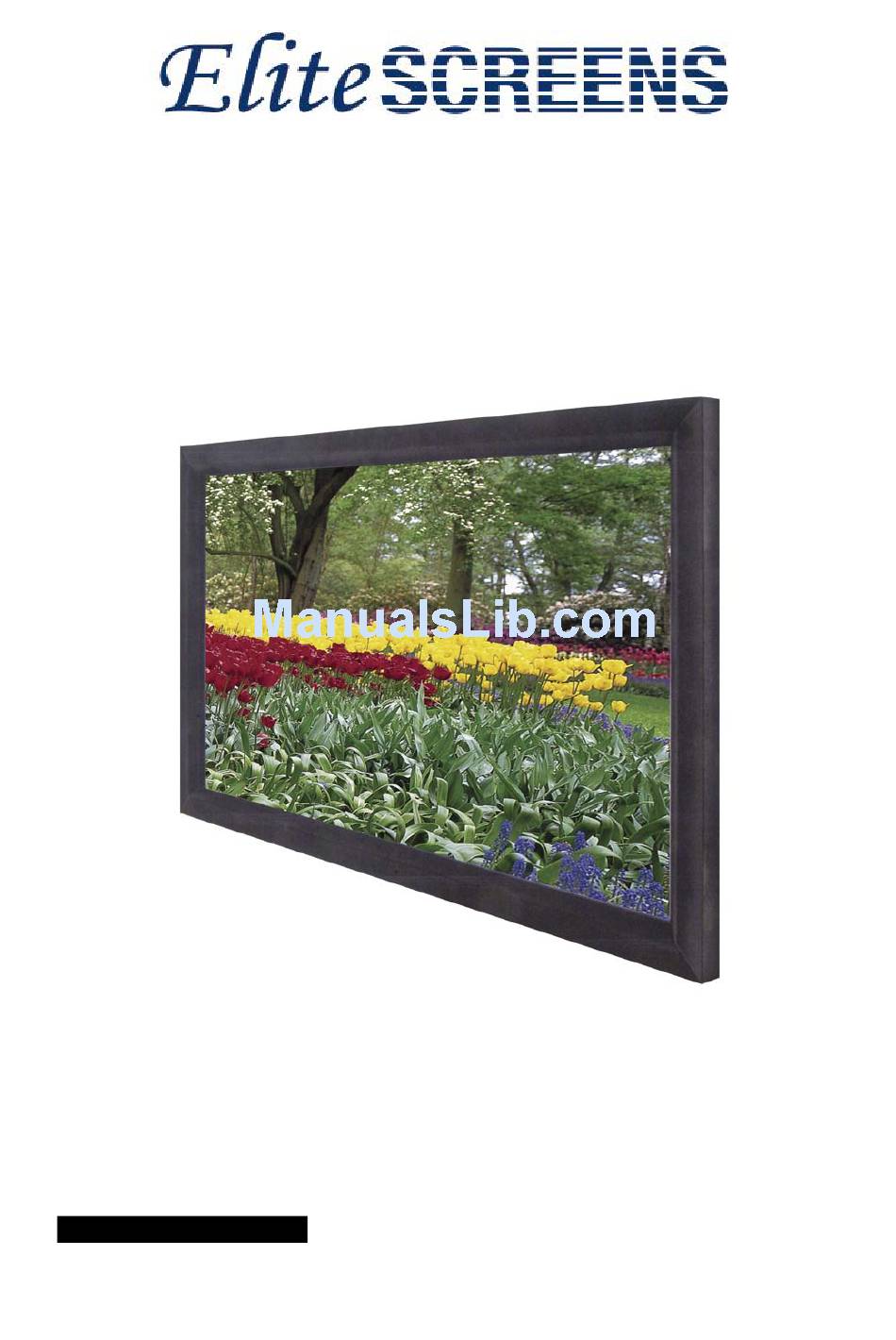

Fixed Frame Screen
Elite Ez-Frame Series
User's Guide
HIGH CONTRAST GREY
Rev. 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ez-Frame Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Screens Ez-Frame Series

Summary of Contents for Elite Screens Ez-Frame Series

  • Page 1 Fixed Frame Screen Elite Ez-Frame Series User’s Guide HIGH CONTRAST GREY Rev. 1.2...
  • Page 2 PRE-INSTALLATION 1. Carefully unpack the contents of the screen. 2. Lay the frame and screen material on a clean surface to protect them from being damaged. INSTALLING YOUR SCREEN Note: This projection screen should be installed in a position where the audience has a best view of the image in order to achieve a clear picture.
  • Page 3 Fig. 3 Step 2: PREPARING THE SCREEN MATERIAL 1. Lay out the screen material on a clean surface in full length and insert the metal bars (Ex2\Fx2) through the corresponding margins of the screen (J). Fig. 4 2. Place the screen material in the center of the back of the frame to allow an equal amount of stretch on all sides.
  • Page 4 Fig. 5 Step 3: INSTALLING THE SCREEN MATERIAL 1. Begin by installing the screen material on the center two holes on the (D) nails located on the left and right sides of the frame as shown on Fig. 6. Fig. 6 2.
  • Page 5 Fig. 7 3. Lastly, install the four remaining corners to complete assembling your fixed frame screen. Step 4: MOUNTING HARDWARE 1. Place the metal mounting plates on the pre-drilled holes of the top frame (G) 2. Install the screws (I) to secure the mount metal mount plate. 3.
  • Page 6 PARTS LIST: A x 2 B x 2 C x 2 D x 20-30 E x 2 F x 2 G x 2 H (M5X15) x 8 I (M5X8) x 4 J x 1 Rev. 1.2...
  • Page 7 NOTE: Regardless of mounting method, screen should be securely supported so that vibration will not cause case to work loose or fall. Installer must insure that fasteners used are of adequate strength and suitable for the mounting surface chosen. Fill this in!! For the convenience of service, record the following information in the space below.

This manual is also suitable for:

Elite ez-frame series
