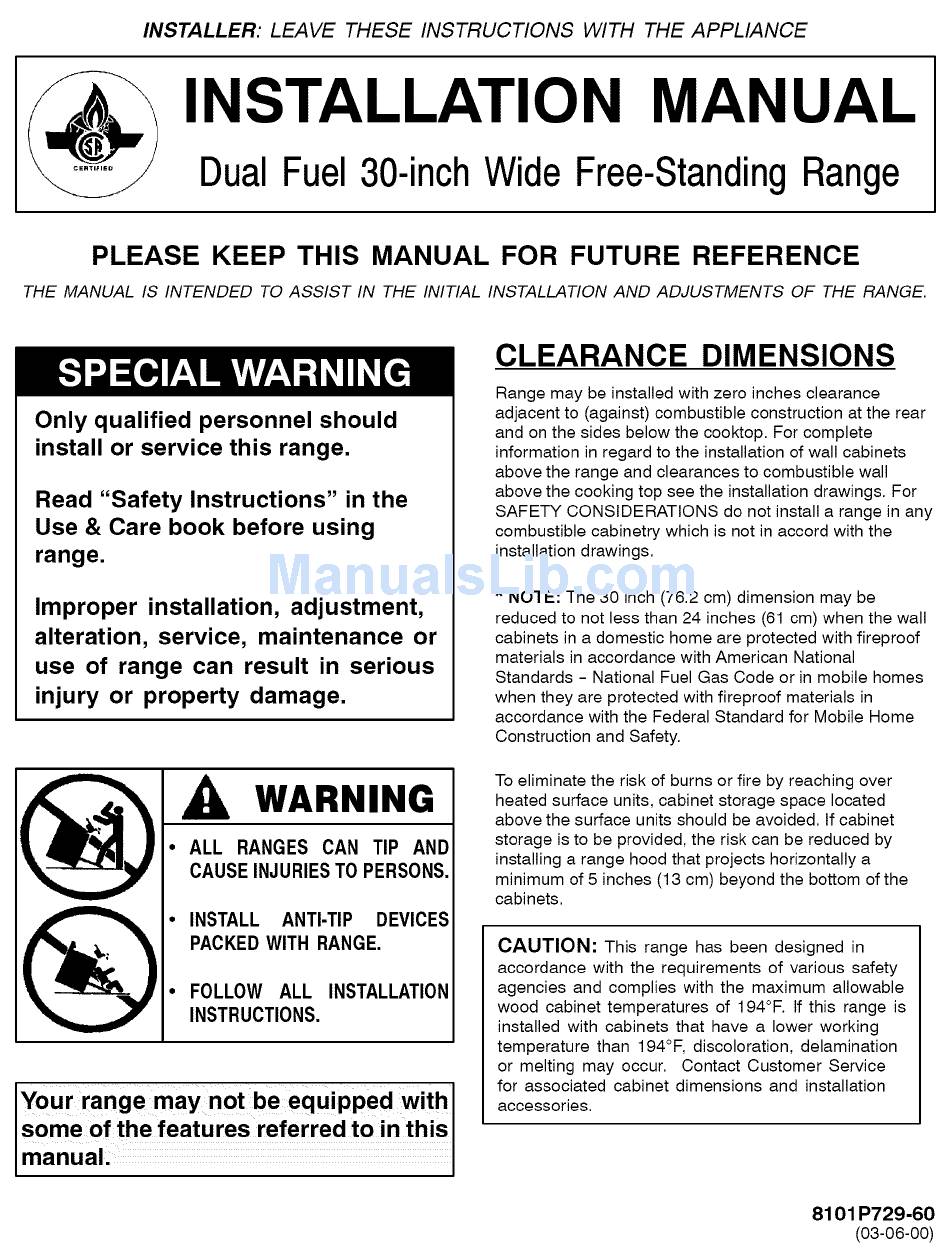

INSTALLER:
LEAVE
THESE
INSTRUCTIONS
WITH THE APPLIANCE
INSTALLATION
MANUAL
Dual Fuel 30-inch Wide Free-StandingRange
PLEASE
KEEP THIS MANUAL
FOR FUTURE
REFERENCE
THE MANUAL IS INTENDED
TO ASSIST IN THE INITIAL INSTALLATION AND ADJUSTMENTS
OF THE RANGE.
Only qualified personnel should
install or service this range.
Read "Safety
Instructions"
in the
Use & Care book before using
range.
Improper
installation,
adjustment,
alteration,
service,
maintenance
or
use of range can result in serious
injury or property
damage,
WARNING
• ALL RANGES CAN TIP AND
CAUSE INJURIESTO PERSONS.
• INSTALL
ANTI-TIP
DEVICES
PACKED WITH RANGE.
• FOLLOW ALL INSTALLATION
INSTRUCTIONS.
Your range may not be equipped
with
some of the features
referred ;€oin this
manual,
CLEARANCE
DIMENSIONS
Range may be installed with zero inches clearance
adjacent to (against) combustible construction at the rear
and on the sides below the cooktop. For complete
information in regard to the installation of wall cabinets
above the range and clearances to combustible wall
above the cooking top see the installation drawings. For
SAFETY CONSIDERATIONS
do not install a range in any
combustible cabinetry which is not in accord with the
installation drawings.
* NOTE: The 30 inch (76.2 cm) dimension may be
reduced to not less than 24 inches (61 cm) when the wall
cabinets in a domestic home are protected with fireproof
materials in accordance with American National
Standards - National Fuel Gas Code or in mobile homes
when they are protected with fireproof materials in
accordance with the Federal Standard for Mobile Home
Construction and Safety.
To eliminate the risk of burns or fire by reaching over
heated surface units, cabinet storage space located
above the surface units should be avoided. If cabinet
storage is to be provided, the risk can be reduced by
installing a range hood that projects horizontally a
minimum of 5 inches (13 cm) beyond the bottom of the
cabinets.
CAUTION:
This range has been designed
in
accordance
with the requirements
of various safety
agencies and complies with the maximum allowable
wood cabinet temperatures
of 194°F. If this range is
installed with cabinets that have a lower working
temperature
than 194°F, discoloration,
delamination
or melting may occur.
Contact Customer Service
for associated cabinet dimensions
and installation
accessories.
8101 P729-60
