3−11 Litho In U.S.A. (JMJ) (eeb)

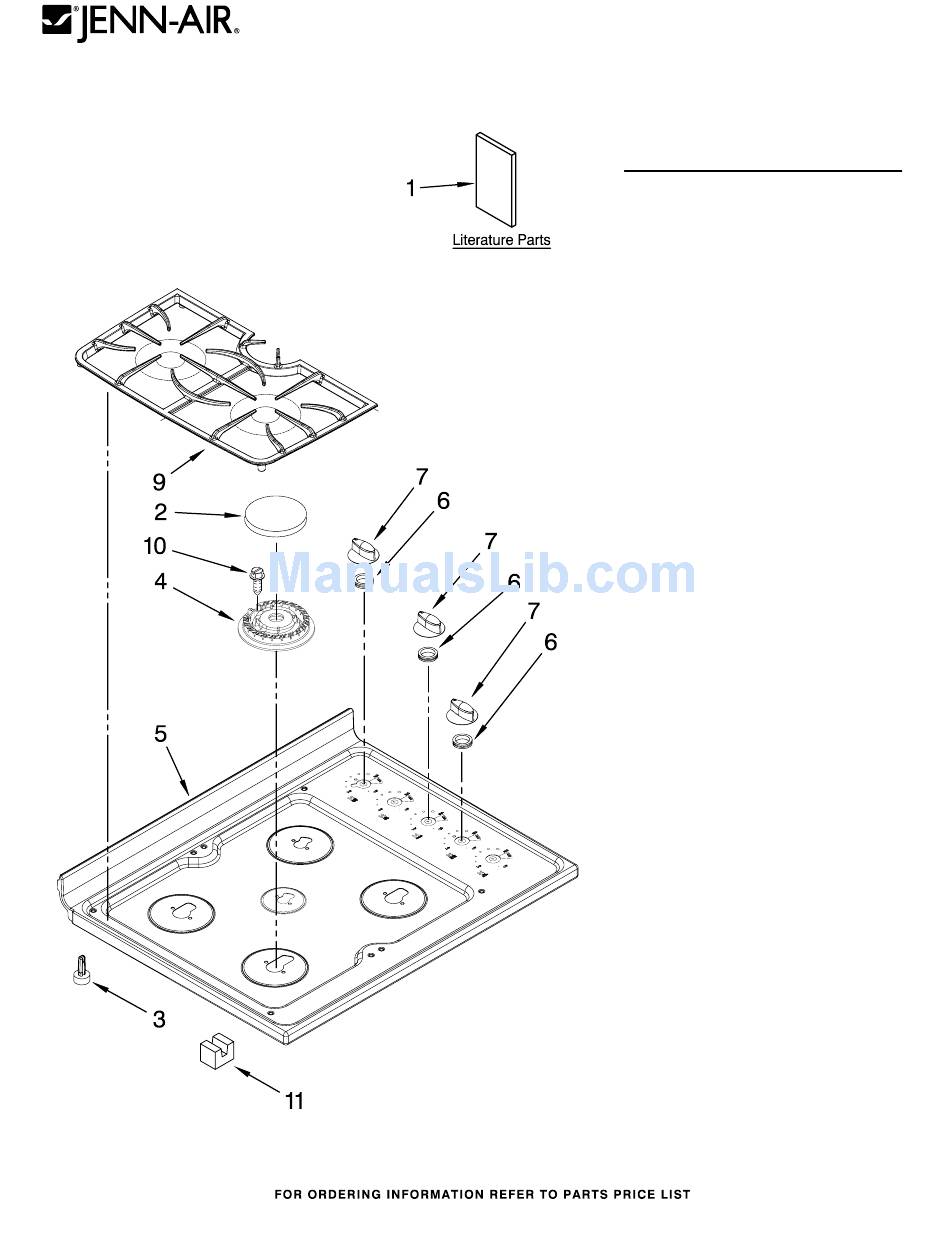

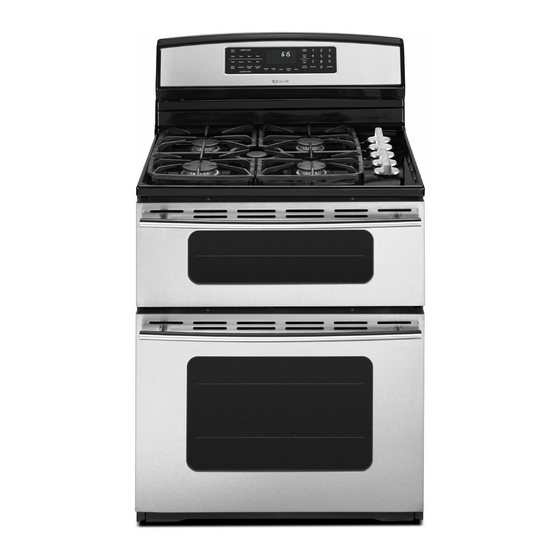

COOKTOP PARTS
For Models: JDR8895BAW13, JDR8895BAS13, JDR8895BAB13
(White)
(Stainless)
(Black)
Illus.
No.
1
2
3
4
5
6
7 W10183665 Knob, Control (5)
9
10
11
1
30" FREE STANDING
DUEL FUEL
CONVECTION
Part
No.
DESCRIPTION
Literature Parts
W10162495 Installation
Instructions
W10162493 Owners Manual
9762761 Tips, Brochure
Safe Cooking
Cap, Burner
W10183368 LF
W10183369 LR
W10183371 RF
W10183370 RR/Center
8016P022−60 Glide, Main Top
Burner
8286181 RR/Center 5K (2)
W10194076 LR 9.2K (1)
8286183 LF 17K (1)
8286182 RF 12K (1)
Cooktop
W10174900 Black
W10174901 White
8285469 Grommet, Knob (5)
7518P455−60 Grate, Burner (2)
(Includes Bumpers)
7101P685−60 Screw (8)
8255P412−60 Block,
Element Support
Part No. W10268918 Rev. C
