Jenn-Air JDR8880RDB1 Parts List
30" free standing range with dual fuel convection
Hide thumbs
Also See for JDR8880RDB1:
- Installation manual (30 pages) ,
- Use & care manual (92 pages) ,
- Installation manual (10 pages)
Advertisement
Table of Contents
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
8101P729−60 Manual, Owners
8119P367−60 Wiring Diagram
8101P729−60 Instructions,
Installation
Brochure, Tips
Safe Cooking
9762761 English
W10065852 French
2
Grate, Double
7518P190−60 Black
7518P192−60 Gray
11−11 Litho in U.S.A. (amd) (eeb)

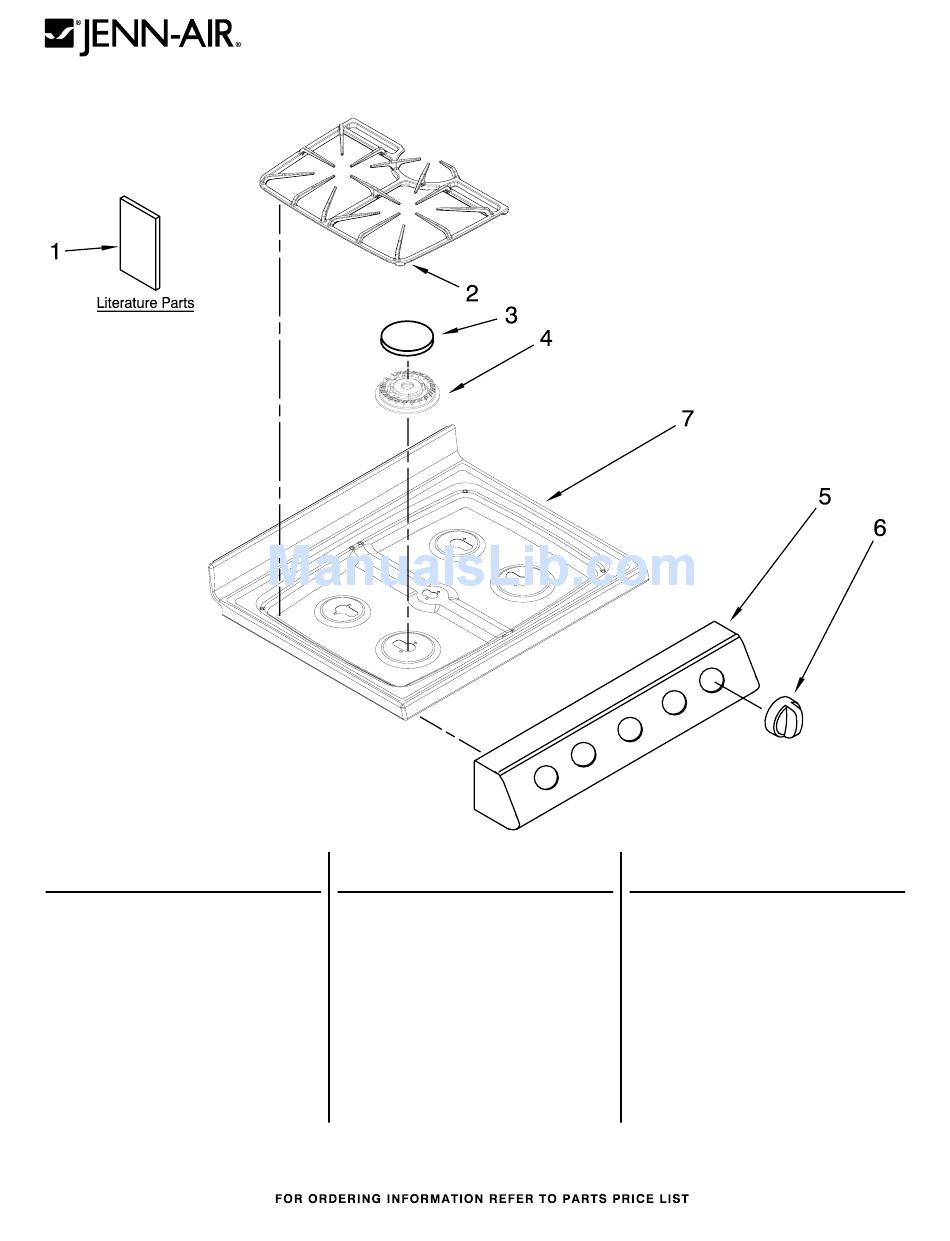

COOKTOP PARTS
For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1
(Black)
Illus.
Part
No.
No.
3
7504P202−60 Black,Small
7504P219−60 Black,Medium
7504P137−60 Black,Medium
7504P204−60 Black,Large
7504P139−60 Gray,Small
7504P205−60 Gray,Medium
7504P141−60 Gray,Medium
7504P140−60 Gray,Large
(White)
(Stainless)
Illus.
DESCRIPTION
No.
Cap, Burner
1
30" FREE STANDING
RANGE WITH DUAL
FUEL CONVECTION
Part
No.
DESCRIPTION
4
Base, Burner
8286181 6K, Center
8286182 17K, RF
7540P043−60 9.2K, LR,RR
8286183 12K, LF
5
Panel, Manifold
2616F328−81 White
2616F328−09 Black
2616N343−50 Stainless
6
7733P389−60 Knob, Valve
7
Cooktop
2001F287−81 White
2001F287−09 Black
Part No. W10245806 Rev. B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jenn-Air JDR8880RDB1
Summary of Contents for Jenn-Air JDR8880RDB1
- Page 1 COOKTOP PARTS 30" FREE STANDING RANGE WITH DUAL For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1 FUEL CONVECTION (Black) (White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Cap, Burner Base, Burner 8101P729−60 Manual, Owners 7504P202−60 Black,Small 8286181 6K, Center 8119P367−60 Wiring Diagram 7504P219−60 Black,Medium 8286182 17K, RF...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1 (Black) (White) (Stainless) Illus. Part DESCRIPTION End Cap 3807F702−71 White (Right) 3807F703−71 White (Left) 3807F702−70 Black (Right) 3807F703−70 Black (Left) 8507P333−60 Control Backguard Assy. 5751M719−60 White 5751M717−60 Black 5751M718−60 Stainless Sheild, Heat Visor 3604F382−81 White 3604F382−09 Black 4005P711−51 Cover, Rear Wire... -
Page 3: Oven Parts
OVEN PARTS For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1 (Black) (White) (Stainless) W10245806... - Page 4 OVEN PARTS For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1 (Black) (White) (Stainless) Illus. Part DESCRIPTION Panel, Side 2618F172−58 White 2618F172−69 Black 3804F311−51 Retainer, Side 7406P493−60 Element, Broil 12001656 Oven Sensor 3196154 Screw 7427P109−60 Fan Assy. Convect 7101P385−60 Screw 4005P704−51 Cover, Convect Pl 3807P680−45 Support, Oven 7406P456−60 Element, Bake 11 W10162385 Gasket...
-
Page 5: Manifold Parts
MANIFOLD PARTS For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1 (Black) (White) (Stainless) Illus. Part DESCRIPTION 7431P053−60 Module, Spark 7513P499−60 Pipe, Manifold Valve, Burner 7502P499−60 5K Copreci (1) 7502P501−60 16K Copreci (1) 7502P500−60 12K Copreci (3) 7403P983−60 Harness, Switch Orifice Holder 7527P095−60 Right Front 7527P124−60 Right Rear 7527P097−60 Center 7527P125−60 Left Rear... - Page 6 DRAWER PARTS For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1 (Black) (White) (Stainless) Illus. Part DESCRIPTION 8010P130−60 Spacer, Rubber 3405F037−80 Drawer, Service 3604P409−51 Sheild, Heat Panel, Drawer 2416F104−71 White 2416F104−70 Black 7760P228−60 Panel, Drawer (Stainless Models) 7103P082−60 Nut 7118P032−60 Shaft, Roller 8014P022−60 Roller, Drawer 7101P072−60 Screw W10245806...
-
Page 7: Door Parts
DOOR PARTS For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1 (Black) (White) (Stainless) W10245806... - Page 8 DOOR PARTS For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1 (Black) (White) (Stainless) Illus. Part DESCRIPTION 7002P246−60 Insulation, Door 7103P176−60 Nut 3823F017−45 Spacer, Handle 7760P218−60 Panel (Stainless) 7701P467−60 Handle, Door Trim, Side 3608F126−71 White 3608F126−70 Black Glass, Door 7902P784−60 White 7902P792−60 Black Trim, Bottom 3608F092−71 White 3608F092−70 Black Tape,Double Sided...
- Page 9 OPTIONAL PARTS (NOT INCLUDED) For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1 (Black) (White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) PAINT, BULK (1 qt.) Following Parts Not Illustrated 799344 White (Uncut) 72017 White 72032 Black 799340 Black (Uncut) REFINISHING MATERIAL 511873 White Porcelain ACCESSORY PARTS...
