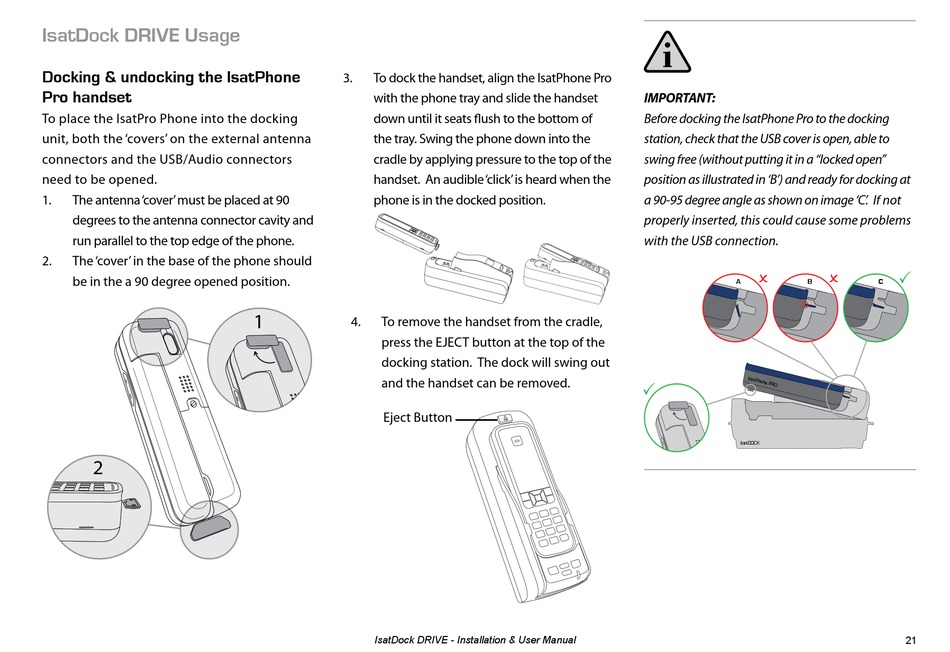

IsatDock DRIVE Usage

Docking & undocking the IsatPhone

Pro handset

To place the IsatPro Phone into the docking
unit, both the 'covers' on the external antenna
connectors and the USB/Audio connectors
need to be opened.
1. The antenna 'cover' must be placed at 90
degrees to the antenna connector cavity and
run parallel to the top edge of the phone.
2. The 'cover' in the base of the phone should
be in the a 90 degree opened position.
2
3. To dock the handset, align the IsatPhone Pro
with the phone tray and slide the handset
down until it seats flush to the bottom of
the tray. Swing the phone down into the
cradle by applying pressure to the top of the
handset. An audible 'click' is heard when the
phone is in the docked position.
1
1 4. To remove the handset from the cradle,
press the EJECT button at the top of the
docking station. The dock will swing out
and the handset can be removed.
Eject Button
IsatDock DRIVE - Installation & User Manual
IMPORTANT:
Before docking the IsatPhone Pro to the docking
station, check that the USB cover is open, able to
swing free (without putting it in a "locked open"
position as illustrated in 'B') and ready for docking at
a 90-95 degree angle as shown on image 'C' . If not
properly inserted, this could cause some problems
with the USB connection.

A B

IsatDOCK


C
21
