5.1

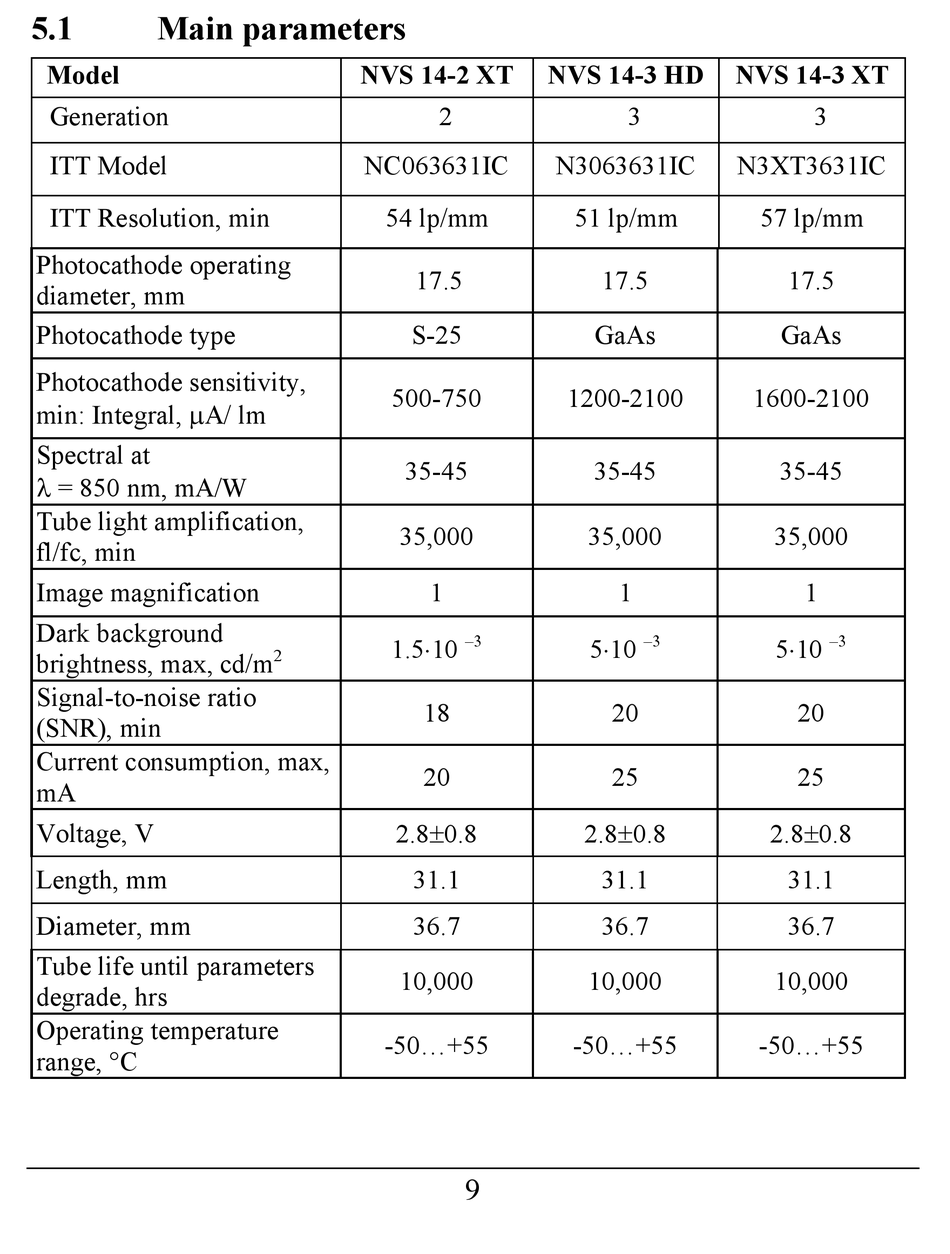

Main parameters

Model
Generation
ITT Model
ITT Resolution, min
Photocathode operating
diameter, mm
Photocathode type
Photocathode sensitivity,
min: Integral, A/ lm
Spectral at
 = 850 nm, mA/W
Tube light amplification,
fl/fc, min
Image magnification
Dark background
brightness, max, cd/m
Signal-to-noise ratio
(SNR), min
Current consumption, max,
mA
Voltage, V
Length, mm
Diameter, mm
Tube life until parameters
degrade, hrs
Operating temperature
range, °C
NVS 14-2 XT
2
NC063631IC
54 lp/mm
17.5
S-25
500-750
35-45
35,000
1
1.510
2
18
20
2.80.8
31.1
36.7
10,000
-50...+55
NVS 14-3 HD
3
N3063631IC
51 lp/mm
17.5
GaAs
1200-2100
35-45
35,000
1
 
510
20
25
2.80.8
31.1
36.7
10,000
-50...+55
9
NVS 14-3 XT
3
N3XT3631IC
57 lp/mm
17.5
GaAs
1600-2100
35-45
35,000
1

510
20
25
2.80.8
31.1
36.7
10,000
-50...+55
