- Page 1 Operation Manual THERMAL IMAGING MONOCULAR TVS 11 105 Sparks Ave., Toronto, ON, M2H 2S5, Canada...
-
Page 2: Table Of Contents
CONTENTS BRIEF DESCRIPTION ..........2 Overview ................. 2 Key Features of the TVS 11 ..........3 DESIGN OF THE TVS 11 ......... 4 DELIVERY SET ............5 Standard Delivery Set ............5 ... -
Page 3: Brief Description
(being worn on a head or helmet) monocular with a wrist strap provided to secure the instrument in hand. The TVS 11 is equipped with a digital USB interface for programming in the field. Power supply options include Li-Ion rechargeable batteries (optional), two CR123 batteries or external power through a watertight connector. -
Page 4: Key Features Of The Tvs 11
Key Features of the TVS 11 High quality image within the entire field of view Possibility to be worn on a head or helmet (hands-free applications) or mounted on a weapon Mil-Spec housing, waterproof to 1 meter ... -
Page 5: Design Of The Tvs 11

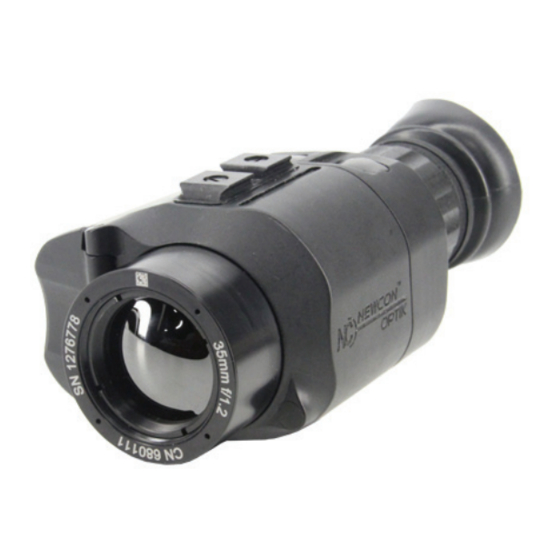

2. DESIGN OF THE TVS 11 FIGURE 1. TVS 11 Objective lens Head/Helmet Attachment Plate; Weapon Attachment Plate (at the bottom of the device) Battery Compartment Cover Battery Cover Lock Eyepiece with Diopter Adjustment Ring On-Off Button - Menu Button Digital Zoom “Black-hot”... -
Page 6: Delivery Set
3. DELIVERY SET Standard Delivery Set QUANTITY TVS 11 Device Objective Lens Cap Operation Manual Soft Case CR 123 Batteries Car power adaptor USB Cable Video/Charge Cable Wrist Strap Head gear TVS head gear adaptor Optional Delivery Set Weapon mount... -
Page 7: Specifications
4. SPECIFICATIONS Detector Resolution 324x256 Full Frame Rates 30 Hz (NTSC); 25 Hz (PAL) Exportable Frame Rates 7.5 Hz (NTSC); 8.3 Hz (PAL Pixel Size 25μ Operating wavelength 7.5 - 13.5 μm Sensitivity <50mK at F1.0 Optics Objective Lens 35 mm Objective F Number F1.2 Field of View... - Page 8 Mechanical Temperature Range -40 to +60 °C Shock Resistance 300g Hours of Operation 6 (rechargeable) / 8 (battery) Dimensions 130x80x60 mm Weight with Battery 0.435kg...
-
Page 9: Startup And Initial Testing
5. STARTUP AND INITIAL TESTING Use of Standard Power Supply The unit is powered by either 2 CR123 lithium or 2 CR123 Li-Ion rechargeable (optional) batteries. Ensure the rechargeable batteries are completely charged before operating (you cannot charge the batteries inside of the device). If the battery is completely discharged, the battery indicator blinks will turn red. -
Page 10: Connecting With Video Recorder
Connecting with video recorder (Does not come with the unit - Can be purchased separately) The TVS 11 can be connected to an external monitor or video recorder. The video output is combined with the multifunctional interface connector. Use the cable that is included in the device... - Page 11 FIGURE 2. TVS 11 attached to headgear The unit is attached to the headgear with a swing arm mount (Fig. 2). To attach the arm mount to the headgear loosen the tightening screw (1, Fig. 1) on headgear, slide helmet groove (2, Fig.
- Page 12 Fig. 2) and raise the device. The unit should lock in position. To return the unit to the original position, press the flip button again and help the unit gently to swing down. FIGURE 3. TVS 11 Swing arm mount...
-
Page 13: Mounting On A Rifle
The unit can be mounted on a rifle with a Picatinny mount adapter (MIL-STD-1913). The optical axis of the monocular caligns with the rifle’s Picatinny rail. FIGURE 4. TVS 11 with Picatinny adapter Two types of weapon mount adapters are available – Fig.4 and Fig. -
Page 14: Testing The Unit's Readiness
The advantages of the ‘Quick Release’ mount are: Quick removal and installation of the device Foolproof design Increased reliability FIGURE 5. Quick Release weapon adapter “Accu-torque” screw Latch with spring Testing the Unit’s Readiness 1. Turn the unit on by pressing and holding the ON‐OFF button for 1 second. -
Page 15: System Controls
7. SYSTEM CONTROLS The ON-OFF control button is used not only to turn on and off the device, but to activate the MENU as well. One short press on this button activates the screen menu that controls brightness and contrast of the screen. An extended press of this button in the main mode turns the device off. -
Page 16: Display
Control Button Functionalities in the Brightness/Contrast Menu , result of rapid press , result of extended Control Button Diagram and (≤0.5 seconds) press (≥1.0 second) Name Increases selected parameter by one unit WH|BH Toggles between brightness/contrast Exits menu MENU parameters ... -
Page 17: Warranty
Newcon Optik Dealer. Newcon Optik will repair (or, at its option, replace with the same or comparable model), the product or part thereof, if upon inspection, it is found to be defective in material or workmanship. -
Page 18: Customer Support
CUSTOMER SUPPORT Should you experience any difficulties with your Newcon Optik product, consult this manual first. If the problem persists, contact our customer support department at +1 (416) 663-6963 or toll free at 1-877-368-6666 (North America only). Our operating hours are 9am-5pm, Monday - Friday, Eastern Standard Time. -
Page 19: Acceptance Certificate
ACCEPTANCE CERTIFICATE Thermal Imaging System Resolution TVS 11 35 mm lens Unit serial number: _________________________________ The unit complies with all technical specifications and has passed the inspection. Date of production: _________________________________ Quality Inspector’s signature: __________________________ Quality Assurance Seal... - Page 20 NEWCON OPTIK Printed in Canada...
