- Page 1 Operation Manual NIGHT VISION SYSTEM NIGHT WITNESS 105 Sparks Ave., Toronto, ON, M2H 2S5, Canada...
- Page 3 IMPORTANT INFORMATION Read prior to activation. You have purchased a sophisticated electronic device. To operate it properly, please read this manual carefully. Ignoring the operation procedures described in this manual will void your warranty. NEVER disassemble the unit. This device contains a source of high voltage, which may be hazardous to your health.
- Page 4 PRECAUTIONS Night Witness is a sophisticated precise optical instrument equipped with electronics. Therefore, it should be handled with due care. Avoid strong heat, direct sunlight, impacts, dust, moisture and sudden changes of temperatures. Keep it in mind that, although being very durable, Night Witness contains fragile components.
-
Page 5: Table Of Contents
TABLE OF CONTENTS 1. OVERVIEW..............5 2. DELIVERY SET ............7 Standard delivery set........7 Optional accessories ........7 3. SPECIFICATIONS .............8 4. UNIT DESIGN............9 5. OPERATION INSTRUCTIONS.......11 Precautions..........11 Operational procedures ......11 Low Battery Indicator ......13 Indicator High-Light cut off....13 Use of accessories ........14 7. -
Page 6: Overview

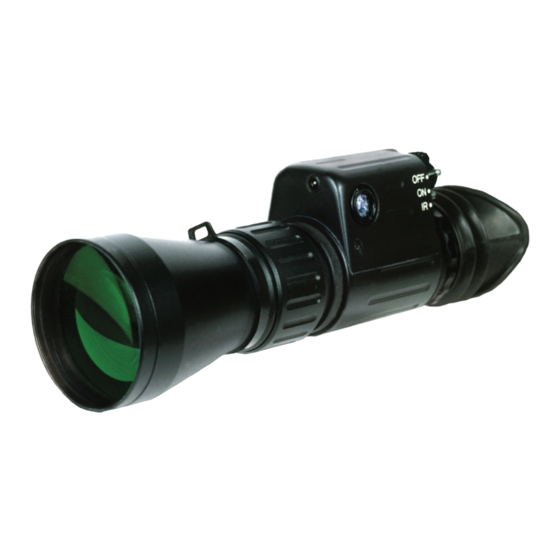

1. OVERVIEW Compact lightweight night vision system Night Witness is intended for low light observation & photo/video surveillance. This miniature monocular device is equipped with high gain, high resolution Image Intensifier of 2+ Generation.. Night Witness is the most versatile observation &... - Page 7 Night Witness is provided with a unique high-light cut off circuit to protect image intensifier tube. ‘Intellectual’ TTL sensor measures a luminance level directly on the photocathode surface. If it exceeds the overload capacity for an Image Intensifier used in the device–...
-
Page 8: Delivery Set
2. DELIVERY SET 2.1 Standard delivery set QUANTITY Night Witness 100mm / F1.7 standard lens Interchangeable 25mm / F1.4 lens Adapter for photo-video & CCTV Cameras with 5 step-up rings Wrist strap Desiccant cartridge Spanner for the cartridge AA Batteries... -
Page 9: Specifications
3. SPECIFICATIONS Magnification Image Intensifier Tube (IIT) 18 mm Gen. 2+ Resolution, min 57 lp/mm 57 lp/mm Focal length / F Number 25 mm / F1.4 100 mm / F1.7 Field of view 40° 10.5° Focus range 3 m - infinity Focal length 20 mm Eye relief... -
Page 10: Unit Design
4. UNIT DESIGN Infrared ON Indicator Low battery indicator (Yellow) (Red) Strap holder Power ON Indicator (Green) Battery house cover I/R Switch High Light cut off indicator (Blue) ON / OFF Switch... - Page 11 I/R Illuminator Tripod socket ¼” Focusing ring Device Objective Lens Cartridge ON / OFF Switch Dioptric adjustment ring Eye piece...
-
Page 12: Operation Instructions
5. OPERATION INSTRUCTIONS 5.1 Precautions Never disassemble the unit by yourself. There are no wires or modules that require user cleanning or adjustment. 5.2 Operational procedures Twist off the battery house cap. Insert one battery type «AA» 1.5V make sure that polarity is correct. - Page 13 NEVER DIRECT THE LENS IN THE DIRECTION OF BRIGHT LIGHT For maximum performance focus in on your object by rotating the focusing ring on the objective lens. For IR operation: depress fixated button IR illuminator , keeping the button depressed move it in to ...
-
Page 14: Low Battery Indicator
5.3 Low Battery Indicator Low battery indicator is RED and is located in ocular field of view, the indicator will start to blink if voltage of the power supply is between 0.9 - 1.0V, in this case the Green unit ON indicator is off. If the voltage is very low (less than 0.9V), all indicators of NVD (Night Vision Device) will automatically turn off. -
Page 15: Use Of Accessories
5.5 Use of accessories Wrist strap Insert the end of the wrist strap in the hole located on the back of the unit. Tighten the wrist strap by passing is through hinge, as it is shown on the picture in the right. Mounting the unit on a tripod ... - Page 16 Using the unit with external power supply of car adapter Remove battery house cover. Remove the battery «AA» and insert a external power adapter (optional). Lock the cap of an adapter into place. Connect the power source to slot of external power supply cable (or car adapter) with a standard low voltage plug type 5,5/ 2,1.
- Page 17 Operation with Photo cameras, Video Cameras and CCTV-Systems Remove the ocular from the unit by unscrewing it from the body of the unit. Install instead of the ocular, proper photo-video or CCTV-adapter. Connect the NVD with an adapter to photo-, video- or CCTV - camera (further referred to as camera) with reference to instruction related to specific adapter.
- Page 18 Environmental Conditions Night Witness functions equally reliable in normal as well as extreme weather conditions. Although the unit performs reliably in harsh weather conditions and high moistures it is expected that user will do due diligence and pay more close attention to operation instructions, in order to keep unit in good working order and prevent early demise of the unit.
- Page 19 The capacity of the battery in low temperature is decreased. If possible the batteries should always be protected from low temperatures. High temperature operation Unit functions properly at temperatures up to +40°C. If possible please make sure that battery is protected from high heat and direct sun light.
-
Page 20: Moisture Collector Cap Replacement19
7. MOISTURE COLLECTOR CAP REPLACEMENT Replacing the moisture cap Moisture cap should be replaced in a clean dry place. New Moisture cap can be exposed for no more than 1-2 minutes. The following is required for replacement of cartridge: Prepare spare cartridge supplied with your unit;... -
Page 21: Warranty
Postage, insurance and shipping costs incurred while presenting your NEWCON product for warranty service are your responsibility. If shipping from North America please include a cheque or money order payable to NEWCON OPTIK for the amount of $15.00 to cover handling and return shipping. -
Page 22: Customer Support
9. CUSTOMER SUPPORT Should you experience any difficulties with your Newcon Optik product, consult this manual first. If the problem remains, contact our customer support department at +1(416) 663-6963 or toll free at 1-877-368- 6666 (North America only). Our operating hours are 9am-5pm, Monday - Friday, Eastern Standard Time. -
Page 23: Acceptance Certificate
ACCEPTANCE CERTIFICATE Night Witness serial number: ______________________________________________ Minimum Measured Resolution, lp/mm Photocathode sensitivity, integral, A/lm Light amplification 20000 Date of production: ______________________________________________ Quality Inspector’s signature: ______________________________________________... - Page 24 NEWCON OPTIK Printed in Canada...
