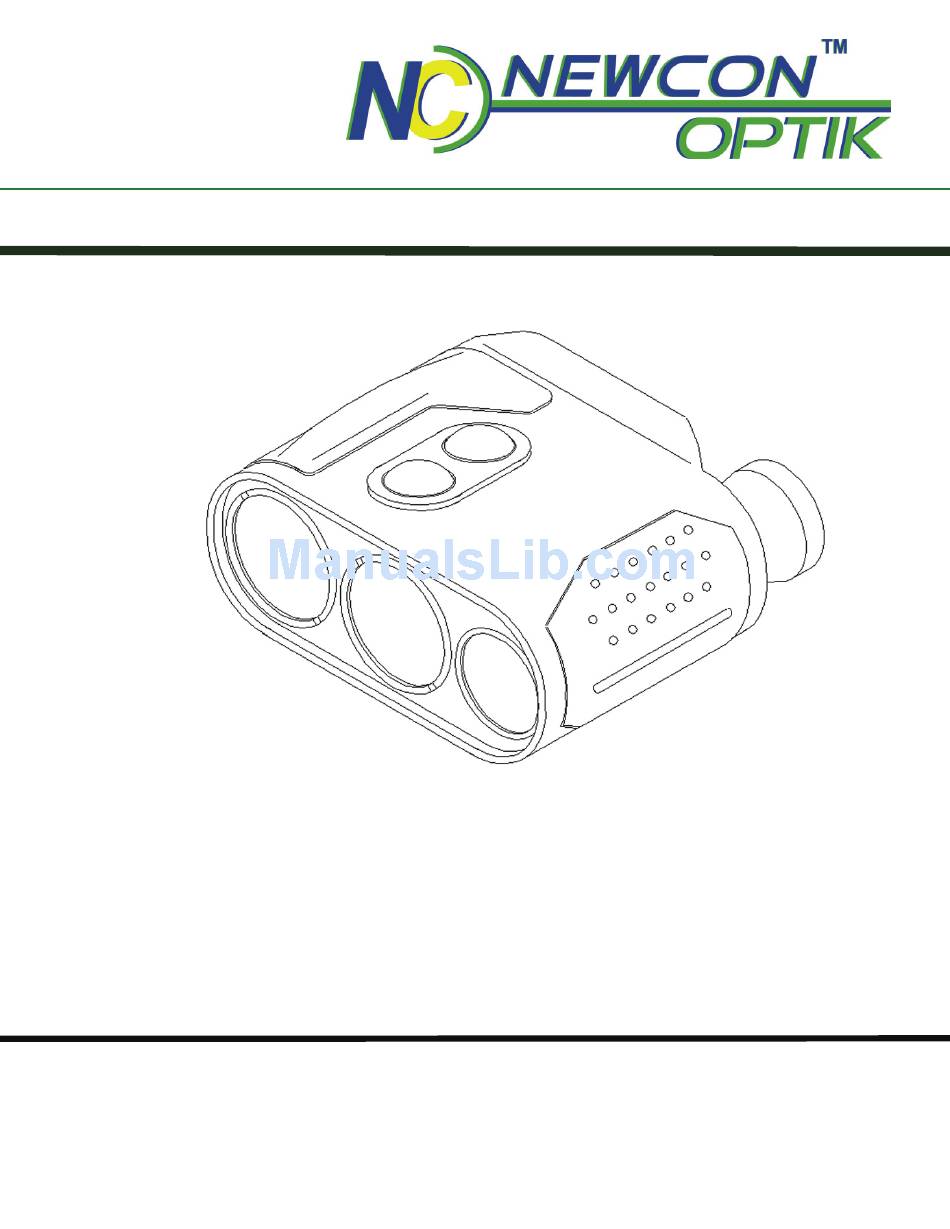

  • Page 1 Operation Manual LRM 2000PRO LASER RANGE FINDER MONOCULAR 105 Sparks Ave., Toronto, ON M2H 2S5, Canada...
  • Page 3 IMPORTANT INFORMATION Read prior to activation You have just purchased a sophisticated electro-optical device that emits invisible laser radiation. To operate it properly, please, read this manual carefully.  NEVER direct laser beam at the eyes of people or animals ...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS BRIEF DESCRIPTION ......... 3 Principle of operation..........3 Key Features ............4 DEVICE APPEARANCE ........5 DELIVERY SET............ 7 Standard delivery set ..........7 SPECIFICATIONS ..........8 OPERATION INSTRUCTIONS ......10 Changing battery ..........11 Measuring procedure..........12 Maximum distance ..........
  • Page 5 BEST MEASURING TECHNIQUE....23 STORAGE AND MAINTENANCE ....... 24 TROUBLESHOOTING........... 25 WARRANTY ............26 CUSTOMER SUPPORT ......... 27 QUALITY CERTIFICATE ........28...

  • Page 6: Brief Description

    FAILURE TO OBEY THE INSTRUCTIONS WILL VOID THE WARRANTY AND MAY CAUSE INJURY! 1. BRIEF DESCRIPTION LRM 2000PRO Laser Rangefinder Monocular (the unit) is an advanced laser range finder system that enables instant distance and elevation measurement, azimuth measurement is also provided.

  • Page 7: Key Features

    Key Features  Selection of the first, last or the most reflective target  Distance is displayed in meters or yards  Original digital circuitry allows ranging through most types of glass, bushes and other obstacles  Three channel optical solution (optical, laser and receiver) provides high accuracy -¦- ...

  • Page 8: Device Appearance

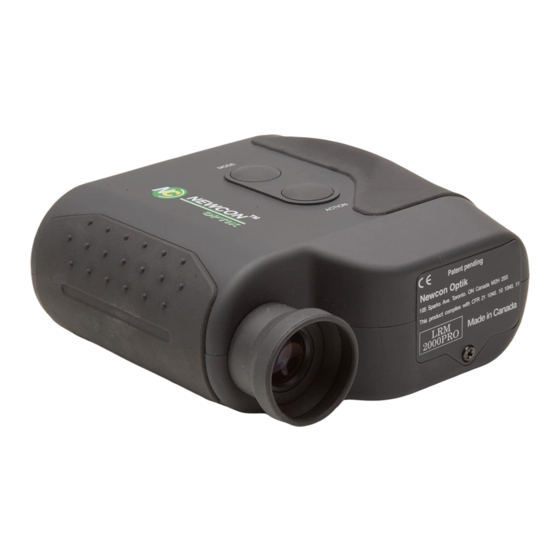

    2. DEVICE APPEARANCE Fig. 1. Front view 1 - Eyepiece 2 - Objective lens 3 - Laser emitter lens 4 - Receiver lens 5 - M (Mode) button 6 - A (Action) button 7 - Body of the device 8 - Rubber grip...
  • Page 9 Fig.2. Rear view 1 - Eyepiece 10 - Tripod socket 9 - Battery compartment cover 12 - Classification 11 - Identification imprint imprint, shown below...

  • Page 10: Delivery Set

    3. DELIVERY SET Standard delivery set LRM 2000PRO is supplied in the following assembly: LRM 2000PRO 9V Lithium (non-magnetic) battery Soft carrying case Cleaning cloth Neck strap Operation manual Warranty card...

  • Page 11: Specifications

    4. SPECIFICATIONS Optics Magnification Objective lens diameter 25 mm Exit pupil diameter 3.6 mm Field of view 8 Type of coating Fully multi-coated optics Range Finder Laser Class 1, eye safe, 905 nm Measuring range 20 m – 2,000 m ...
  • Page 12 Inclinometer Measuring elevation range ±90 Accuracy ±1 Speed Detector Measured speed range 5-400 km/h Accuracy ±2 km/h Power Battery 9V Lithium (non-magnetic) Battery capacity Min 5,000 measurements (Scanning regime) 'Low Battery' indicator Environmental Operational temperature range -25 / +50 C (-13 / +122 Storage temperature range -45 / +65 C (-49 / +149...

  • Page 13: Operation Instructions

    5. OPERATION INSTRUCTIONS Fig. 3. Liquid Crystal Display as seen through the eyepiece 1 – Low battery indicator -¦- 2 – Reticle (either or ) 3 – Units of measurement 4 – Measurement result 5 – Target quality indicator 6 – Laser active indicator 8 –...

  • Page 14: Changing Battery

    Changing battery To install a battery:  Slide the battery compartment cover down (9, Fig. 2)  Install the battery observing polarity  Don’t apply superfluous strength while pushing the battery inside the compartment.  Close the compartment cover If the battery does not fit the compartment easily, it means that either polarity was reversed or the battery contacts are jammed..

  • Page 15: Measuring Procedure

    Note: Battery in metal casing will diminish compass accuracy. Non-magnetic batteries should be used for the utmost compass performance. Measuring procedure When the Rangefinder is off the LCD is blank. To activate it press and hold A button (6, Fig. 1) for half a second. At start the unit comes into Ready to Measure mode indicated by the word ‘READY’...

  • Page 16: Target Selection Logic

    Target reflectivity depends on its color, surface finish, size, shape, position in relation to the laser beam, etc. Bright target colors are more reflective than darks. A polished surface is more reflective than a rough one. Larger targets reflect better than small ones.

  • Page 17: Individual Measurement And Scanning Regimes

    This mechanism helps selecting the target when ranging from behind the bushes, wires, through the falling snow, or in similar conditions. Similarly it enables ranging a target in front of a bigger object, such as a wire in front of the wall. Note: Even with target selection logic the unit may not always be able to range the desired target as its reflectivity may be too low to produce enough laser beam reflections for statistically reliable...

  • Page 18: Operation And Service Modes

    Operation and service modes The unit has the following modes of operation:  Ready to Measure – to perform measurements (Quick link to Standard1 and Standard2 set of measurement parameters appears in mode selection menu for convenience and does not constitute a separate mode) ...

  • Page 19: Mode Switching

     Standard1: distance is displayed in meters, azimuth is measured, crosshair reticle is visible, auto target selection is used;  Standard2: distance is displayed in yards, elevation in degrees At start the unit assumes Ready to Measure mode with measurement parameters inherited from the previous setup. At manufacturing stage the unit is set up into Standard1 set of measuring parameters.

  • Page 20: Data Recall Mode

    Setup and Data Recall modes have submenus, so when A button is pressed to select these modes the unit automatically enters the corresponding submenu. In the same way as with the mode switching M button switches between submenu items and A selects the needed one.

  • Page 21: Setup Mode

    measurement set number (display name: ) will start flashing. Pressing M button moves the unit along the list of measurement set numbers and measurement results: 1, distance 1, elevation 1, rEc 2, distance 2, elevation 2, rEc 0 , distance 0, elevation 0. If either elevation or distance was not measured it will not appear in the list.
  • Page 22 To leave the Setup mode without changing measurement parameters press and hold M button for two seconds. This works like computer Esc key. The rangefinder will keep the last set of parameters and return to the Ready to Measure mode. Mode Ready to Ready...
  • Page 23 Mode Cd 11 No change Auto Cd 12 No change First Cd 13 No change Last Cd 14 Km/h No change Cd 15 Mp/h No change Cd 16 Display test Cd 17 No change Data Recall Recalls last 10 measurement sets Data Clear Clears all recorded data “-“...

  • Page 24: Compass Calibration

    Choosing in Setup mode will cause all display segments and indicators to flash for 8 seconds. Flashing can be interrupted by pressing either button. Compass calibration If the System was exposed to a strong magnetic field the compass accuracy may diminish. To prevent mistakes compass will then show 0º...
  • Page 25 Reliability of ranging depends on the number of impulses that reflect from the target and reach the unit. The unit informs the user: TARGET REFLECTION LOW – ranging results have low statistical reliability, TARGET REFLECTION MED – ranging results have medium statistical reliability, TARGET REFLECTION HIGH –...

  • Page 26: Best Measuring Technique

    6. BEST MEASURING TECHNIQUE Laser range finder measures distance by catching laser beam reflected from the target. Everything that improves reflection increases the measurement reliability and maximum range. 1. Use tripod when ranging remote targets. The longer is the distance, the greater is the beam shift due to hand tremor. 2.

  • Page 27: Storage And Maintenance

    7. STORAGE AND MAINTENANCE The unit is a sophisticated precision optical instrument equipped with laser and electronics. Therefore, it should be handled with due care.  Keep away from direct sunlight.  Avoid impacts, jolts, dust, moisture, and sharp changes of temperature.

  • Page 28: Troubleshooting

    8. TROUBLESHOOTING The ranging does not work. The display is transparent. Check the charge of the battery. Replace it if it is weak. The ranging mode does not work. The display shows results of the last measurement or is transparent. Wait for 8 seconds, and press the Action button again.

  • Page 29: Warranty

    Postage, insurance, and shipping costs incurred while presenting your NEWCON product for warranty service are your responsibility. If shipping from North America please include a cheque or money order payable to NEWCON OPTIK for the amount of US$15.00 to cover handling and return shipping.

  • Page 30: Customer Support

    9am-5pm, Monday - Friday, Eastern Standard Time. At no time should equipment be sent back to Newcon without following the instructions of our technical support department. NEWCON OPTIK accepts no responsibility for unauthorized returns. To locate NEWCON Authorized Dealer call: Tel: +1(416) 663-6963 Fax: (416) 663-9065 Email: newconsales@newcon-optik.com...

  • Page 31: Quality Certificate

    QUALITY CERTIFICATE The unit has passed the quality inspection. Production date Serial number Quality Inspector Purchase date...
  • Page 32 NEWCON OPTIK Printed in Canada...
