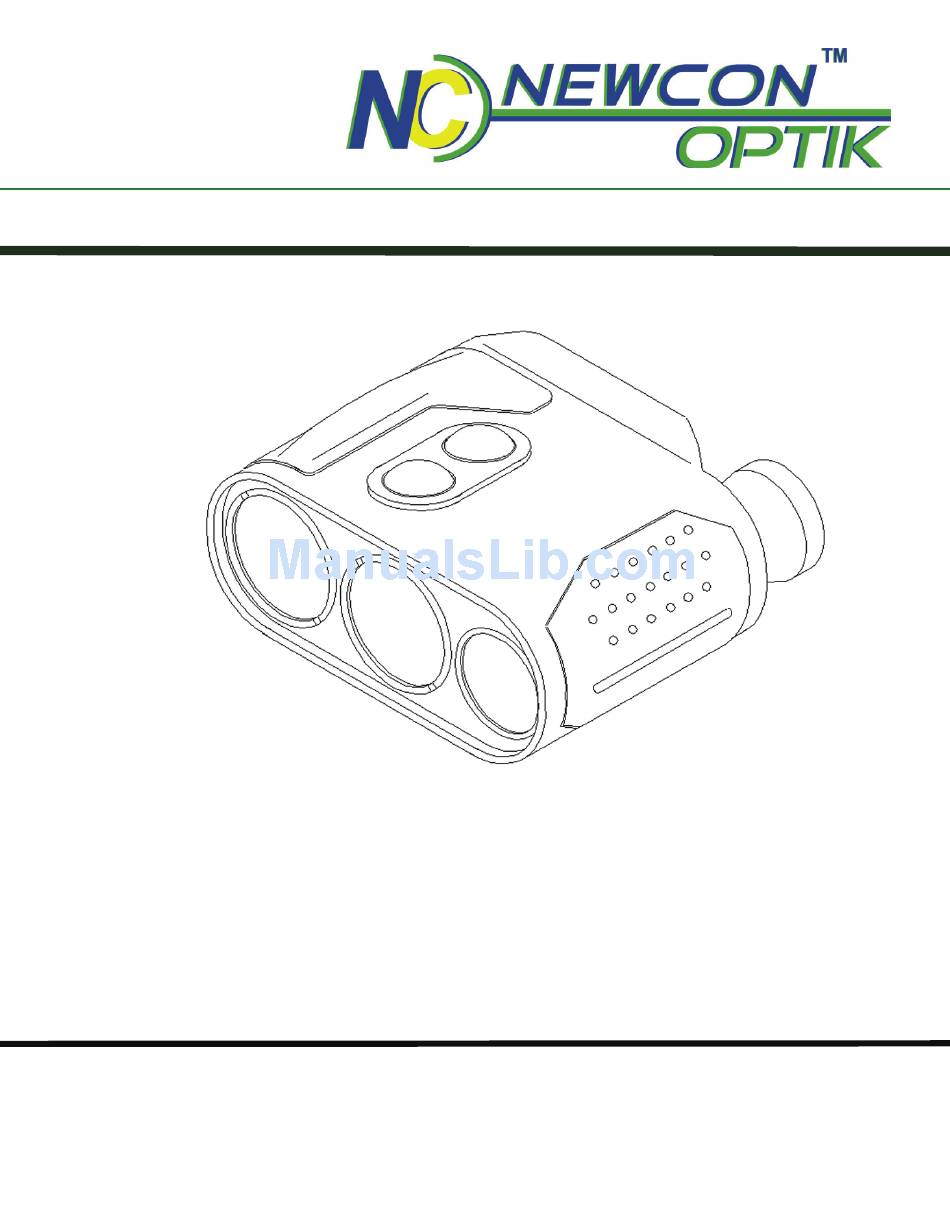

- Page 1 Operation Manual LRM 1200 / LRM 1500 LRM 1500SPD LASER RANGEFINDER MONOCULAR 105 Sparks Ave., Toronto, ON M2H 2S5, Canada...
- Page 3 IMPORTANT INFORMATION Read prior to activation You have just purchased a sophisticated electro-optical device that emits invisible laser radiation. To operate it properly, please, read this manual carefully. NEVER direct laser beam at the eyes of people or animals ...
-
Page 4: Table Of Contents
TABLE OF CONTENTS BRIEF DESCRIPTION..........2 Principle of operation........... 2 Key Features ............3 DEVICE APPEARANCE ........4 DELIVERY SET ............6 Standard delivery set..........6 SPECIFICATIONS ..........7 OPERATION INSTRUCTIONS......9 Changing battery..........10 Measuring procedure ......... 11 Maximum distance..........11 Mode selection........... -
Page 5: Brief Description
CAREFULLY READ ALL THE INSTRUCTIONS BEFORE USING THE UNIT! FAILURE TO OBEY THE INSTRUCTIONS WILL VOID THE WARRANTY AND MAY CAUSE INJURY! 1. BRIEF DESCRIPTION LRM 1200 / 1500 / 1500SPD Laser Rangefinder Monocular (the unit) is an advanced laser range finder system that enables instant distance and speed (1500SPD modification only) measurement. -
Page 6: Key Features
Key Features Distance is displayed in meters or yards Original digital circuitry allows ranging through most types of glass, bushes and other obstacles Three channel optical solution (optical, laser and receiver) provides high accuracy -¦- Two reticle shapes: or ... -
Page 7: Device Appearance

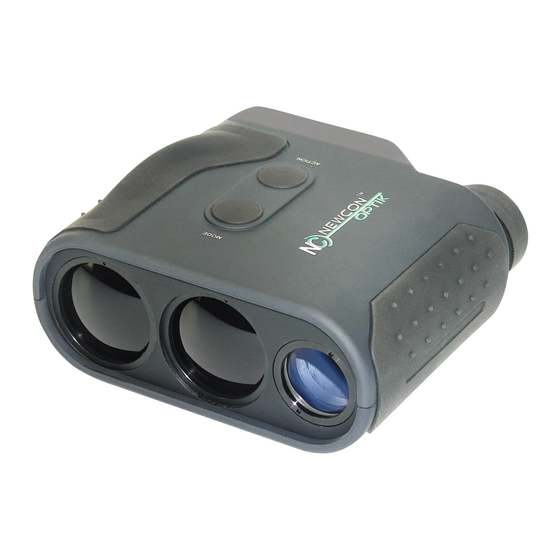

2. DEVICE APPEARANCE Fig. 1. Front view 1 - Eyepiece 2 - Objective lens 3 - Laser emitter lens 4 - Receiver lens 5 - M (Mode) button 6 - A (Action) button 7 - Body of the device 8 - Rubber grip... - Page 8 Fig.2. Rear view 1 - Eyepiece 9 - Battery compartment cover 10 - Tripod socket 11- Identification imprint 12 - Classification imprint, shown below...
-
Page 9: Delivery Set
3. DELIVERY SET Standard delivery set LRM 1200 / 1500 / 1500SPD is supplied in the following assembly: 9V Alkaline battery Soft carrying case Neck strap Operation manual Warranty card... -
Page 10: Specifications
4. SPECIFICATIONS Optics Magnification Objective lens diameter 25 mm Exit pupil diameter 3.6 mm Field of view 8 Type of coating Fully multi-coated optics Range Finder Laser Class 1, eye safe, 905 nm Measuring range, LRM 1200 20 m – 1,200 m Measuring range, LRM 1500, 1500SPD 20 m –... - Page 11 Speed Detector (LRM 1500SPD only) Measured speed range 5-400 km/h Accuracy ±2 km/h Power Battery 'Low Battery' indicator Environmental Operational temperature range -25 / +50 C (-13 / +122 Storage temperature range -45 / +65 C (-49 / +149 Mechanics Tripod thread ¼”...
-
Page 12: Operation Instructions
5. OPERATION INSTRUCTIONS Fig. 3. Liquid Crystal Display as seen through the eyepiece 1 – Low battery indicator -¦- 2 – Reticle (either or ) 3 – Units of measurement 4 – Measurement result 5 – Target quality indicator 6 – Laser active indicator 7 –... -
Page 13: Changing Battery
Changing battery To install a battery: Slide the battery compartment cover down (9, Fig. 2) Install the battery observing polarity Don’t apply superfluous strength while pushing the battery inside the compartment. Close the compartment cover If the battery does not fit the compartment easily, it means that polarity was reversed To take a battery out: ... -
Page 14: Measuring Procedure
Measuring procedure To start the measuring procedure, remove the lens cover. Look through the eyepiece (1, Fig. 1, 2) and adjust the focus by its rotating. When the Rangefinder is off the LCD is blank. To activate it press and hold A button (6, Fig. 1) for half a second. At start the unit comes into Ready to Measure mode indicated by the word ‘READY’... -
Page 15: Mode Selection
Target reflectivity depends on its color, surface finish, size, shape, position in relation to the laser beam, etc. Bright target colors are more reflective than darks. A polished surface is more reflective than a rough one. Larger targets reflect better than small ones. - Page 16 KMH/MPH: units of speed measurement: km/hour or miles/hour (3, Fig.3) (LRM 1500SPD only). Shape of the reticle: cross shape or rectangular shape (2, Fig.3). rEC1: Data Recall mode. It returns results of the last 10 measurements on the display. Measurement results are saved in on-board memory. When you enter the Data Recall mode, first measurement set number rEc 1 (display name:...
-
Page 17: Additional Display Information
Additional display information Distance measuring procedure includes instant statistical processing of the package of single measuring sessions. If there is more than one measured target in the field of view, the embedded software estimates the most probable one by calculating the number of reflected pulses multiplied by the target statistical weight. -
Page 18: Storage And Maintenance
6. STORAGE AND MAINTENANCE The unit is a sophisticated precision optical instrument equipped with laser and electronics. Therefore, it should be handled with due care. Keep away from direct sunlight. Avoid impacts, jolts, dust, moisture, and sharp changes of temperature. -
Page 19: Troubleshooting
7. TROUBLESHOOTING The ranging does not work. The display is transparent. Check the charge of the battery. Replace it if it is weak. Black dots are visible on LCD. Liquid Crystal Display may have small black dots, scratches and other blemishes inherited from the manufacturing process. These flaws are strictly regulated by number, area and location and do not degrade the product's measurement capabilities. -
Page 20: Warranty
Postage, insurance, and shipping costs incurred while presenting your NEWCON product for warranty service are your responsibility. If shipping from North America please include a cheque or money order payable to NEWCON OPTIK for the amount of US$15.00 to cover handling and return shipping. -
Page 21: Customer Support
9am-5pm, Monday - Friday, Eastern Standard Time. At no time should equipment be sent back to Newcon without following the instructions of our technical support department. NEWCON OPTIK accepts no responsibility for unauthorized returns. To locate NEWCON Authorized Dealer call: Tel: +1(416) 663-6963 Fax: +1(416) 663-9065 Email: newconsales@newcon-optik.com... -
Page 22: Quality Certificate
QUALITY CERTIFICATE LRM 1200 LRM 1500 LRM 1500SPD The unit indicated above has passed the quality inspection. Production date Serial number Quality Inspector Purchase date... - Page 24 NEWCON OPTIK Printed in Canada...
