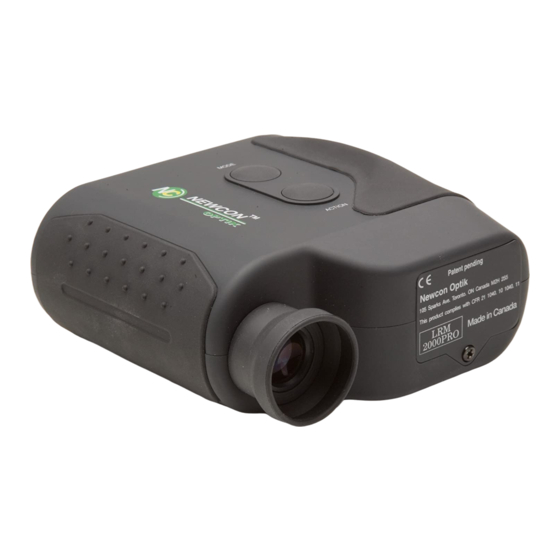

Newcon Optik LRM 2000PRO Operation Manual
  1. Manuals
  2. Brands
  3. Newcon Optik Manuals
  4. Monocular
  5. LRM 2000PRO
  6. Operation manual

Newcon Optik LRM 2000PRO Operation Manual

Laser range finder monocular
Hide thumbs Also See for LRM 2000PRO:

Advertisement

Quick Links

See also: Operating Manual
Operation Manual
LRM 2000PRO
LASER RANGE FINDER MONOCULAR
In USA: 3310 Prospect Ave. Cleveland, OH 44115
Newcon International ltd. © 2005
Printed in Canada
In Canada: 105 Sparks Ave., Toronto, ON M2H 2S5
