Summary of Contents for Vision CS-1600

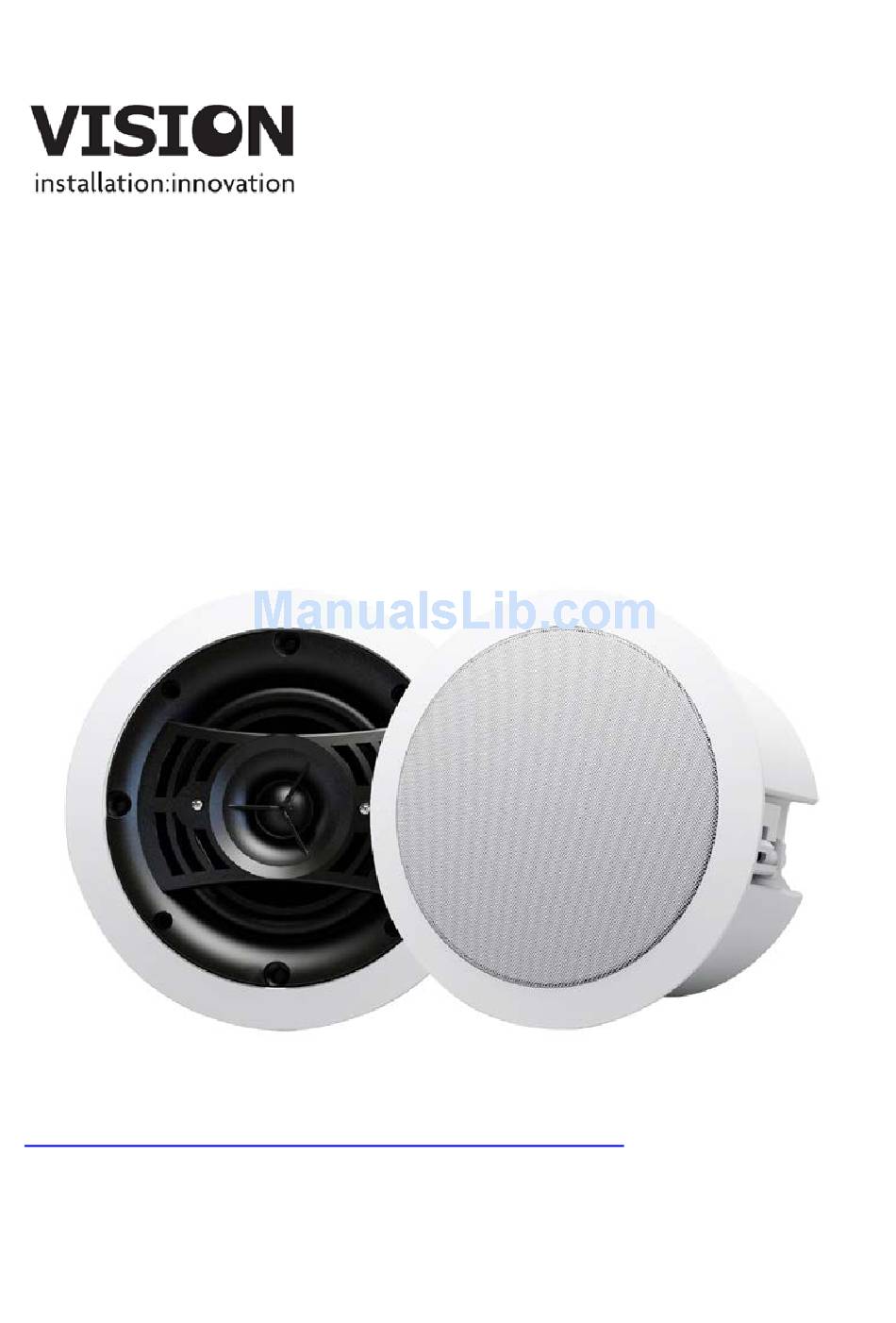

- Page 1 CS-1600 OWNERS MANUAL www.visionaudiovisual.com/techaudio/cs-1600 CS-1600_manual_en...
- Page 2 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH.
- Page 3 PLACE OF INSTALLATION Avoid installing this product under the following conditions: • Moist or humid places • Places exposed to direct sunlight or close to heating equipment • Extremely cold locations • Places subject to excessive vibration or dust • Poorly ventilated places Do not expose this product to dripping or splashing.
- Page 4 INSTALLATION PLACE LOUDSPEAKERS Ensure even spacing throughout room for even dispersion. Check there is enough distance (> 130 mm) above the ceiling tile to accommodate the loudspeakers CUT HOLES IN CEILING TILES Remove the ceiling tiles and make 200mm circular holes. REMOVE GRILLES Carefully prise metal grilles from loudspeakers.
- Page 5 TROUBLESHOOTING If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately. Problem Correction Sound only coming out Turn off amplifier and switch output connections. If the side •...
- Page 6 SPECIFICATIONS LOUDSPEAKER DIMENSIONS 230 x 128mm (9 x 5″) CUTOUT SIZE: 200mm (7 7/8″) SPEAKER WEIGHT: 3.2kg (per pair) POWER HANDLING: 30W RMS WOOFER: 6.5″ TWEETER: 1″ Silk SPEAKER TERMINALS: Bare-wire spring type NOMINAL IMPEDANCE: 8 ohms SENSITIVITY: 90dB (1w/1m) FREQUENCY RESPONSE: 70Hz-20kHz COMPLIANCES: RoHS &...
- Page 7 WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
