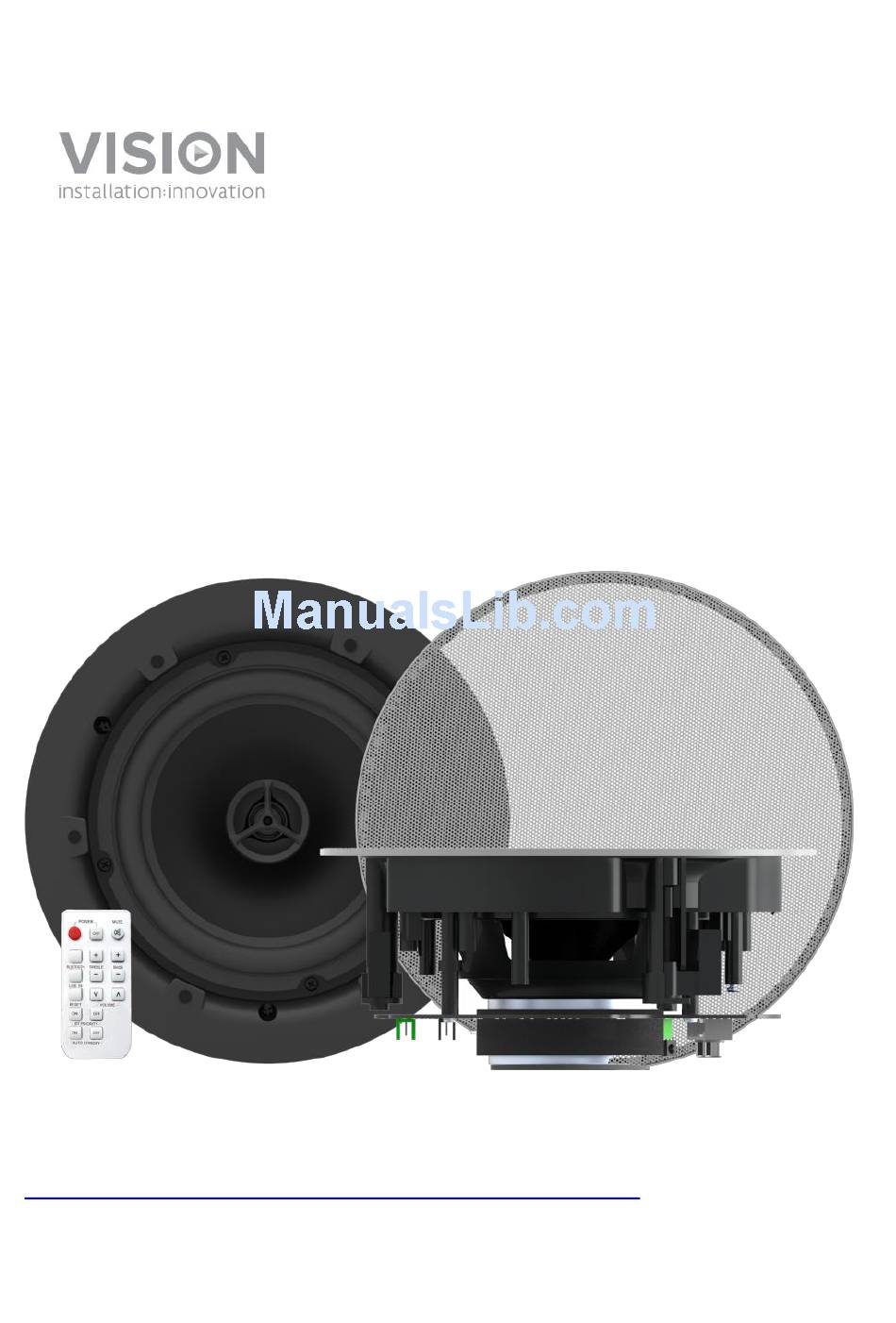

- Page 1 CS-1800P POWERED SPEAKERS OWNERS MANUAL www.visionaudiovisual.com/techaudio/cs-1800p CS-1800P_manual_en...
-
Page 2: Declaration Of Conformity
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by „Vision‟ who is wholly owned by „Azlan Logistics Ltd.‟, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Place Of Installation
WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair. - Page 4 CONNECTIVITY Line-level Input (2-phono or Minijack) Master From phone or laptop headphone jack, or Blu-ray Daisy-chain IN (3.5mm minijack) This input only works when IR switch is OFF. Do not connect a phone or laptop IR Receiver Switch directly to this input. Daisy-chain OUT (3.5mm minijack) Power Input...
-
Page 5: Daisy-Chain
All “slave sets” need IR switch set to OFF which disables phono input and activates minijack input. IN – receives post-mix line-level signal from another CS-1800P set. Any set receiving signal via this input is “slave set". This input only works when IR receiver switch set to OFF. -
Page 6: Auto Standby
AUTO STANDBY Use AUTO STANDBY on remote control to enable auto standby feature. This turns the loudspeakers to standby after 30 minutes of inactivity. REMOTE CONTROL POWER On / Off INPUT SELECT Bluetooth / Line-level (cabled) input RESET tone factory reset BLUETOOTH PRIORITY auto-switches when BT device paired AUTO STANDBY activate or deactivate MUTE... -
Page 7: Installation
INSTALLATION CUT HOLES IN CEILING TILES Draw around the cardboard template included (the circle will have diameter 198 mm / 7.8"). Cut along this line. NOTE: These loudspeakers can only be fitted where there is a false ceiling. REMOVE GRILLE Remove from loudspeakers. CS-1800P_manual_en... - Page 8 LOOSEN CLAMPS Loosen screws shown. The mounting clamps will turn in. CS-1800P_manual_en...
- Page 9 PUT INTO CEILING TILE Tighten screws as below. The mounting clamps automatically turn out and tighten down on ceiling tile. PUT GRILLE ON It is held in place by magnets. NOTE: These loudspeakers are not waterproof and are not designed to work in high humidity areas.
-
Page 10: Status Indicators
Flashing quickly: IR from remote control being received On: loudspeakers off CHANGING BLUETOOTH NAME CS-1800P uses Bluetooth 4.0 LE. Where you have multiple sets in close proximity you may want to rename them. SELECT BLUETOOTH INPUT on the CS-1800P remote control to put in pairing mode. - Page 11 RS-232 CODES This product can be controlled with the included remote control or by a professional AV control system using RS-232 codes. HEX Codes On Remote Function 95 11 11 Bring out of standby 95 15 15 Put into standby Mute on/off 95 05 05 MUTE...
- Page 12 95 AC AC Volume Step 12 95 AD AD Volume Step 13 95 AE AE Volume Step 14 95 AF AF Volume Step 15 95 B0 B0 Volume Step 16 95 B1 B1 Volume Step 17 95 B2 B2 Volume Step 18 95 B3 B3 Volume Step 19 95 B4 B4...
-
Page 13: Troubleshooting
TROUBLESHOOTING If your system is not operating properly, please refer to the following information. Problem Correction Check power source and power input cable No power light Check fuse in power cable plug Check battery in remote Turn the volume up with remote. Power light on but no sound Make sure the output volume on your test device is at full and... -
Page 14: Specifications
Laptop-style transformer. Includes 4 x 0.5m figure-8 power cables: UK/EU/US/AU. DC tail length: 4m. Transformer dimensions: 120 x 52 x 32 mm / 4.72″ x 2.0″ x 1.2″ WARRANTY: Lifetime return-to-base 2 years onsite (UK only) COMPLIANCE: RoHS, CE/EMC, IEC, FCC, SIG, RCM, TVC ORDER PART CODE: CS-1800P [SAP: 3715630] CS-1800P_manual_en... - Page 15 Some Vision products are very technical and require troubleshooting all elements of the installation as it may not be the Vision product at fault. Because of this the manufacturer may refuse to replace the item if an adequate description is not provided.
- Page 16 LEGAL DISCLAIMER: Because we are committed to improving our products, the details above may change without prior warning. This User Manual is published without warranty and any improvements or changes to the User Manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made at any time and without notice.
