Summary of Contents for Shoprider QT3
-

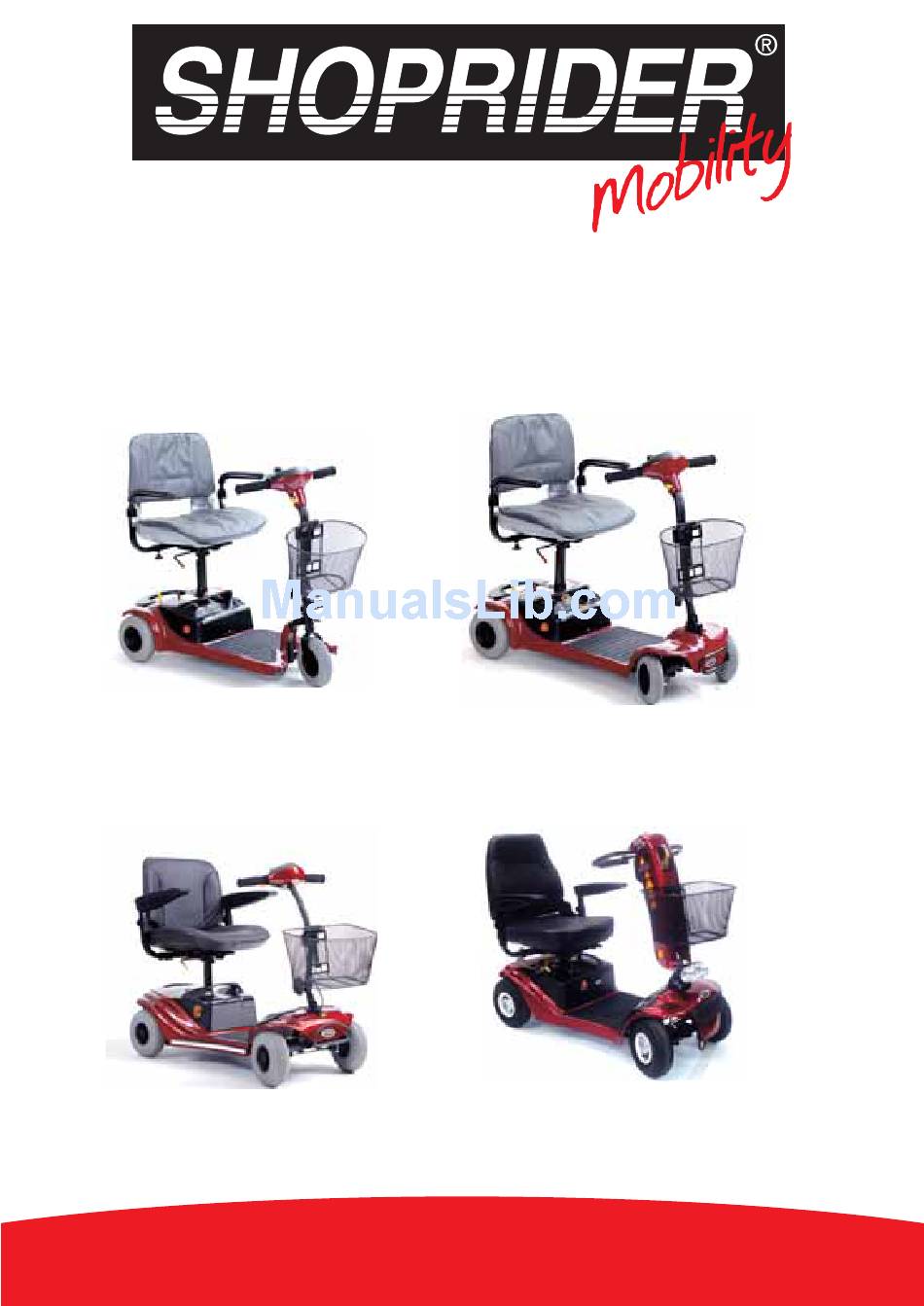

Page 1: Owners Manual
OWNERS MANUAL MODELS GK10 RELIABLE MOBILITY GUARANTEED... - Page 2 With careful reading of this manual and not exceeding the parameters set down in this manual you can ensure that your SHOPRIDER ® scooter will give you years of trouble free service and enjoyment.
-
Page 3: Safety Rules
Safety Rules Please use your SHOPRIDER® scooter often and let it expand your horizons. The more mobility your SHOPRIDER brings the happier we will be! But as with all things, observing a few rules will ensure safe scootering. So please take the time to read and fully understand each rule below. -
Page 4: Emi Warning
Australian standard. The intensity of the interfering EMI energy can be measured in volts per meter (V/M). Each SHOPRIDER® scooter can resist up to a certain intensity. This is this time current technology is capable of achieving 20V/M immunity level which will provide useful protection from the more common sources of radiated EMI. - Page 5 Report all incidents of unintended movement or braking to your Shoprider® provider, and note whether there are sources of EMI nearby. If your scooter does unexpectedly stop then turn the key off, Wait for a few seconds and turn the key back on.
-
Page 6: Scooter Tiller Controls
Scooter Tiller Controls Speed Control Dial The speed control dial allow the scooter to set the speed between 1 (minimum) and 10 (maximum). Battery Level Indicator There are two types of battery level indicators available on the models in this manual please refer to the indicator like the model you have. -
Page 7: Free Wheel Operation
The anti-tip wheels are located at the rear of the scooter frame. The anti-tip wheels are removable on some models. The scooter should not be used unless the ant-tips are fitted. Shoprider® is not responsible for the damage or injury due to improper or misuse of the scooter. -
Page 8: Operating Your Shoprider® Scooter
Operating Your Shoprider® Scooter Mounting the Scooter For your first lesson be sure you and your Shoprider® are on a level surface with plenty of room to test drive the scooter (ensure the key is not in the scooter) Mount the scooter, either by lifting the armrest and sliding on to the seat or rotate the seat by lifting seat swivel lever and then rotate to face the tiller. - Page 9 Always drive your scooter straight up the incline. This will reduce the possibility of the scooter tipping. CAUTION: Do not drive your Shoprider® across the side of an incline Do not stop if possible while driving up or down an incline. Use 7-10 setting on your speed dial when going up an incline and 1-4 when going down the incline.
- Page 10 If your scooter has the 8 light LED charge level indicator it will require urgent recharging when the last LED starts flashing QT3 / QT4 Place the MALE socket of the battery charger into the female socket on the battery pack taking care to ensure that the pins line up correctly.
- Page 11 Onboard or Off-board Charge the batteries completely (12 to 16 hours) prior to first time use. Prior to charging please ensure the key is turned off and removed from the scooter. Your Shoprider can not over charge your batteries.
-
Page 12: Transporting Your Scooter
To split the scooter use the red or yellow release lever to release the motor section and lift up to separate. (As indicated in figure #3) Fold the front tiller down onto the QT3 , QT4 & GK9 scooters after turning the tiller knob anti clockwise until the small teeth disengage. (As indicated in figure #4) The GK10 has a red tiller lever disengage by moving the red lever to disengage the pin.(refer figure #4A) - Page 13 Transporting Your Scooter (continued) FIGURE #2A BATTERY REMOVAL GK9/GK10 FIGURE #4A TILLER LOCK LEVER GK10...
- Page 14 Transporting Your Scooter (continued) Free wheeling Device The scooter can be moved manually by moving the free wheeling lever (as indicated figure #7) This located on the rear section of the scooter and is the Yellow lever. To free wheel the scooter push the Yellow lever towards the front of the scooter. To engage the brake pull the lever towards the back of the scooter.
-
Page 15: Care And Maintenance
Care & Maintenance Wheels and Tyres (GK10only) The wheels of your Shoprider® scooter have split rims. This allows any punctures to be repaired easily. To change the wheels remove the center 13 mm bolt and slide the wheel off its axle. Take care not to lose the drive key on the rear wheels. -
Page 16: Troubleshooting Information
Trouble Shooting Information Circuit Breaker Your Shoprider® scooter is fitted with the latest in electronic controls that are programmed to protect the electrical system from abnormal overloads. Fitted for extra protection is a circuit breaker, should there be a situation that your scooter stops please check that the circuit breaker has not popped out or tripped. -
Page 17: Technical Specifications
Driver weight may exceed weight of unit: speed must be reduced when turning. DISCLAIMER Congratulations on your purchase of the Shoprider® It is not intended to be used by individuals with physical limitations that could prevent the user from operating this unit safely. Shoprider® disclaims all responsibility for any personal injury or property damage, which may occur as a result of improper or unsafe use of its products. - Page 18 You can rely on Shoprider www.shoprider.com.au Ask for the brand Shoprider! RELIABLE MOBILITY GUARANTEED...
