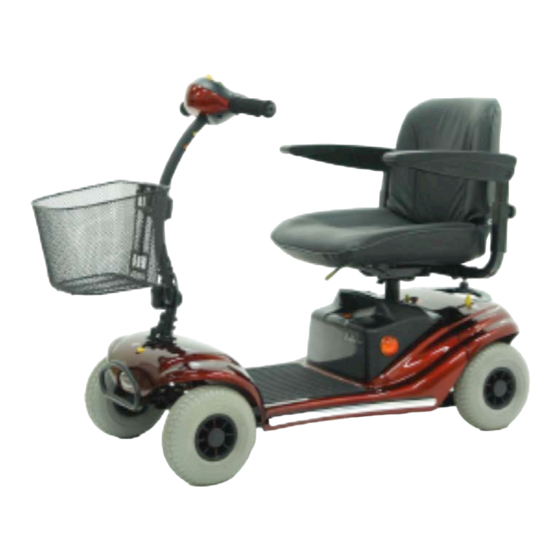

- Page 1 Start 8 ™ Model # GK9 Portable Scooter User Manual 7/8/2009SE...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION…………………………………………………………….…………3 FEATURE GUIDE…………………………………………………………….………..3 SAFETY ADVICE………………………………………………………………….…...4 EMI WARNING………………………………………………………….…………….. ADJUSTMENTS………………………………………………….……………………..7 SCOOTER TILLER CONTROLS………………………………….…………………..1 DRIVE/FREEWHEEL OPERATION…………………………………………………10 STARTING TO DRIVE YOUR SCOOTER………………………………………….11 EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER……………….12 TRANSPORT/STORAGE……………………………………………………………..13 BATTERIES AND BATTERY CHARGING………………………………………….14 MAINTENANCE………………………………………………………………………..15 TROUBLESHOOTING GUIDE……………………………………………………….15 TECHNICAL SPECIFICATIONS……………………………………………………..16 QUARTERLY INSPECTION…………………………………………………………. NOTES………………………………………………………………………………. -
Page 3: Introduction
INTRODUCTION Congratulations on your purchase of the Shoprider® Start 8 8 Portable scooter. The Start 8 is the ultimate combination of style, comfort and portability. The Start 8 includes several innovative and convenient features. The Start 8 goes with you wherever you go and can be assembled or disassembled in just seconds with wireless quick-connect components. -
Page 4: Safety Advice
• Make sure the tiller is properly adjusted to the user or damage and injury could result. • DO NOT transport in a vehicle WHILE seated on the scooter. Shoprider® will not be responsible for any injury or damage that might result. -
Page 5: Emi Warning
EMI WARNING Shoprider® scooters may be susceptible to electromagnetic interference (EMI), which is a kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. The interference (from radio wave sources) can cause the scooter to release its brakes, move by itself, or move in unintended directions. - Page 6 EMI. NOTE! There is no easy way to evaluate the overall immunity of the scooter. 5. Report all incidents of unintended movement or braking to your Shoprider® provider, and note whether there are sources of EMI nearby.
-
Page 7: Adjustments
ADJUSTMENTS Tiller Angle Adjustment (Fig 2) At the base of the tiller is a round knob. Turn the knob counterclockwise to loosen the tiller and select the desired tiller angle. Turn the knob clockwise to securely lock the tiller into place. NOTE: For Safety, this lock is designed to break away if the scooter is driven when locked. -
Page 8: Adjustments 7
Seat Height Adjustment (Fig 5) Remove seat as described (fig 4). Remove battery pack (refer to disassembly section). Using two 13mm wrenches, remove locking bolt and nut. Adjust seat post up or down to desired position. The seat height can be adjusted to five different positions by inserting the locking bolt in the desired hole. -
Page 9: Scooter Tiller Controls
SCOOTER TILLER CONTROLS (FIG 7) Speed Controls The speed control allows you to set a speed between slow (turtle) and fast (rabbit). Battery Level Indicator Gauge Where the needle sits, shows the amount of charge left in your batteries. The amount of charge will only show at its true level when the scooter is in drive. -
Page 10: Drive/Freewheel Operation
The scooter serial number is located on the seat post and consists of a combination of 13 numbers and letters. Shoprider recommends that you write the serial number down on the back of this manual for future reference. Refer to Fig 5. -
Page 11: Starting To Drive Your Scooter
STARTING TO DRIVE YOUR SCOOTER First Time Use Prior to using your Start 8 Portable scooter for the first time, you must charge the batteries fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging the batteries completely prior to first time use will benefit battery efficiency. Failure to do so may cause permanent damage. -
Page 12: Extra Guidelines In The Control Of Your Scooter
EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER Ramps The stability of your scooter is governed by several factors such as the seating position, the angle of the slope and your height and weight. When approaching an incline, do so directly and not at an angle and where ever possible avoid making turns. -
Page 13: Transport/Storage
TRANSPORT / STORAGE The Start 8 Portable scooter is designed to be quickly and easily disassembled into sections for transportation and storage. Follow these simple guidelines for disassembly: Start 8 8 Disassembly (Fig 10 & 11) 1) Remove the front basket: Lift basket up and off. -
Page 14: Batteries And Battery Charging
BATTERIES AND BATTERY CHARGING The Shoprider® Start 8 Portable scooter is supplied with maintenance-free, sealed lead acid batteries. For easy handling, the batteries are contained within a battery pack. Battery life and performance may be affected by temperature, terrain, condition of battery, the weight of the user, care of batteries, and other conditions. -
Page 15: Maintenance
If the batteries are weak, severely discharged or old, a variety of problems may occur with the unit including charging problems, reduced speed, loss of range, and others. Please contact your local Shoprider® provider for battery replacement. -
Page 16: Technical Specifications
_V_Ah x Pcs Amps % ( º ) varies with the weight of miles inches Type Start 8 GK9 (SE) 41.3” x 22” x 35” 2 , 9” 2 , 9” MAX 300 12V 21Ah x 2 Off Board 3-Amp 0.75... -
Page 17: Quarterly Inspection
QUARTERLY INSPECTION For your own safety, quarterly inspection and service on the product has to be performed and signed by an authorized provider. Maintenance records (below) should be kept at all times. The manufacturer / distributor / vendor will be indemnified from any product liability claim if the above maintenance / service requirement is not met. -
Page 18: Notes
NOTES: 7/8/2009SE... -
Page 19: Warranty And Disclaimer
It is not intended to be used by individuals with physical limitations that could prevent the user from operating this unit safely. Shoprider® disclaims all responsibility for any personal injury or property damage, which may occur as a result of improper or unsafe use of its products.
