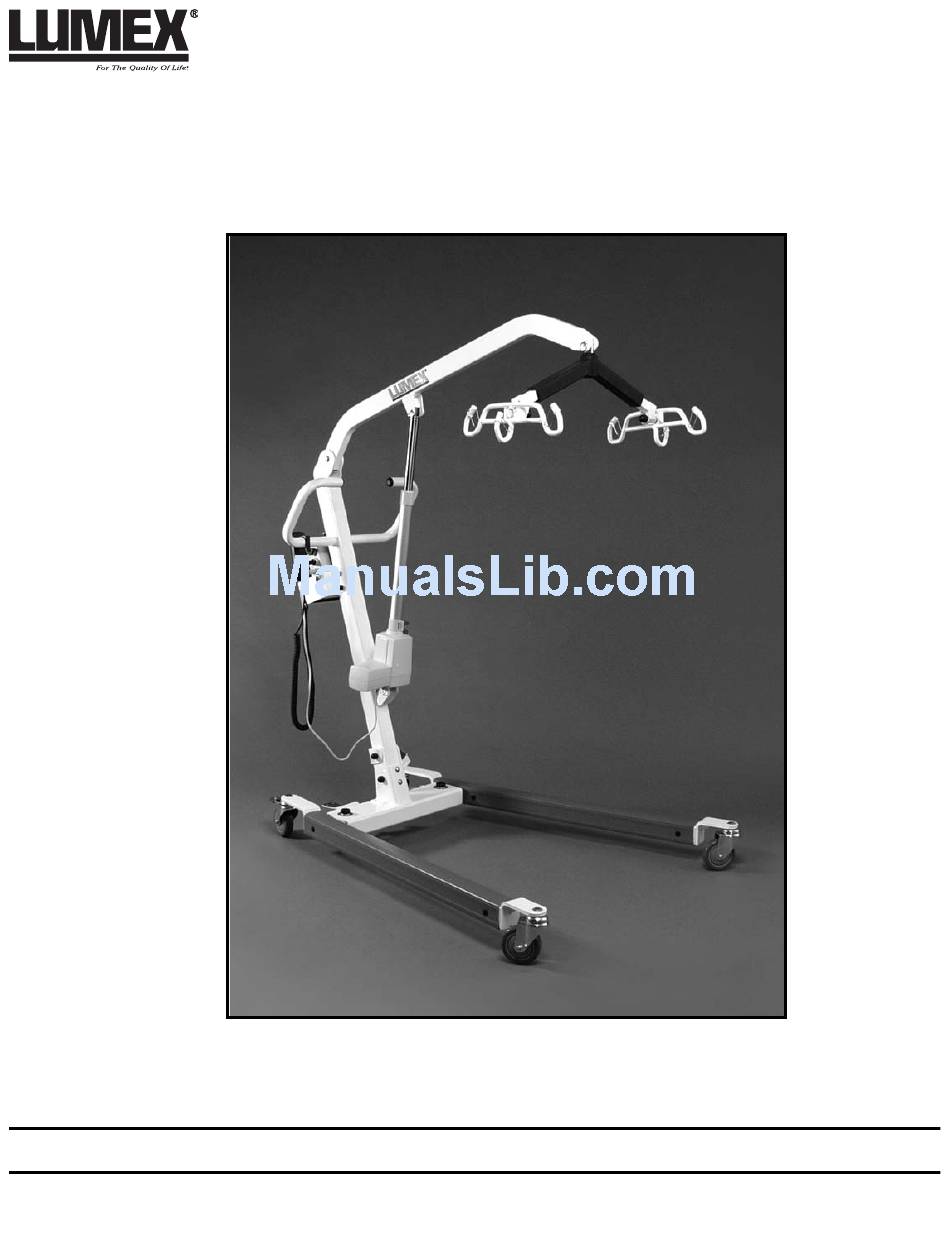

- Page 1 LF1090 BARIATRIC PATIENT LIFT OWNER’S MANUAL LF1090-INS-LABRevA05 © Graham-Field Health Products 2005 IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR PATIENT LIFT...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..............4 SPECIAL NOTES . -
Page 4: Introduction
It is important that you use correct slings adapted to This guide covers the use of the LF1090 Bariatric the body shape and weight and ability of the patient Patient Lift. Keep in mind that the basic safety and the specific type of transfer needed. -
Page 5: Safety Precautions
IMPORTANT: Before using patient lift, please read you experience any malfunction, contact your and adhere to the following safety precautions and Lumex dealer immediately, as a hazardous warnings. Failure to do so could result in serious condition could result, causing personal injury or injury or damage to your patient lift. - Page 6 Warning: Unauthorized modification of your patient lift or the use of non-Lumex replacement Warning: Do not lock the brakes or block the parts may change the structure of the lift and could wheels when lifting.
-
Page 7: Features
1. Check for any obvious damage to the carton or its contents. If damage is evident, notify the Storage carrier or your authorized Lumex Dealer. 1. Store the repackaged patient lift in a dry area. 2. Remove all loose packing from the carton. -
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Warning: The lift is heavy. Therefore, avoid injury and DO NOT attempt to remove the lift from the box without assistance. 1. Raise Mast from base 2. Tighten mast connection to base with bolts and nuts provided 3. Attach boom to top of mast 4. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Preparation Before Lifting 1. Turn on the power by twisting the RED RESET 3. After the battery indicator lights go out, push the BUTTON clockwise. UP button and the DOWN button on the hand control and ensure that the lift is operating 2. - Page 10 9. Feed the leg sections under the thighs. 10.From between the legs, gently pull the leg Warning: Use ONLY Lumex slings/products section up the inner thigh. with Lumex equipment. LF 1090 Bariatric Patient Lift Owner’s Manual...
- Page 11 4. Do not use the lift when no “GREEN” light is 9. Unplug the charger first before using the lift. shown. Charge the batteries immediately. THE LF1090 BARIATRIC PATIENT LIFT WILL 5. Replace batteries when frequent charging is NOT OPERATE WHILE CHARGING.
-
Page 12: Care And Maintenance
Under normal use, your Lumex patient lift was Care of sling designed with minimum maintenance in mind; Lumex slings are easy to use. They are washable at however, a six (6) month check and lubrication 150° F. The slings can be dried by using a dryer on should ensure that your patient lift will remain in LOW heat or by hanging. -
Page 13: Maintenance Schedule
MAINTENANCE SCHEDULE Note: Only qualified persons should service and repair your Lumex patient lift. Regular maintenance of your patient lift is necessary to ensure continuing proper and safe operation. Read and observe the following recommended maintenance schedule: Inspect Inspect/ Inspect/... -
Page 14: Troubleshooting
TROUBLESHOOTING Warning: If you experience a problem with your lift and are unable to service it yourself, contact your Lumex dealer. Symptom Possible Cause Action Battery discharged Charge battery Control box is not responding and Battery charger defective Replace battery charger... -
Page 15: Specifications
SPECIFICATIONS Note: All dimensions given in inches unless otherwise specified. LF1090 BARIATRIC PATIENT LIFT Base width Weight capacity Open: 43" 600 lbs. Closed: 26" Rear locking caster size Base height 4" diameter (Clearance): 6" Front caster size Overall base length 4"... -
Page 16: Limited Warranty
Graham-Field warrants the LF1090 Bariatric Patient WARRANTY SHALL BE LIMITED TO SUCH Lift against defects in materials and workmanship REPAIR, REPLACEMENT AND/OR REFUND. - Page 17 THE FOREGOING WARRANTY IS EXCLUSIVE GRAHAM-FIELD SHALL NOT BE LIABLE FOR ANY AND IN LIEU OF ALL OTHER EXPRESSED CONSEQUENTIAL OR INCIDENTAL DAMAGES WARRANTIES AND IMPLIED WARRANTIES, WHATSOEVER. INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND This warranty gives you specific legal rights and you FITNESS FOR A PARTICULAR PURPOSE, AND may also have other legal rights, which vary from SHALL NOT EXTEND BEYOND THE DURATION...
- Page 19 NOTES...
- Page 20 U.S.A., Corporate Headquarters: Graham-Field Health Products 2935 Northeast Parkway Atlanta, Georgia 30360 telephone: 800-347-5678, 770-447-1609 fax: 800-726-0601, 678-291-3232 http://www.grahamfield.com...
