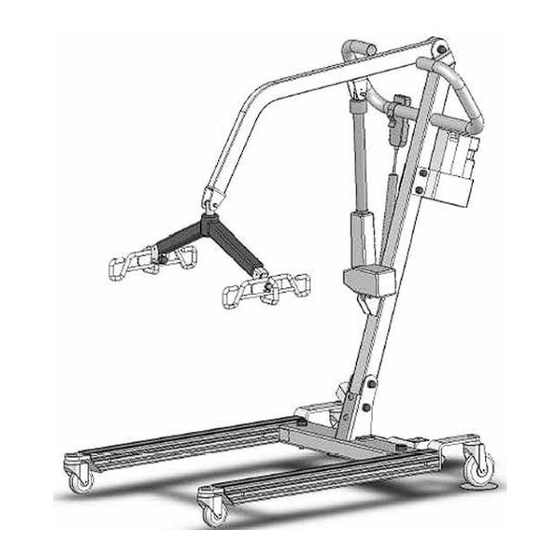

- Page 1 LF1050 PATIENT LIFT USER MANUAL LF1050-INS-LAB-RevH18 Read this manual before operating your Patient Lift. Save this manual for future use.
-
Page 2: Table Of Contents
AT LEAST ONCE A MONTH ....................17 LUBRICATION ......................... 17 CLEANING ..........................18 CARE OF SLINGS ........................18 MAINTENANCE SCHEDULE ....................18 8 TROUBLESHOOTING ........................19 9 SPECIFICATIONS ......................... 20 10 LIMITED WARRANTY ........................21 11 INDEX ............................23 LF1050-INS-LAB-RevH18... -
Page 3: Introduction
“operator” or “attendant”. Intended use The Lumex LF1050 Patient Lift is intended to aid in the transfer of an individual who is unable to independently transfer between bed, chair, bathtub, wheelchair, and/or commode. -
Page 4: Safety Precautions
WARNING: Important! Read and understand these instructions before assembling or using the Lumex LF1050 Patient Lift. If you do not understand any part of these warnings, cautions or instructions, contact a healthcare professional for direction in the use of this product. - Page 5 WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov. WARNING: GF Health Products, Inc. specifically disclaims responsibility for any bodily injury or property damage which may occur during any use which does not comply with federal, state or local laws or ordinances. LF1050-INS-LAB-RevH18...
-
Page 6: Features
Boom b. Mast c. Base d. Spreader bar e. Pendant f. Actuator g. Control box h. Caster brake i. Front caster j. Emergency Lowering Device CONTROL BOX COMPONENTS RESET Button Battery Testing Charger Plug-in Pendant Plug-in Actuator Plug-in LF1050-INS-LAB-RevH18... -
Page 7: Handling Procedures
1. Examine the exterior of the patient lift for nicks, dents, scratches or other damage. 2. Inspect all components. Storage 1. Store the repackaged patient lift in a dry area. 2. DO NOT place other objects on top of the repackaged patient lift. LF1050-INS-LAB-RevH18... -
Page 8: Assembly Instructions
3. Pull the mast, boom, and spreader bar to an upright position, as shown above. 4. Reinstall the bolts in the holes at bottom of mast. Tighten the nuts. 5. Attach the control box hanging bracket to the mast, as shown above. Tighten the nuts. LF1050-INS-LAB-RevH18... - Page 9 8. Attach the actuator top to the boom bracket and insert retainer pin, as shown above. Insert retaining ring through retainer pin hole to secure actuator top to boom bracket. LF1050-INS-LAB-RevH18...
- Page 10 10. Insert the actuator plug into the control box, as shown above. 11. Insert the pendant plug into the control box, as shown above. Info: Before using the lift, charge the batteries for ten to twelve hours (see instructions on following page). LF1050-INS-LAB-RevH18...
-
Page 11: Charging The Batteries
6 beeps per second Very low battery (no lights illuminate) Charge batteries immediately 3 beeps every other second Bad battery (no lights illuminate) Replace batteries immediately 3 long beeps Overloaded. Batteries are charged but Maximum load capacity exceeded lift does not lift LF1050-INS-LAB-RevH18... -
Page 12: Operating Instructions
WARNING: During lifting and lowering, whenever possible, always keep the base legs of the lift in the widest position. WARNING: Use only Lumex slings specially designed for the Lumex LF1050 Patient Lift. WARNING: Do not put anything (e.g. cushion, pad, etc.) between the user and the sling. - Page 13 3. Lift the patient up above the floor. Position the patient in the sling by pulling the handle on the back of the sling. 4. Turn the patient to face the lifting column. Remove pillow from base and place the patient’s feet on the base, straddling the column for extra stability. LF1050-INS-LAB-RevH18...
- Page 14 Info: If possible, the patient should be encouraged to take an active part in removing the sling. The patient can lean forward, lift their thighs, and help in removing the leg sections. LF1050-INS-LAB-RevH18...
- Page 15 12. When patient is seated, push down on boom to slacken sling loops. Patient can remain seated on sling. 13. For commode chair use, adjust clothing before moving lift to straddle commode chair. Keep sling loops taut and ensure that patient is in a comfortable position. LF1050-INS-LAB-RevH18...
-
Page 16: Emergency Release
EMERGENCY RELEASE In case of lift failure while using the Lumex LF1050 Patient Lift, follow the procedure below to safely lower the user. The Emergency Lowering Device is located at the top of the actuator shaft. It is intended for use if the actuator fails to operate while a patient is suspended. -
Page 17: Care And Maintenance
CARE AND MAINTENANCE Proper care and maintenance are essential to keeping your Lumex LF1050 Patient Lift in a safe operating condition. In addition to inspecting the unit before each use, periodic maintenance checks should be done. WARNING: It is extremely important that the patient lift be inspected before each use. -
Page 18: Cleaning
NOTICE: DO NOT wash patient lift under water pressure or steam clean. CARE OF SLINGS Lumex slings are washable at 120°F or less. If there is a removable plastic insert in the head support, remove insert before washing. Air dry. -
Page 19: Troubleshooting
The following list of encountered problems and their solutions will assist you in determining what may be causing your Lumex lift not to function as designed. If you have a problem occurring which is not listed below, contact GF Tech Support at 1.770.368.4700 for further information. Do not attempt to repair components or parts on your lift, as this may invalidate your warranty or cause further problems that may result in patient injury. -
Page 20: Specifications
Info: As measured from sling hooks. Range: 42" Mast height 50" Maximum weight capacity 400 lb (181 kg), EVENLY DISTRIBUTED Caster size 4" diameter locking; 3" diameter non-locking Lifting mechanism 24 DC actuator Battery charger AC 110V / 220V to DC 24V 1 amp LF1050-INS-LAB-RevH18... -
Page 21: 10 Limited Warranty
GF; 6) Any labor or shipping charges incurred in the replacement part installation or repair; 7) Costs and expenses of regular maintenance and cleaning; and 8) Representations and warranties made by any person or entity other than GF. LF1050-INS-LAB-RevH18... - Page 22 Failure to abide by those regulations may result in a denial of the freight claim. GF will assist you in filing the freight claim. 3) Claims for any short shipment must be made within three (3) days of the invoice date. LF1050-INS-LAB-RevH18...
-
Page 23: 11 Index
Lowering the patient to the floor 14 Lubrication 17 Maintenance schedule 18 NOTICE statement, significance 4 Operating Instructions 12 Removing the sling 14 Safety precautions 4 Safety statements, significance of 4 Shipping and transportation instructions 7 Specifications 20 Storage 7 LF1050-INS-LAB-RevH18... - Page 24 The most current and complete product information can be found on our website. www.grahamfield.com © 2005, GF Health Products, Inc. All Rights Reserved. Graham-Field and Lumex are trademarks of GF Health Products, Inc., One Graham-Field Way, Atlanta GA 30340-3140 GF Health Products, Inc. is an ISO 13485 Certified Company.
