Lumex Series 588W
Bariatric Clinical Care Recliner
Operating Instructions
CLASS 1 EQUIPMENT - ORDINARY - TYPE B
IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX 588W BARIATRIC
CLINICAL CARE RECLINER.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT
www.grahamfield.com.
588W-INS-LAB-RevE21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lumex 588W Series
Summary of Contents for Lumex 588W Series

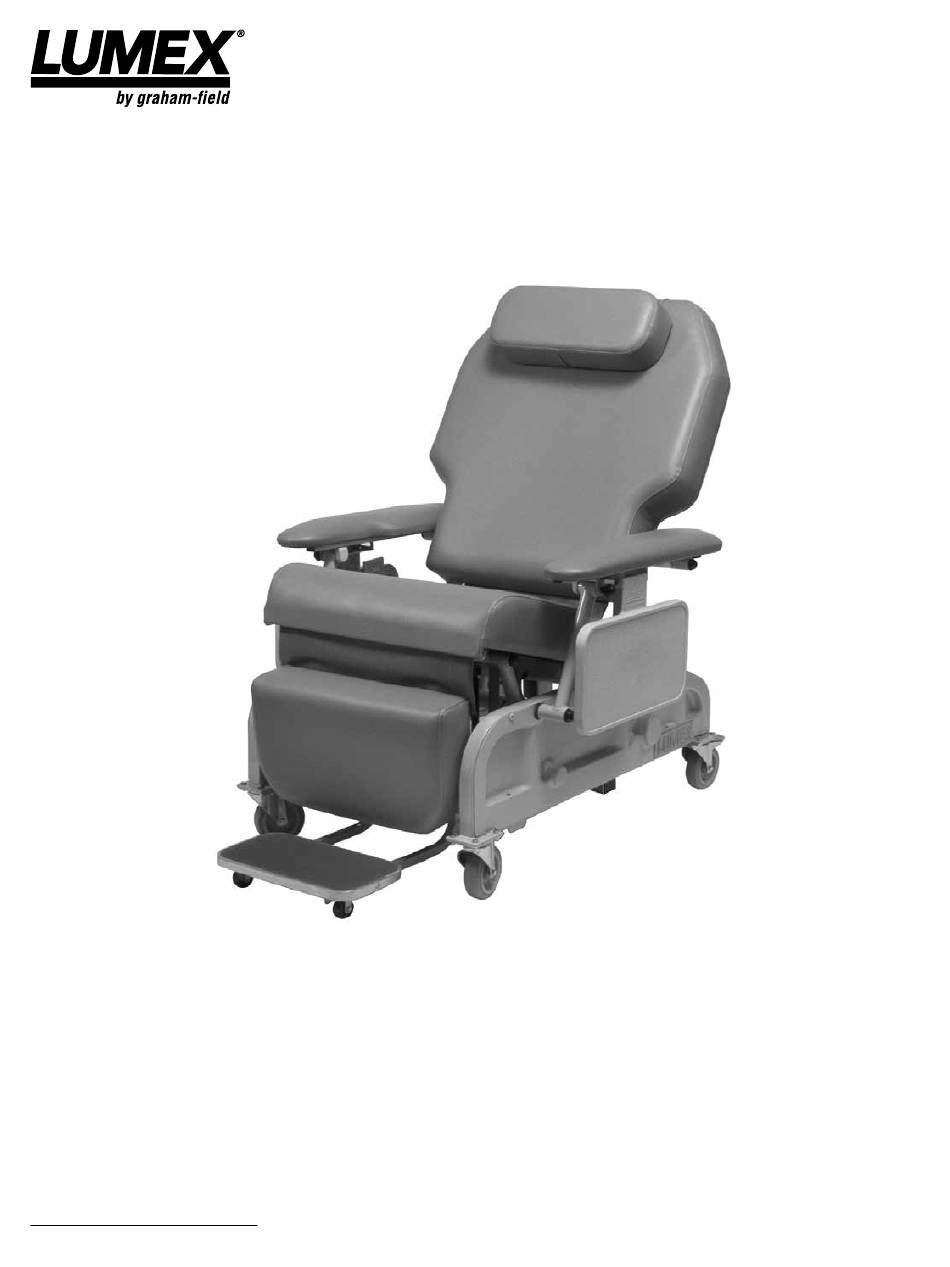

- Page 1 Bariatric Clinical Care Recliner Operating Instructions CLASS 1 EQUIPMENT - ORDINARY - TYPE B IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX 588W BARIATRIC CLINICAL CARE RECLINER. SAVE THIS MANUAL FOR FUTURE USE. THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT www.grahamfield.com.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ...............................3 INTENDED USE ..............................3 IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE ............. 3 WARNINGS ................................3 PRODUCT DESCRIPTION ............................5 ASSEMBLY ................................6 UNPACKING...............................6 SETUP ................................6 FOOTBOARD INSTALLATION ..........................7 OPERATION ................................7 SEAT POSITIONING: TRENDELENBURG POSITION (SHOCK POSITION) ........... 7 SEAT POSITIONING: HAND PENDANT ......................8 CASTER OPERATION ............................8 TABLE OPERATION ............................8 PRODUCT SPECIFICATIONS ..........................9... -
Page 3: Introduction
588W Bariatric Clinical Care Recliner. Read the entire manual carefully before using your recliner, and refer to it during use if you have questions. The Lumex 588W Bariatric Clinical Care Recliner features a soft seat and back package with wide, soft armrests for improved patient comfort and support during long-term sitting. The easy-to-activate gas cylinder mechanism provides quick Trendelenburg positioning and improved lift. - Page 4 WARNING: This product has a maximum weight capacity of 700 lb. (318 kg), EVENLY DISTRIBUTED. WARNING: Caster wheels must be locked during occupant transfer. WARNING: The Lumex 588W Bariatric Clinical Care Recliner is equipped with a built-in battery backup system: nevertheless, the unit should remain plugged into wall receptacle during normal use.
-
Page 5: Product Description

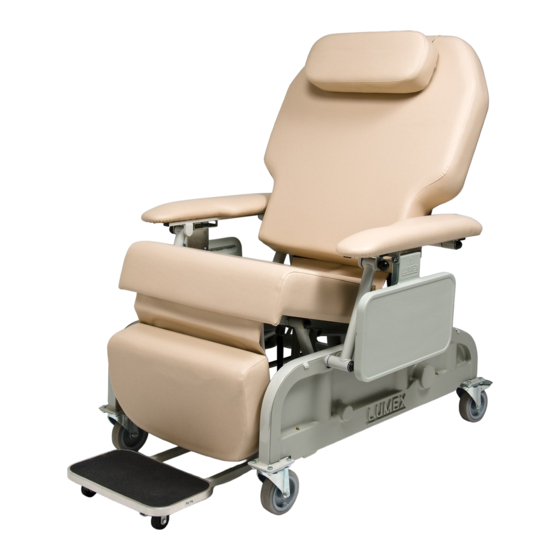

PRODUCT DESCRIPTION Headrest Pillow Upholstered Back Upholstered Armrest Upholstered Seat Side Table Upholstered Legrest Power Plug Front Caster Footboard Figure 1 Figure 3 Hardware Included Description Bolt with " hex head Bolt with " hex head, split washer Screw with M5 socket head M5 hex key Padded Push Handle Tools Needed... -
Page 6: Assembly
ASSEMBLY Figure 4 Figure 5 Figure 6 Figure 7 Figure 8 Figure 9 Figure 10 Unpacking 1. Check for obvious damage to the carton or its contents. If damage is evident, please notify the carrier and your Graham-Field authorized distributor. 2. -
Page 7: Footboard Installation
Footboard Installation 1. Align attachment arms of footboard assembly inside the hinges on the crossbar located behind the legrest upholstery. Ensure that the holes on each hinge are aligned with the holes on the attachment arms of the footboard. 2. Insert one bridge pin through the holes on one hinge and attachment arm (Fig. -
Page 8: Seat Positioning: Hand Pendant
Figure 12 Seat Positioning: Hand Pendant All seat positioning, with the exception Backrest Controls of the Shock Position, must be controlled by the hand pendant. Legrest Controls The hand pendant has four buttons that control the positioning of the chair. The two top buttons control the backrest and the two bottom buttons control the legrest (Fig. -
Page 9: Product Specifications
PRODUCT SPECIFICATIONS Upholstery Flame and stain resistant vinyl upholstery meets CA-TB117-2013 Specifications Power 120Vac, 60 Hz, Max. 2.7A Class Class 1 Equipment; Type B Total Weight 264 lb. (120 kg) Overall Dimensions 54.06" H x 57.95" L x 36.89" W (1373 mm H x 1472 mm L x 937 mm W) Maximum Weight Recliner: 700 lb. -
Page 10: Maintenance
MAINTENANCE WARNING: Inspect all components periodically and replace as needed. Electronics, Actuator, and Batteries WARNING: The electronics and actuator contain no serviceable components. If service is required, the unit must be returned to the factory for repair. DO NOT attempt to open the electronics or actuator or obtain local service; this may void the warranty and may result in damage to the unit. -
Page 11: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. - Page 12 The most current and complete product information can be found on our website. www.grahamfield.com © 2007, GF Health Products, Inc. All Rights Reserved. Lumex is a trademark of GF Health Products, Inc. GF Health Products, Inc. is an ISO 13485:2016 Certified Company. Manufactured for: GF Health Products, Inc.
