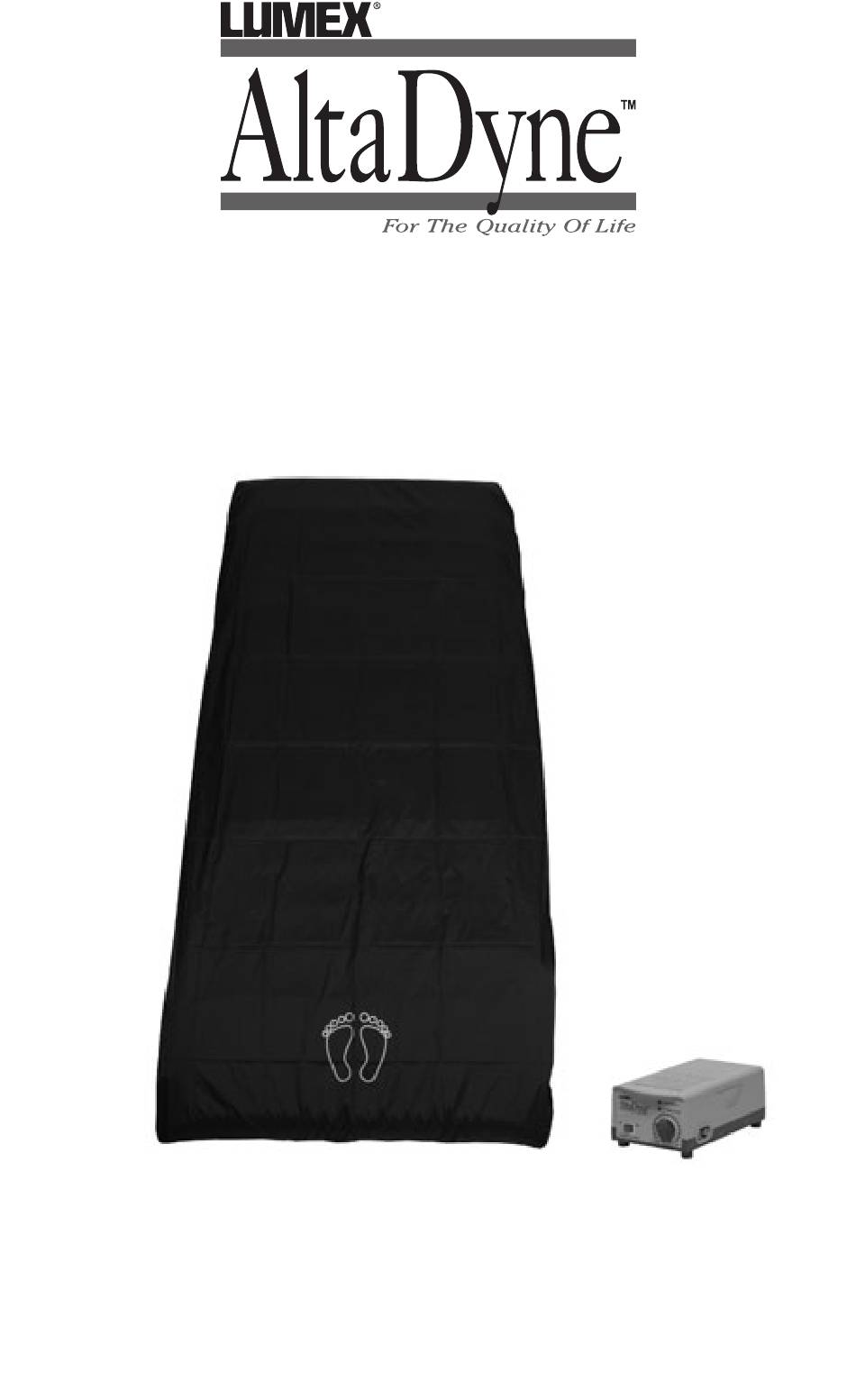

Alternating Pressure Overlay
Model # 14025
O O p p e e r r a a t t o o r r s s M M a a n n u u a a l l
14025-INS-LABRevA05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AltaDyne 14025 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumex AltaDyne 14025

Summary of Contents for Lumex AltaDyne 14025

  • Page 1 Alternating Pressure Overlay Model # 14025 O O p p e e r r a a t t o o r r s s M M a a n n u u a a l l 14025-INS-LABRevA05...

  • Page 2: Table Of Contents

    Contents Important Safeguards ............2 Introduction .

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS READ ALL INSTRUCTIONS BEFORE USING DANGER - To reduce the risk of electrocution: 1. Always unplug this product immediately after using. 2. Do not use while bathing. 3. Do not place or store product where it can fall or be pulled into a tub or sink. 4.

  • Page 4: Introduction

    1. Introduction This manual should be used for initial set up of the system and for reference purposes. 1.1 General Information The system is a high quality and affordable mattress system suitable for bed sore treatment and prevention of pressure ulcers. The system has been tested and successfully approved with the following standards: 1.

  • Page 5: Product Description

    2. Product Description 2.1 Pump and Mattress System 1. CPR* 2. Pump unit 3. Mattress System or Bubble Pad System 4. Quick Connectors...
  • Page 6 2.2 Pump Unit Front 1. Front Panel 2. Mounting Brackets 3. Fuses 4. Air Hose Port Rear 5. Power Cord 2.3 Front Panel 1. Pressure Adjust Knob Pressure adjust knob controls the air pressure output. When turning clockwise, the output pressure will increase. Vice versa for decreasing air pressure.

  • Page 7: Installation

    2. Normal Pressure Indicator When green LED lights up, the pressure inside of air mattress has reached the preset pressure setting. 3. Low Pressure Indicator When low pressure LED lights up, the pressure inside of air mattress is below normal. Please refer to troubleshooting.
  • Page 8 3. Connect air hose from air mattress to the pump unit. NOTE: Check to ensure the air hoses are not kinked or tucked under mattress. 4. Plug the power cord into electrical outlet. NOTE: 1. Make sure the pump unit is suitable for the local power voltage.

  • Page 9: Operation

    4. Operation NOTE: Always read the operating instructions before use. 4.1 General Operation 1. Switch on the main power switch. 2. The pump unit is designed to deliver air into the mattress. 3. The low pressure indicator (yellow LED) will light up until the mattress is fully inflated.
  • Page 10 4.2 CPR When there is an emergency to perform CPR on the patient, quickly pull the CPR valves to release air from mattress. The CPR valves are located at the head-end, right-hand-side of the mattress. The air hose on the pump unit can be disconnected for even faster deflation.

  • Page 11: Cleaning

    5. Cleaning It is important to follow the cleaning procedures before use. By wiping the pump unit with a damp cloth pre-soaked with a mild detergent. Keep it away from dust. If other detergent is used, choose one that will have no chemical effects on the surface of the plastic case of the pump unit.

  • Page 12: Storage

    6. Storage 1. To store, lay the mattress out flat and upside down. 2. Roll from the head end towards the foot end. 3. Foot-end strap can then be stretched around the rolled mattress to prevent unrolling. 7. Maintenance 7.1 General 1.

  • Page 13: Troubleshooting

    8. Troubleshooting Problem Solution • Check if the plug is connected to main power. Power is not ON • Check if there is any blown fuse. • Check if the connection between air tube connector to pump unit is tightly secured. Alarm is on •...

  • Page 14: Technical Description

    9. Technical Description Specifications: Item Specification 120V AC 60Hz, 1A (For 120V system) Power Supply 230VAC 50Hz, 7W ( For 230V system) (Note: See rating label on the product) Fuse Rating T1A, 250V Dimension 25.4 x13 x 9.5 (cm) or 21.6cm 1 0.8cm 9 .2(cm) Weight 1.6 kg or 3.5 lb Operation:10 C to 40 C (50 F to 104 F)
  • Page 15 SAVE THESE INSTRUCTIONS GROUNDING INSTRUCTIONS This product should be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord that has a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
  • Page 16 U.S.A., Corporate Headquarters: Graham-Field Health Products 2935 Northeast Parkway Atlanta, Georgia 30360 telephone: 800-347-5678, 770-447-1609 fax: 800-726-0601, 678-291-3232 http://www.grahamfield.com...
