Lumex DSLSA1 Application Instructions

Info: The most current version of these instructions can be found online at www.grahamfield.com.
WARNING: Important! Read and understand these instructions before assembling or using
the Sit-to-Stand Sling. If you do not understand any part of these warnings, cautions or
instructions, contact a healthcare professional for direction in the use of this product. If the
Sit-to-Stand Sling is not properly applied, personal injury and damage to the Sit-to-Stand Sling
could result.
WARNING: If components are damaged or missing, contact your dealer immediately.
WARNING: Carefully inspect the sling weekly for wear and damage to seams, fabric, straps, and
strap loops. Torn, cut, frayed or broken slings can fail, resulting in serious personal injury to
the user. Use only slings that are in good condition. Discard and destroy old, unusable slings.
WARNING: DO NOT exceed the Sit-to-Stand Sling's maximum weight capacity.
WARNING: Notice for California Customers- California Proposition 65 WARNING: This product
contains a chemical known to the State of California to cause cancer and reproductive or
developmental harm.
WARNING: GF Health Products, Inc. assumes no
responsibility for any damage or injury caused by
improper application or use of this product.
APPLICATION
1. Check the patient's weight and the sling's
maximum weight capacity. Ensure that the
patient's weight does not exceed the sling's
maximum weight capacity.
2. Review the following procedures carefully
before attempting lift; call GF Health Products,
Inc. Technical Support at 770-447-1609 with any
questions.
3. See the Sling Loop Options table at right to
determine the appropriate position.
4. See Figure 1 for correct positioning of sling on
spreader bar.
5. Position the sling behind the seated patient, with
the two red pads under the arms, as shown in
Figure 2.
6. Cross the padded belt over the patient's chest
and stomach area and secure it with the snap
buckle belt as shown in Figure 2.
7. Loop straps A and B through black strap C as
shown in Figure 3, and hook to corresponding
mast hooks a and b as shown in Figures 1 and 4.
DSLSA1-INS-LAB-RevB14

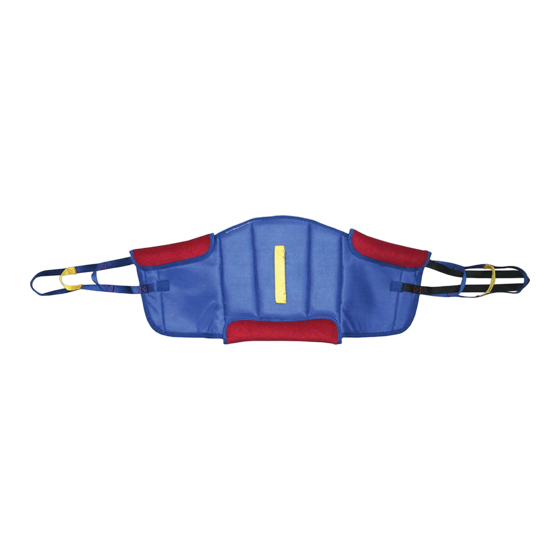

DSLSA1, DSLSA2, DSLSA3, DSLSA4; DELUXE SIT-TO-STAND
PADDED SLING: APPLICATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
Long loop
Center loop
Short loop
Sling Loop Options
Long loop reclined position
Center loop semi-reclined position
Short loop most upright position
Figure 1
A
C
Figure 2
B
a
b
Figure 3
Figure 4
1
