WARNING: Important: Read and understand these instructions before installing or using the
2940B Bariatric Trapeze. Ensure that the Bariatric Trapeze is installed as described in
the following paragraphs before use. If the Bariatric Trapeze is not properly installed,
personal injury and/or property damage could result.
WARNING: The fixed trapeze used in conjunction with a bed can assist an individual weighing up
to 450 lbs. The fixed trapeze is designed to provide support, increase stability, and
assist the user when repositioning himself/herself in bed. The fixed trapeze is NOT
designed, however, to support the total body weight of an individual. Use it for assis-
tance ONLY.
WARNING: Do not use this product without proper instruction from a healthcare professional.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused by
improper installation, assembly or use of this product.
WARNING: If components are damaged or missing, contact your Graham-Field Health Products
dealer immediately. DO NOT use substitute parts.

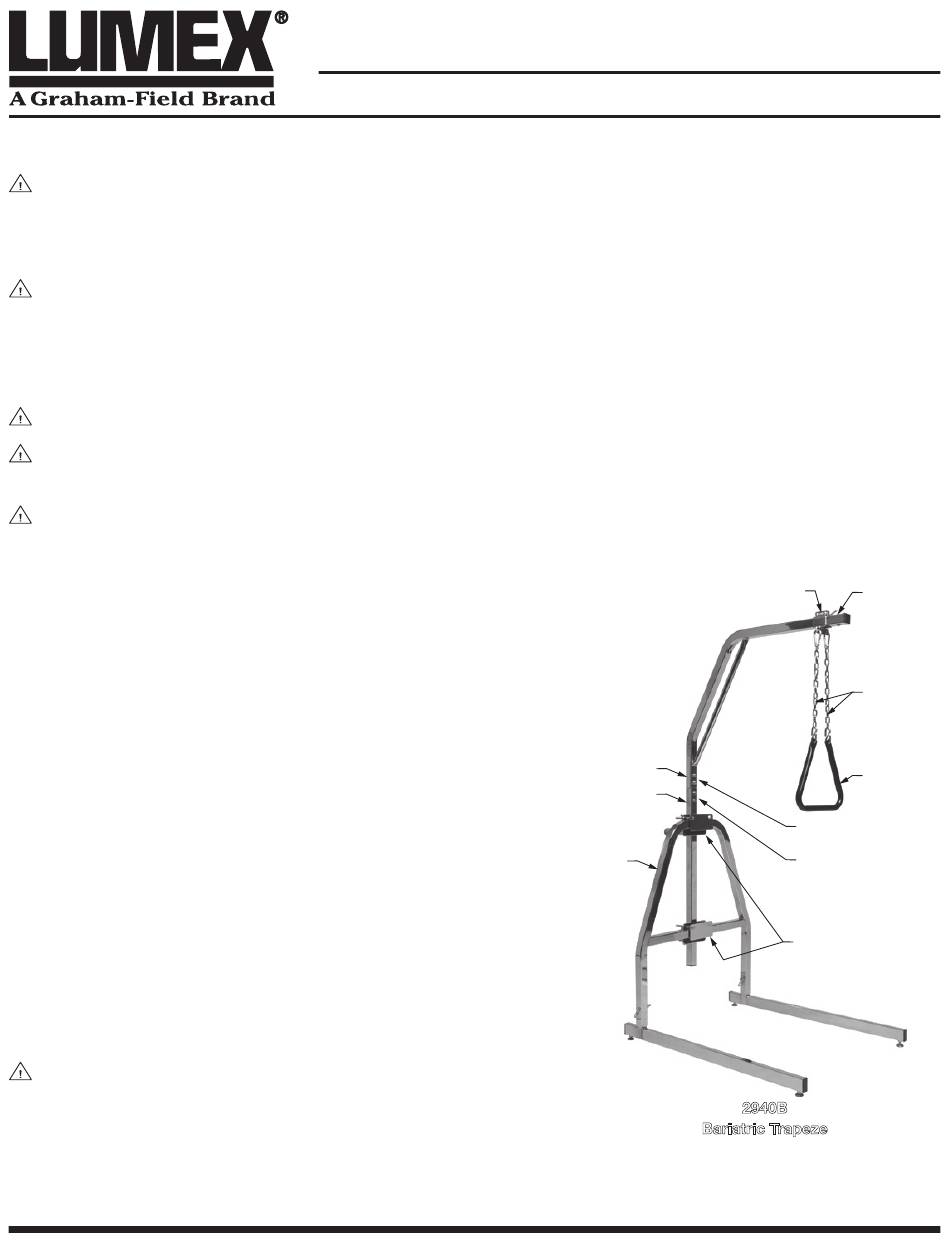

Trapeze Assembly - Refer to Picture at Right
Tools needed: 9/16" wrench, Flat blade screwdriver
1. Use screwdriver to remove the screw, labeled in picture at
right, at top end of trapeze arm.
2. Slide bracket onto trapeze arm with chains downward as
shown.
3. Adjust bracket to desired position; use the T-screw on top of
the bracket to tighten it. Ensure that bracket is secure.
4. Reinstall screw; use screwdriver to tighten.
5. Slide bottom of trapeze arm over top of trapeze post as
shown.
8. Install washers on bolts. Install four bolts through trapeze
arm into connecting rod at top of trapeze post. Tighten
securely.
8. Ensure that the four bolts that secure the trapeze post to the
connecting rod are secure; if not, tighten securely.
WARNING: Ensure that trapeze is correctly and se-
curely assembled; that bracket is secure,
and that trapeze arm and post bolts are
secure, before proceeding.
Note: The trapeze is now ready to be installed on the base, shown above. Please see the next page for those instruc-
tions.
GF0600012RevC07
2940B: BARIATRIC TRAPEZE
ASSEMBLY & OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
SAFETY GUIdELINES - PLEASE REAd BEFORE USE
trapeze arm
trapeze post
trapeze
base
Bariatric Trapeze
bracket
screw
chain
triangle
bolts, trapeze arm
bolts, trapeze post
clamp
2940B
1
Advertisement
Table of Contents
Related Manuals for Lumex 2940B
Summary of Contents for Lumex 2940B
- Page 1 2940B: BARIATRIC TRAPEZE ASSEMBLY & OPERATION INSTRUCTIONS PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE SAFETY GUIdELINES - PLEASE REAd BEFORE USE WARNING: Important: Read and understand these instructions before installing or using the 2940B Bariatric Trapeze. Ensure that the Bariatric Trapeze is installed as described in the following paragraphs before use. If the Bariatric Trapeze is not properly installed, personal injury and/or property damage could result. WARNING: The fixed trapeze used in conjunction with a bed can assist an individual weighing up to 450 lbs. The fixed trapeze is designed to provide support, increase stability, and assist the user when repositioning himself/herself in bed. The fixed trapeze is NOT designed, however, to support the total body weight of an individual. Use it for assis- tance ONLY. WARNING: Do not use this product without proper instruction from a healthcare professional. WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused by improper installation, assembly or use of this product. WARNING: If components are damaged or missing, contact your Graham-Field Health Products dealer immediately. DO NOT use substitute parts.
- Page 2 Trapeze-Base Assembly - Refer to Picture at Right 1. Place the two base legs on the floor parallel to each other with leveling glides on the floor, as shown at right. trapeze post 2. Attach A-frame to the base legs: Slide the A-frame legs down over A-frame the upright posts projecting upward from the base legs. Slide thumb- locking pins through both base legs and A-frame legs. Slide loops screw clamp over ends of locking pins. A-frame leg 3. Install clamps on A-frame as shown at right; use the thumbscrews base leg glide on both sides of the clamps to tighten them. Ensure that clamps are secure on A-frame. 4. Install trapeze post in both clamp center tubes; adjust trapeze to desired height, ensuring that it passes completely through Trapeze Base both center clamps. Use the wing nuts on clamp center tubes to tighten clamps. Ensure that trapeze post is secure in clamps. Trapeze Operation WARNING: Before use, ensure that trapeze is correctly and securely assembled, and that all clamps are tight.
