- Page 1 SELECT SERIES LS200 ALTERNATING PRESSURE / LOW AIR LOSS MATTRESS SYSTEM USER MANUAL LS200-INS-LAB-RevB17 Read this manual before operating your Mattress System. Save this manual for future use. The most current version of this manual can be found online at...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..............................3 INTENDED USE ..............................3 CONTRAINDICATIONS FOR USE ........................3 SAFETY PRECAUTIONS ............................4 SIGNIFICANCE OF SAFETY STATEMENTS ....................4 WARNINGS ................................ 4 NOTICES ................................6 FEATURES ................................7 PUMP AND MATTRESS SYSTEM ........................7 DESCRIPTION............................. 7 PUMP FEATURES ............................. -
Page 3: Introduction
System. INTENDED USE The Lumex LS200 Alternating Pressure / Low Air Loss Mattress System is designed to aid in the treatment and prevention of pressure ulcers while optimizing user comfort. The Mattress System is intended for use by those who are at least fifteen years in age. -
Page 4: Safety Precautions
CAUTION: Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in minor or moderate personal injury. s NOTICE: Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in product or property damage. Info: Provides application recommendations or other useful information to ensure that you get the most from your product. WARNINGS WARNING: Important! Read and understand these instructions before assembling or using the Select Mattress System. If you do not understand any part of these warnings, cautions or instructions, contact a healthcare professional for direction in the use of this product. If the Select Mattress System is not properly assembled, personal injury and damage to the Select Mattress System could result. WARNING: If components are damaged or missing, contact your GF authorized distributor immediately. DO NOT use substitute parts. Use only Lumex replacement parts. The use of non-Lumex replacement parts could cause personal injury, property damage, and void the warranty. WARNING: Unauthorized modification of your Mattress System could cause personal injury, property damage, and void the warranty. WARNING: The Mattress System has a minimum weight capacity of 88 lb (40 kg) and maximum weight capacity of 350 lb (158 kg), EVENLY DISTRIBUTED. WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused by improper assembly or use of this product. LS200-INS-LAB-RevB17... - Page 5 WARNING: Check all parts for shipping damage before using. In case of damage, DO NOT USE the equipment. Contact the carrier or your GF authorized distributor for further instructions. WARNING: Keep open flame and heating devices away from the mattress system. WARNING: Avoid Fire Hazards – To minimize risk of fire, connect the power cord directly into a wall-mounted outlet. Do not use extension cords or multiple outlet strips. WARNING: No Smoking in Bed – Smoking in bed can be dangerous. To avoid the risk of fire, smoking in bed must never be allowed. WARNING: Keep sharp objects away from the mattress system. WARNING: Patient Entrance / Exit – Caregiver should always aid patient in exiting the bed. Make sure a capable patient knows how to get out of bed safely (and, if necessary how to release the side rails) in case of fire or other emergency. WARNING: Brakes – Caster brakes should always be locked once the bed is in position. Verify wheels are locked before any patient transfer to or from the bed. WARNING: Bed Height – To minimize risk of falls or injury, the bed should always be in the lowest practical position when patient is unattended. WARNING: Head of Bed Elevation – Keep head of bed as low as possible to help prevent patient migration. WARNING: Bed Frame – Always use a standard healthcare bed frame with safeguards or protocols that may be appropriate. Frame and side rails must be properly sized relative to the mattress to help minimize any gaps that might entrap a patient’s head or body. Check the bed frame labeling or with the manufacturer for dimensions prior to mattress placement. WARNING: Side Rails / Patient Restraints – Whether and how to use side rails or restraints is a decision that should be based on each patient’s needs and should be made by the patient and the patient’s family, physician and caregivers, with facility protocols in mind. Caregivers should assess risks and benefits of side rail / restraint use (including entrapment and patient falls from bed) in conjunction with individual patient needs and should discuss use or non-use with patient and / or family. Consider not only the clinical and other needs of the patient but also risks of fatal or serious injury from falling out of bed and from patient entrapment in or around the side rails, restraints or other accessories. Consult a caregiver and carefully consider the use of bolsters, positioning aids or floor mats, especially with confused, restless or agitated patients. It is recommended that side rails (if used) be locked in the full upright position when the patient is unattended. Make sure a capable patient knows how to get out of bed safely (and, if necessary, how to release the side rails) in case of fire or other emergency. Monitor patients frequently to guard against patient entrapment. WARNING: To help prevent inadvertent bed exits or falls, ensure the distance between the top of side rails (if used) and top of mattress (without compression) is approximately 4.5 inches / 11.4 cm. Consider individual patient size, position (relative to the top of the side rail), and patient condition in assessing fall risk.
-
Page 6: Notices
WARNING: Skin Care – Monitor skin conditions regularly and consider adjunct or alternative therapies for high acuity patients. Give extra attention to skin over any raised side bolster and to any other possible pressure points and locations where moisture or incontinence may occur or collect. Early intervention may be essential to preventing skin breakdown. WARNING: Fluids – Avoid spilling fluids on pump controls. If spills do occur, unplug unit immediately and clean fluid from pump wearing rubber gloves while it is unplugged to avoid any possibility of shock. Once fluid is removed, check operation of components in area of spill. Fluids remaining on controls can cause corrosion, which may cause components to fail or operate erratically, possibly producing potential hazards for patient and staff. WARNING: Power Cord – Ensure power cord is kept free from all pinch points and moving parts and is not trapped under casters. Improper handling of the power cord can cause damage to the cord, which may possibly produce risk of fire or electric shock. WARNING: General Protocols – Follow all applicable safety rules and institution protocols concerning patient and caregiver safety. WARNING: Waste Disposal – At the end of this product’s useful life, dispose of it in accordance with local requirements, or contact the manufacturer for advice. WARNING FOR CALIFORNIA CUSTOMERS: This product can expose you to chemicals including DEHP which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. WARNING: GF Health Products, Inc. specifically disclaims responsibility for any bodily injury or property damage which may occur during any use which does not comply with federal, state or local laws or ordinances. NOTICES s NOTICE: Do not drop the pump. LS200-INS-LAB-RevB17... -
Page 7: Features
(the cells inflate and deflate in a 2:1 cycle, meaning of the body is always supported at any one time). The Lumex LS200 Alternating Pressure / Low Air Loss Mattress System offers “cell on cell therapy”, whereby the cell is split in two where the bottom cells do not deflate if the upper cells are completely deflated in order to provide extra protection and “zero”... -
Page 8: Pump Front Panel
Pump front panel Pump rear view MATTRESS FEATURES • Individual air cushion design for maximum pressure distribution. • Vented air cushion provides true low air loss therapy. • Cell on cell design for “zero” pressure comfort during loss of power. LS200-INS-LAB-RevB17... -
Page 9: Handling Procedures
HANDLING PROCEDURES UNPACKING 1. Check for any obvious damage to the carton or its contents. If damage is evident, notify the carrier or your GF authorized distributor. 2. Open shipping container. s NOTICE: Do not use sharp instruments to open boxes. Damage to mattress could result. 3. Remove contents. 4. Remove Mattress System from protective plastic cover. The mattress may appear wrinkled when unpacked. -
Page 10: Setup
SETUP WARNING: Always use a standard healthcare bed frame with appropriate safeguards and protocols. Frame and side rails must be properly sized relative to the mattress to help minimize any gaps that might entrap a patient’s head or body. MATTRESS INSTALLATION 1. Remove existing mattress from bed frame. 2. Replace the mattress with the mattress replacement system. Orient mattress so that the air tube is at the foot of the bed. If re-installing the Select Mattress System onto a new frame or for a new patient, check mattress surface for staining and soiling;... -
Page 11: Operating Instructions

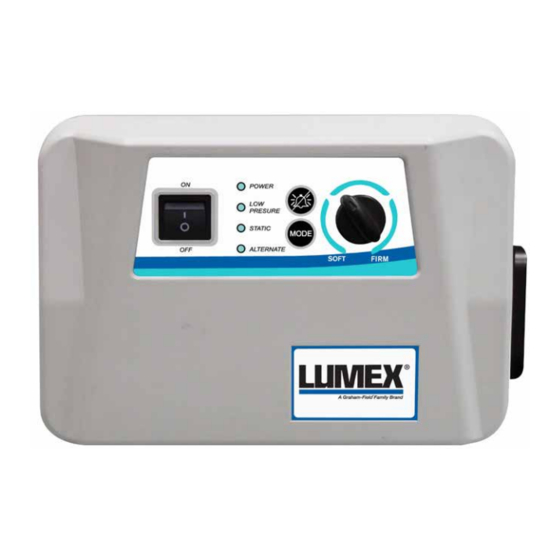

OPERATING INSTRUCTIONS PATIENT PLACEMENT AND NURSING CARE Read all sections of this manual before patient placement. Carefully review the Contraindications, Safety Information, and Risks and Precautions sections prior to placing a patient on any Mattress System. When transferring patient, follow all applicable safety rules and institution protocols. - Page 12 MODE LED (STATIC / ALTERNATE) MODE Button Pressure Adjustment Knob Pump Front Panel 2. Press and hold the pump front panel MODE button, shown above, for one second to select therapy mode (the MODE LED will now be illuminated on selected mode; default mode is ALTERNATE).
-
Page 13: Static Function
STATIC function MODE LED (STATIC / ALTERNATE) MODE Button Pressure Adjustment Knob Pump Front Panel Press and hold the MODE button, shown above, for one second to select STATIC mode, and adjust the pressure adjustment knob, also shown above, to achieve the maximum patient comfort. -
Page 14: Low Pressure Alarm
Low pressure alarm ALARM RESET Button Pump Front Panel The pump is equipped with an audible low pressure alarm which enables the pump to audibly alert the caregiver to a low pressure issue with the mattress system. The low pressure alarm can be muted for twenty minutes by pressing the pump front panel ALARM RESET button, shown above. -
Page 15: Care And Maintenance
In addition to inspecting the unit before each use, periodic maintenance checks should be done. WARNING: Inspect the mattress before each use. Ensure all hardware and accessories are secure and the pump is functioning properly. WARNING: Service and repair of the Select Mattress System MUST be performed by qualified personnel ONLY. WARNING: Unauthorized modification of the Mattress System or the use of non-Lumex replacement parts may change the structure of the Mattress System and could create a hazardous condition, which may result in serious injury and will void the warranty. WARNING: The pump contains no serviceable components. DO NOT attempt to open the pump. If service is required, consult GF Tech Support at 1-770-368-4700 for further information. When you believe a component or part is not functioning properly, immediately contact GF Tech Support at 1-770-368-4700, as a potentially hazardous condition could exist. -
Page 16: Cleaning The Pump
Cleaning the Pump s NOTICE: Do not flood any part of the pump with cleaning solution. Do not immerse the pump in liquid. s NOTICE: Avoid spilling any liquid on pump. If spills do occur, clean fluid from pump wearing rubber gloves or while unit is unplugged to avoid any possibility of shock. Once liquid is removed, check operation of components in area of spill. Any liquid remaining on pump can cause corrosion, which may cause components to fail or operate erratically, possibly producing potential hazards for patient and staff. Clean the pump weekly using a clean, damp soft cloth and mild detergent. The pump casing is manufactured from ABS plastic and if the case is soiled the pump can be wiped down with a sodium hypochlorite solution to dilution of 1000 ppm or any EPA-approved hospital grade disinfectant (do not use phenol base cleaning solution). -
Page 17: Troubleshooting
TROUBLESHOOTING The following list of problems, their causes and solutions will assist you in determining what may be causing your Select Air Mattress not to function as designed. If a problem occurs which is not listed below, contact GF Tech Support at 1-770-368-4700 for further information. Do not attempt to repair components or parts, as this may invalidate your warranty or cause further problems that may result in patient injury. -
Page 18: Specifications
SPECIFICATIONS MATTRESS Model Description Specification LS200M Dimensions (L x W x H) 80 in. x 36 in. x 8 in. (203.2 cm x 91.4 cm x 20.3 cm) Weight 20 lb (9.1 kg) Top Cover Material Navy Nylon coated with PU + Single Quilting Bottom Cover Material Black polyester laminated with PVC PUMP... -
Page 19: 10 Limited Warranty
10 LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the Original Purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. -
Page 20: 11 Emc Related Notification
11 EMC RELATED NOTIFICATION LS200-INS-LAB-RevB17... - Page 21 LS200-INS-LAB-RevB17...
- Page 22 LS200-INS-LAB-RevB17...
-
Page 23: 12 Index
12 INDEX Pump, cleaning 16 Pump front panel 8 ALTERNATE function 13 Pump installation 10 Assembly instructions 10 Pump rear view 8 Care and maintenance 15 Safety precautions 4 CAUTION statement, significance 4 Safety statements, significance of 4 Cleaning 15 Setup 10 Contraindications for use 3 Skin care 11... - Page 24 The most current and complete product information can be found on our website. www.grahamfield.com © 2017, GF Health Products, Inc. All Rights Reserved. Graham-Field and Lumex are trademarks of GF Health Products, Inc. GF Health Products, Inc. is an ISO 13485 Certified Company. Manufactured for GF Health Products, Inc.
