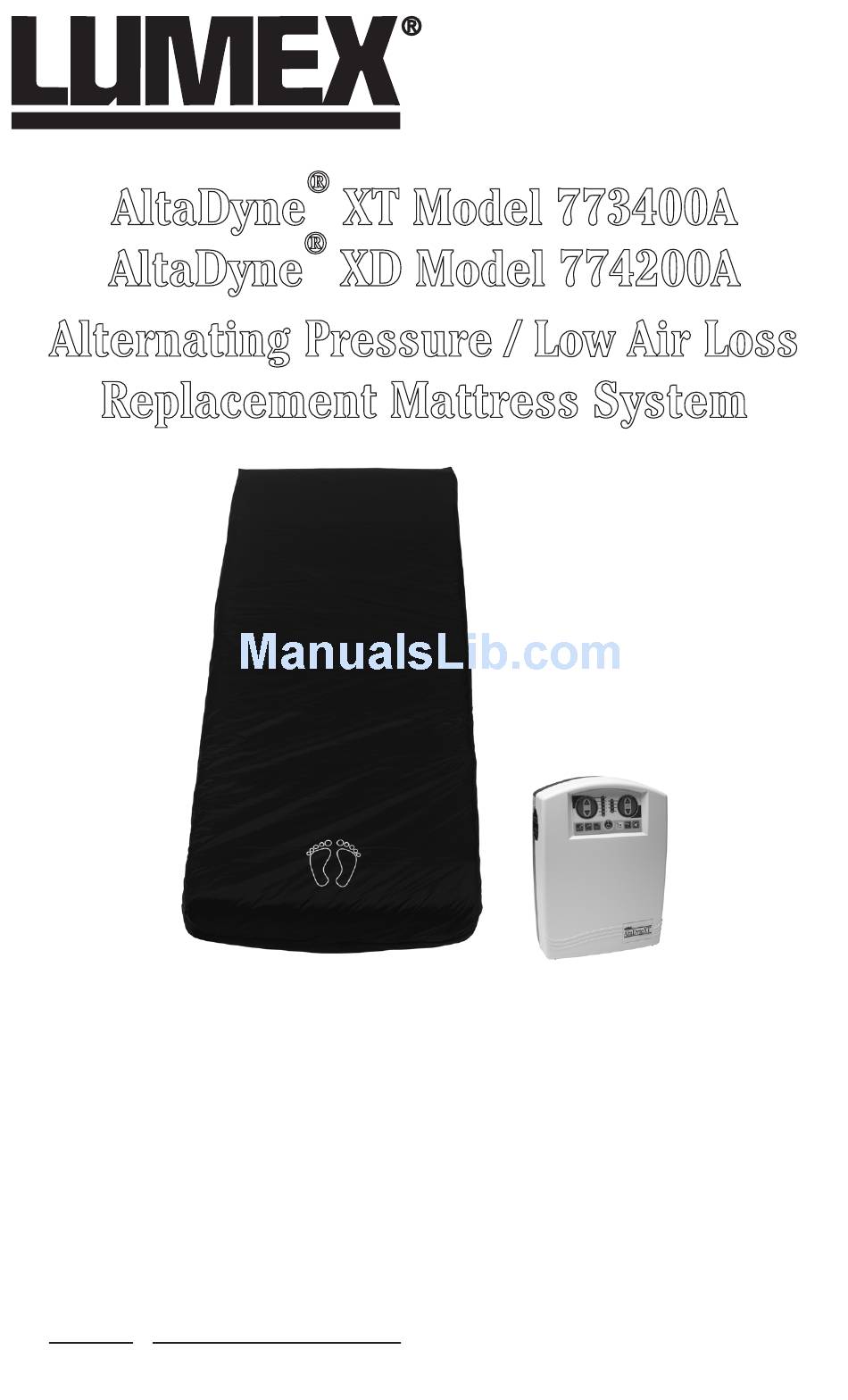

AltaDyne
XT Model 773400A
®
AltaDyne
XD Model 774200A
Alternating Pressure / Low Air Loss
Replacement Mattress System
USER MANUAL
Important: Do not operate the Mattress System
without first reading and understanding this manual!
Save this manual for future use.
The latest version of this manual can be found online
at www.grahamfield.com.
773400A-INS-LAB-RevE14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lumex AltaDyne XT 773400A
Summary of Contents for Lumex AltaDyne XT 773400A
- Page 1 ® AltaDyne XT Model 773400A ® AltaDyne XD Model 774200A Alternating Pressure / Low Air Loss Replacement Mattress System USER MANUAL Important: Do not operate the Mattress System without first reading and understanding this manual! Save this manual for future use. The latest version of this manual can be found online at www.grahamfield.com.
-
Page 2: Table Of Contents
The most current product information, including the most current revision of this manual, can be found online at www.grahamfield.com. Graham-Field, Lumex and AltaDyne are registered trademarks of GF Health Products, Inc. 773400A-INS-LAB-RevE14... -
Page 3: Introduction
INTRODUCTION Use this manual for set-up and operation of the Alternating Pressure / Low Air Loss Mattress System. Read all instructions before using the mattress system. Save this manual for future reference. INTENDED USE OF THIS DEVICE The AltaDyne XT / AltaDyne XD Alternating Pressure / Low Air Loss Mattress System is an advanced alternating pressure relief replacement system and low air loss system suitable for the prevention and treatment of up to and... -
Page 4: Danger
CAUTION: Indicates a potential hazard or unsafe practice that, if not avoided, could result in minor or moderate personal injury. s NOTICE: Indicates a potential hazard or unsafe practice that, if not avoided, could result in product or property damage. Info: Provides application recommendations or other useful information to ensure that you get the most from your product. -
Page 5: Notice
WARNING: Never operate this product if a) it has a damaged cord or plug, b) it is not working properly, c) it has been dropped or damaged, or d) it has been dropped into water. Return the product to your Graham-Field authorized distributor. -
Page 6: Equipment Symbols
EQUIPMENT SYMBOLS Attention! Consult accompanying documents (this manual) “BF”symbol: Indicates that this product is in accordance with the degree of protection against electric shock for type BF equipment Class II equipment, 2 concentric squares, indicating double insulation This equipment has no protection against ingress of water IPXO PRODUCT DESCRIPTION The AltaDyne XT / AltaDyne XD offers both low air loss and... -
Page 7: Installation
INSTALLATION UNPACKING 1. Before unpacking, check for obvious damage to the carton(s) or its contents. If damage is evident, please notify the carrier and your Graham-Field authorized distributor. 2. Remove all loose packing from the carton(s). 3. Carefully remove all components from the carton(s). 4. -
Page 8: Operation
4. Connect the mattress-pump air hose quick connector as shown at right; ensure that the connector has clicked securely into place before continuing. s NOTICE: Ensure that the air hoses are not kinked or tucked under the mattress. WARNING: Locate all cords so that they will not be stepped on, tripped over, or otherwise subjected to damage or stress. -
Page 9: Control Panel Functions
CONTROL PANEL FUNCTIONS Control Function Description Button Power Turns on the control unit. It takes approximately 15 minutes to inflate the mattress. Alarm Enables and disables the audible alarm feature. Press it Mute to silence the audible alarm. The alarm buzzer will sound again after three minutes if the pressure has not yet returned to normal. -
Page 10: Operation
OPERATION Before turning power ON, ensure that air tube connectors and CPR valves are securely fastened. 1. Turn the power switch, shown at right, to the ON position. 2. Press the control panel Power button to start the system. power 3. -
Page 11: Pressure Adjustment
PRESSURE ADJUSTMENT Generally, a lighter patient will need a lower (softer) setting while a heavier patient will need a higher (firmer) setting, but pressure adjustment must ultimately be based on the patient's weight distribution. A short, stocky person may be the same weight as a tall, thin person, but their settings will not be the same. -
Page 12: Low Pressure And Alarm Function
LOW PRESSURE AND ALARM FUNCTION When air pressure is below the preset pressure for a prolonged period of time, the control panel Low Pressure Indicator (yellow LED) will flash and the alarm will sound. Ensure that all connections are secure and correctly fastened per preceding installation instructions. -
Page 13: Maintenance
MAINTENANCE CLEANING WARNING: Ensure that the main power plug is unplugged during cleaning. Perform the following cleaning procedures before use. Pump: Wipe the pump with a clean, damp cloth and mild detergent, and keep it away from dust. Air dry. s NOTICE: Do not use phenolic products or corrosive or powdered cleansers to clean the pump. -
Page 14: Fuse Replacement
Fuse replacement tool needed: small screwdriver WARNING: Ensure that the main power plug is unplugged before fuse replacement. 1. If you suspect a blown fuse, disconnect the plug from the wall outlet immediately. 2. Use a small screwdriver to remove the cover of the fuse holder (fuse locations are shown in picture at right). -
Page 15: Storage
STORAGE 1. Disconnect the air hose connectors and CPR valves. Ensure that all cells are deflated. 2. Lay the mattress out flat and upside down. 3. Lay the air hose connector on the inner side of the mattress to protect it. 4. -
Page 16: Troubleshooting
TROUBLESHOOTING Problem Solution Power is not ON Ensure that plug is connected to power. Check if fuse is blown. Alarm is on Check if the connection between pump and hose (quick (audible & visible) connector) is secure. Check if the CPR connection is secure. Check if any air cells have leakage. -
Page 17: Specifications
SPECIFICATIONS Standards UL60601-1, IEC60601-1-2 This pump and mattress system has been independently tested and successfully approved to the following standards For U.S. and Canada only Medical Equipment: Air Pump 53DG with respect to electrical shock, fire and mechanical hazards only in accordance with UL60601-1 and CAN / CSA C22.2 No. - Page 18 Mattress Specification Dimensions AltaDyne XT 78.7" x 35.4" x 8" (L x W x H) (773400A) (200 cm x 90 cm x 20.3 cm) AltaDyne XD 78.7" x 42" x 10" (774200A) (200 cm x 106.7 cm x 25.4 cm) Arrangement AltaDyne XT 20 x 8"...
-
Page 19: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. - Page 20 Manufactured for: GF Health Products, Inc. 2935 Northeast Parkway Atlanta, Georgia 30360 tel: 770-368-4700 fax: 770-368-2386 www.grahamfield.com © 2005 GF Health Products, Inc. Made in Taiwan...
