Installing hardware options

Install any hardware options before initializing the server. For options installation information, refer to the
option documentation. For server-specific information, refer to "Hardware options installation (on page
35)."

Installing the server into the rack

CAUTION:
rack. Install the heaviest item first, and continue to populate the rack from the bottom to the top.

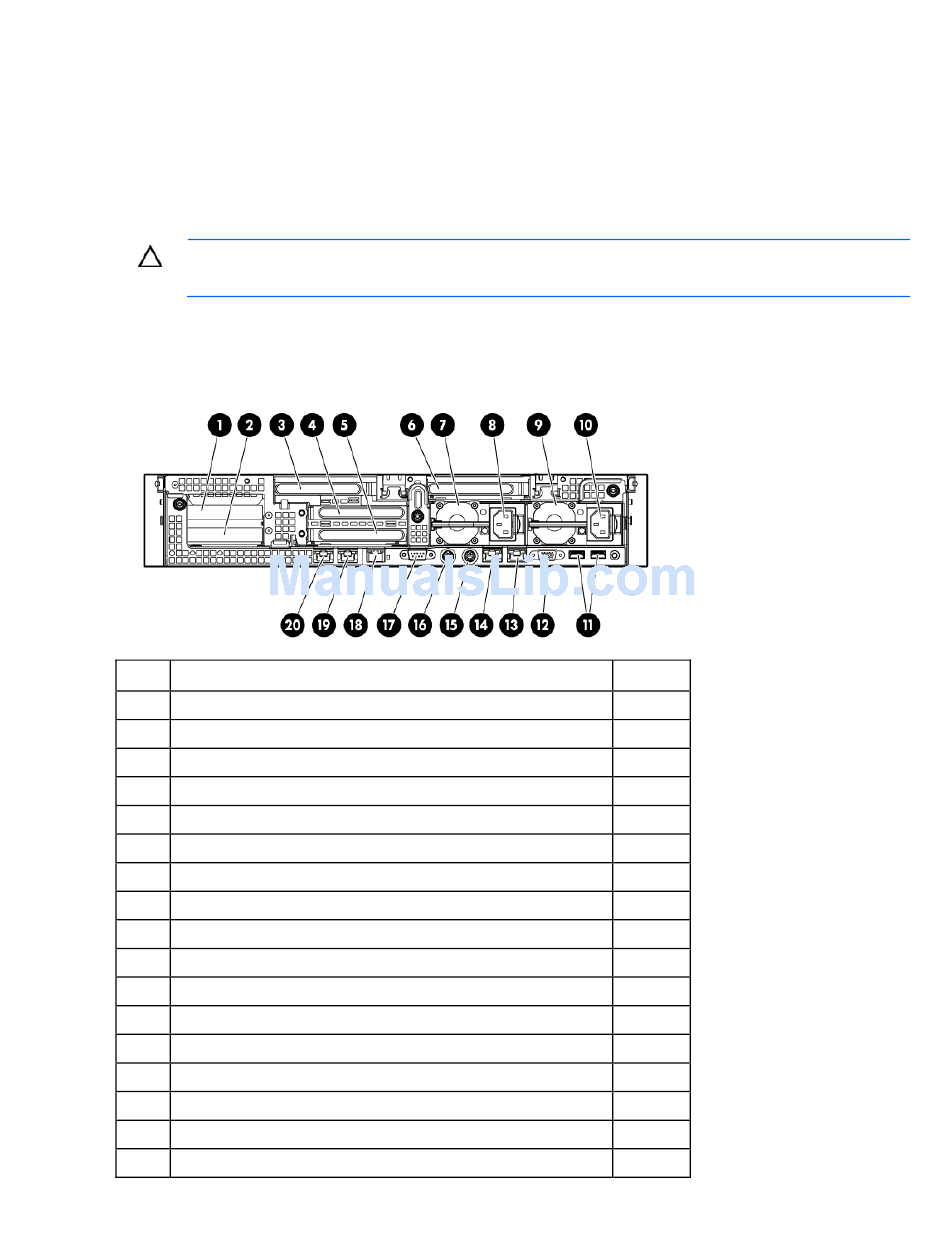

Install the server and cable management arm into the rack. For more information, see the installation
1.
instructions that ship with the 2U Quick Deploy Rail System.
Connect peripheral devices to the server.
2.
Item Description
1 PCI slot 5
2 PCI slot 6
3 PCI slot 4
4 PCI slot 2
5 PCI slot 3
6 PCI slot 1
7 Power supply 2
8 Power supply 2 connector
9 Power supply 1
10 Power supply 1 connector
11 USB connectors (2)
12 Video connector
13 NIC 1 connector
14 NIC 2 connector
15 Mouse connector
16 Keyboard connector
17 Serial connector
Always plan the rack installation so that the heaviest item is on the bottom of the
Color
—
—
—
—
—
—
—
—
—
—
Black
Blue
—
—
Green
Purple
—
Setup 32
