QuickSpecs
Overview

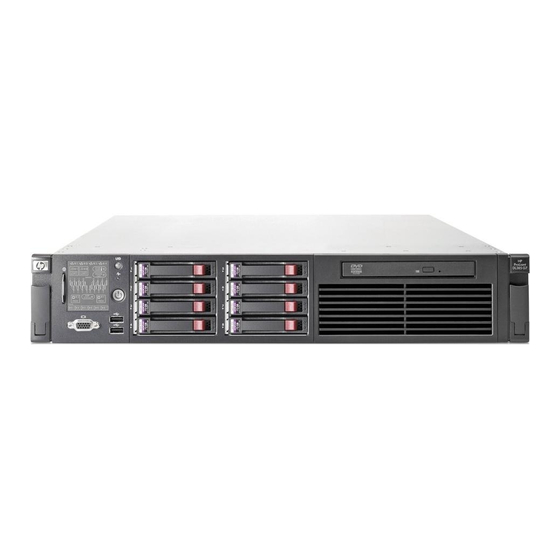

Front View:
1.
Quick removal access panel
2.
AMD Six-Core Processor (Performance models include
two processors)
3.
Second AMD Six-Core Processor
4.
Sixteen sockets for PC2-6400 DIMMs (800MHz) with
Advanced ECC
5.
Hot-plug fans, full redundancy
6.
Slim SATA DVD-RW Optical Drive included on
Performance models
7.
UID LED button
8.
Health LED
9.
Power On/Standby button and system power LED
10.
USB connectors (2)
11.
Video connector
12.
Systems Insight Display
What's New
Deploy more virtual machines with confidence with the new HP ProLiant DL385 G6 that offers 16 DIMM slots, two (2) dual-
port NICs, and up to 16 SFF hard drives. Offering new AMD Opteron® six-core processors and modular Smart Arrays.
Up to two (2) AMD Opteron™ 2400 Series Six-Core Processors with 6MB L3 cache
16 DIMMs sockets for up to 128GB of DDR2-800MHz
Two HP NC382i Integrated Dual Port Multifunction Gigabit Server Adapters (four ports total)
At A Glance
As the leading 2P 2U AMD rack server, the HP ProLiant DL385 G6 is designed with virtualization in mind, yet flexible to
support any business need in many environments from corporate datacenters to sophisticated SMBs.
Processors:
DA - 13360 Worldwide QuickSpecs — Version 9 — 10.23.2009
HP ProLiant DL385 Generation 6
Rear View:
1.
PCI slot 5
2.
PCI slot 6
3.
PCI slot 4
4.
PCI slot 2
5.
PCI slot 3
6.
PCI slot 1
7.
Power supply 2
8.
Power supply 1
9.
USB connectors (2)
10.
Video connector
11.
NIC 1 connector
12.
NIC 2 connector
13.
Mouse connector
14.
Keyboard connector
15.
Serial connector
16.
iLO2 connector
17.
NIC 3 connector
18.
NIC 4 connector
Page 1
