QuickSpecs

Overview

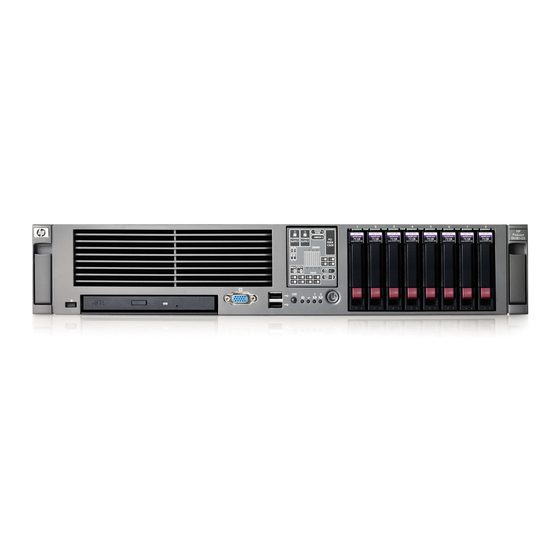

Front View:

Eight sockets for PC2-5300 DIMMs (DDR2-667) with

Advanced ECC

Hot-plug fans, full redundancy

Systems Insight Display

Quick release lever for rapid server access

Support for eight Small Form Factor hot plug hard drives

bays

Front LEDs (show server status) and Unit Identification

button/LED (for easy in rack server identification)

Two front USB ports (+two rear, one internal USB port)

AMD Quad-Core Processor (Performance models include

two processors)

Hot plug power supply, redundancy option (High

performance models include redundant power supply)

Three PCI-E non-hot plug expansion slots (or optional

mixed PCI-X/E expansion cage or optional x16 PCI-E 225W

expansion cage). Two additional PCI-E slots embedded on

system board. This provides Four available PCI-E non-hot

plug expansion slots for use; one consumed by Smart Array

Controller

11.

Quick removal access panel

What's New

New AMD Opteron 2300 Series Low Voltage (HE) processor

At A Glance

DA - 13012

North America — Version 19 — June 2, 2009

HP ProLiant DL385 Generation 5 (G5)

Rear View:

T-10/T-15 Torx screwdriver

External option blank

NIC 2 connector

NIC 1 connector

Power supply bay 2

Power cord connector

Power supply bay 1 (populated)

Integrated Lights-Out 2 (iLO 2) connector

Video connector

10.

USB connectors (2)

11.

Serial connector

12.

Mouse connector

13.

Keyboard connector

14.

Expansion slot 1

Expansion slot 2

16.

Expansion slot 3

17.

Expansion slot 4

18.

Expansion slot 5

Page 1

Table of Contents

Summary of Contents for HP DL385

Page 1 QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Overview Front View: Front View: Front View: Front View: Rear View: Rear View: Rear View:...
Page 2 HP ProLiant DL385 Generation 5 (G5) Overview The new HP ProLiant DL385 G5 delivers on the DL385 performance and the DL380's history of design excellence with enterprise- class uptime and manageability, and now with Quad-Core AMD Opteron™ performance, power, efficiency, and 2U density for a variety of rack deployments and applications.
Page 3 Warranty Warranty: This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.
Page 4: Standard Features
QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Standard Features NOTE: NOTE: NOTE: NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/ERC/downloads/4AA1-7824ENW.pdf.
Page 5 QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Standard Features Expansion Slots Expansion Slots Expansion Slots Expansion Slots With Standard PCIe Riser With Standard PCIe Riser...
Page 6 Available upgrades Available upgrades Available upgrades Available upgrades: 512 MB memory module for RAID 0/1/5/6, battery for battery-backed write cache (BBWC). Performance Models: HP Smart Array P400/512 MB BBWC Controller (RAID 0/1/5/6) Storage Storage Storage Storage Diskette Drive None Standard...
Page 7 QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Standard Features Intelligent Manageability Intelligent Manageability Intelligent Manageability Intelligent Manageability HP Systems Insight Manager SmartStart...
Page 8 Linux-based ProLiant server platforms. Built on the industry-leading HP Systems Insight Manager framework, this solution integrates open source technology with experience leveraged from HP's Linux products in HP ICLE and HP XC Clusters, while providing paths to the future with developing management technologies.
Page 9 It works hand-in-hand with HP Systems Insight Manager, Insight Control, and Insight Dynamics - VSE suite helping customers unlock the value of the ProLiant platform and deliver the highest possible quality of IT service to the business.
Page 10 NOTE: NOTE: For more information, visit: http://www.hp.com/go/migrate. HP Insight Dynamics - VSE The HP Insight Dynamics - VSE suite for ProLiant is advanced infrastructure suite for ProLiant management software that allows you to analyze and optimize your adaptive infrastructure to manage physical and virtual resources in the same way. HP Insight Dynamics - VSE gives you a powerful toolkit to accelerate complex technology projects and simplify daily operations.
Page 11 SmartStart version supported (minimum): SmartStart 7.80. http://www.hp.com/servers/smartstart Insight Management The Insight Management Agents should be installed on all HP servers to Agents present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The...
Page 12 NOTE: HP Serviceguard for Linux products for HP ProLiant and select 3rd party x86 class servers include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/swsupport...
Page 13 NOTE: NOTE: NOTE: HP ProLiant DL servers no longer ship standard with NEMA power cords (163719-002) that allow connection to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21).
Page 14 B21; or High Air Flow Rack Door Insert for the 7142 Rack (6-pack) - PN: 327281-B22) are required to support the HP ProLiant DL385 G5 in 7000 series racks. The DL385 Cable Management Arm is not supported on 7000 series racks.
Page 15 Whether an SMB, or large global corporation, HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.
Page 16 QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Standard Features http://www.hp.com/go/proliant/carepack DA - 13012 North America — Version 19 — June 2, 2009...
Page 17: Hpc Interconnects
NOTE: product portfolio. These high-speed interconnects are fully supported by HP when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPC Clusters with InfiniBand, Gigabit Ethernet or Myrinet Interconnects: http://www.hp.com/techservers/clusters/ucp/index.html.
Page 18 Network Controller Network Controller Two Embedded NC373i Multifunction Gigabit Server Adapters Storage Controller Storage Controller Storage Controller Storage Controller HP Smart Array P400/512MB BBWC Controller (RAID 0/1/5/6) Hard Drive Hard Drive Hard Drive Hard Drive None ship standard Internal Storage...
Page 19 QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Models HP DL385 G5 Entry/High HP DL385 G5 Entry/High HP DL385 G5 Entry/High HP DL385 G5 Entry/High...
Page 20 QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Smart Buys The ProLiant Smart Buy program offers a collection of promotional server and option products that are configured with SMB in mind, offered at discounted prices, and positioned for quick delivery.
Page 21: Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
Page 22 Performance Packs Performance Packs The HP ProLiant DL385 G5 performance packs are necessary to configure a HP ProLiant DL385 G5 Performance Model. HP ProLiant DL385 G5 Performance model includes the latest performance technologies and enterprise class availability features pre-installed for convenience and value. The performance pack includes a 2nd processor and a redundant power supply.
Page 23: Core Options
Unique Options Unique Options NOTE: NOTE: NOTE: NOTE: Requires the 2 Slot x16/x4 DL385G5 225W Riser (PN 464271-B21). Only compatible with HP ProLiant DL385 G5 server. HP 2 Slot x16/x4 DL385G5 225W Riser 464271-B21 NOTE: NOTE: NOTE: NOTE: This riser is only supported on the DL385G5. The G5 does not support the x16 riser from the DL385G2 system.
Page 24 435508-B21 HP NC373F PCI Express Multifunction Gigabit Server Adapter 394793-B21 HP NC373T PCI Express Multifunction Gigabit Server Adapter 394791-B21 HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter 458492-B21 HP NC510F PCIe 10 Gigabit Server Adapter 414126-B21 NOTE: NOTE:...
Page 25 464272-B21 NOTE: NOTE: NOTE: NOTE: Requires the 2 Slot x16/x4 DL385G5 225W Riser (PN 464271-B21). Only compatible with HP ProLiant DL385 G5 server. HP 2 Slot x16/x4 DL385G5 225W Riser 464271-B21 Mixed Riser Cage Option Kit (PCI-E/PCI-X) 410570-B21 Redundant Options...
Page 26: Additional Options
Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
Page 27 Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
Page 28 NOTE: Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
Page 29 HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Additional Options HP SA-P400 and SA-E500 24 In Battery Cable Kit 417836-B21 NOTE: NOTE: NOTE: NOTE: This option kit contains a 24" battery cable and adhesive material for installing a batter into the server if a Smart Array P400 is integrated outside of the factory.
Page 30 NOTE: NOTE: NOTE: Mounts inside the 1U SAS Rack-Mount Kit (AE459A) For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect. DA - 13012 North America — Version 19 — June 2, 2009...
Page 31 AJ935A NOTE: NOTE: NOTE: NOTE: 500GB of Disk Storage. NOTE: NOTE: NOTE: NOTE: Please see the HP RDX Removable Disk Backup System QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/13036_na/13036_na.html D2D Backup D2D Backup D2D Backup D2D Backup HP StorageWorks D2D2502i Backup System...
Page 32 Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service...
Page 33 HP StorageWorks FC1142SR 4 Gb PCI-e HBA AE311A HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBA AE312A HP StorageWorks FC2143 4 Gb PCI-X 2.0 -to-Fibre Channel HBA AD167A HP StorageWorks FC2243 Dual Channel 4 Gb PCI-X 2.0 HBA AD168A HP StorageWorks FC1143 4 Gb PCI-X 2.0 HBA...
Page 34 Rack Adapter Kit 332815-B21 Kit Kit NOTE: NOTE: NOTE: NOTE: Not required for most racks. This kit allows HP rack servers to fit in racks that (for wide racks) are 24" wide. HP 5642 Rack-Unassembled 358254-B21 HP Rack 5000 Series...
Page 35 NOTE: NOTE: Due to handling and shipping requirements, AF044A is only orderable through HP Factory Express. It is not for direct sales. Customer site surveys are required before an order is approved. CTO orders may require additional lead time. 10647 G2 (47U) Rack Cabinet 1200mm Deep - Pallet...
Page 36 NOTE: NOTE: NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm. HP 1 x 4 Console Switch (ALL) AF611A PS2 Server Console Cable, 6 ft, 2 pack...
Page 37 Support Plus Support Plus Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech U4556E support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic Support Plus 24 Support Plus 24 Support Plus 24...
Page 38 QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Memory NOTE: NOTE: Memory configurations listed do not apply to "Factory Integrated Models". NOTE: NOTE:...
Page 39 QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Memory HP ProLiant DL385 G5 Performance Models HP ProLiant DL385 G5 Performance Models HP ProLiant DL385 G5 Performance Models...
Page 40: Drive Support
QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Storage Eight SFF SAS hot plug hard drive bays Drive Support Drive Support Drive Support...
Page 41 HP ProLiant DL385 Generation 5 (G5) Storage 250GB 3G SATA 5.4K Up to 8 HP 8 Internal Port SAS HBA with RAID 120GB 1.5G SATA 5.4K NOTE: NOTE: When using the 8 Internal Port SAS HBA with SATA Hard NOTE: NOTE: Drives, 1.5G SATA Hard Drives are required.
Page 42 QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Storage LTO-3 Ultrium 920 LTO-4 Ultrium 1760 LTO-4 Ultrium 1840 DAT 40 DAT 72 DAT 160...
Page 43 QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Storage MSL6000 HP StorageWorks RDX HP StorageWorks RDX HP StorageWorks RDX HP StorageWorks RDX External USB 2.0 Port...
Page 44: Power Specifications
QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Power Specifications Power Supply Power Supply Part number Part number 380622-001 Power Supply Power Supply...
Page 45 HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Power Specifications To review typical system power ratings use the Active Answers HP Power Advisor which is available via the online tool located at URL: www.hp.com/go/proliant-energy-efficienct Click on: "ProLiant Servers"...
Page 46: Technical Specifications
Power Specifications Power Specifications Power Specifications To review typical system power ratings use the Active Answers HP Power Advisor which is available via the online tool located at URL: www.hp.com/go/proliant-energy-efficienct - Click on the system of interest. Example: DL385 G5 - Follow the instructions of the next screens.
Page 47 QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Technical Specifications (non-condensing) maximum wet bulb temperature, non- condensing. Non-operating 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-...
Page 48 QuickSpecs HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) HP ProLiant DL385 Generation 5 (G5) Technical Specifications Smart Array P400 Smart Array P400 Smart Array P400 Smart Array P400 Disk Drive and Enclosure...
Page 49 AMD, the AMD Arrow logo, AMD Opteron™, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
