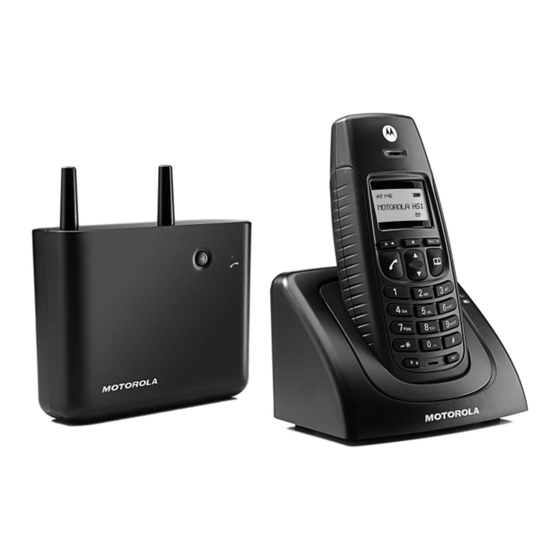

Motorola O1
Digital Cordless Telephone
For O101, O102, O103 and O104
Warning
Charge the handset for 24 hours before use.

Advertisement

   Related Manuals for Motorola O1

   Summary of Contents for Motorola O1

  • Page 1

    Motorola O1 Digital Cordless Telephone For O101, O102, O103 and O104 Warning Charge the handset for 24 hours before use.

  • Page 2

    Need help? If you have any problems setting up or using your O1, please contact Customer Services on (65) 68412668. Email: support@alcom.com.sg Alternatively, you may find the answer in the ‘Help’ section at the back of this guide.

  • Page 3

    Telephone line cord • 1 x Belt clip • Wall mounting bracket If you have purchased a O1 multiple pack you will also have the following additional items: • O1 handset & charger • 2 x rechargeable Ni-MH battery cells •...

  • Page 4: Table Of Contents

    1. Getting started ..........6 Edit a phonebook name or number ....20 Delete a phonebook entry .......20 2. Getting to know your phone ......10 5. Handset settings .......... 21 3. Using the phone..........15 Keypad beeps..........21 Switch the handset power on/off..... 15 Handset ringer volume ........21 Make an external call........

  • Page 5

    ..........28 8.2.3 Delete an entry/all entries in the Calls list ..........29 9. Using additional handsets ......30 Registering a new O1 handset ......30 Registering another type of handset to your O1 base........... 30 Registering your O1 handset to another base ...........

  • Page 6: Getting Started

    IMPORTANT The base station must be plugged into the mains power at all You need to place your O1 base within 2 metres of the mains times. Do not connect the telephone line cord into the wall power and telephone wall sockets so that the cables will socket until the handset is fully charged.

  • Page 7: Connecting The Handset And Charger

    Installing and charging the handset Connecting the handset and charger (for multi-pack only) 1. Make sure the battery ribbon is laying flat inside the battery compartment and insert the 2 x AAA If you have purchased a multiple pack, you will need to carry rechargeable Ni-MH battery cells supplied.

  • Page 8

    supplied. Please note the ’+’ and ’-’ markings inside the Finally, screw the belt clip on. You can use a coin, e.g. battery compartment and insert in the correct direction. 10c piece if you do not have a screwdriver. 3. Replace the battery cover: hook the two plastic clips into 4.

  • Page 9: Date And Time

    Warning! Use only the approved rechargeable Ni-MH battery handset may become warm during charging. This is normal. cells (2 x AAA Ni-MH 550mA rechargeable batteries) supplied with your O1. BATTERY LOW WARNING All talk and standby times are approximate and depend on icon flashes on the display and you hear a warning features selected and usage pattern.

  • Page 10: Getting To Know Your Phone

    Set Time 3. Press to select and press 4. Enter the time in 24-hour format, e.g. for 9:24pm press 2, 1, 2, 4, then press Your O1 is now ready for use. Getting to know your phone...

  • Page 11

    In standby mode, use to switch handsfree on and off, page 16. Recall / Power On/Off Menu / OK For use with a switchboard/PBX and O1 Calling Features In standby mode, press to access and scroll through the Use to switch the handset power on/off, page 15.

  • Page 12: Handset Lcd Display

    Displayed number is longer than 12 digits 3-way call in progress or transfer an external call to The approximate power levels of your battery are indicated another O1 handset registered to the base as follows: Eco mode is ON Battery is fully charged...

  • Page 13: Overview Of The Base

    Overview of the base Navigating the menus Your O1 has an easy to use menu system. Each menu has a list of options, which you can see on the menu map on the following page. When the handset is switched on and in standby: 1.

  • Page 14: Menu Map

    Menu map Phonebook Handset Date & Time Setup Register Add Entry Ext Melody Set Date Base Melody Select Base Modify Entry Ext Ring Vol Set Time Base Volume Reg Base Delete Entry Handset Name Set Alarm Eco Mode Int Melody Dial Mode Int Ring Vol Recall...

  • Page 15: Using The Phone

    3. Using the phone NOTE Press to enter a pause in the dialling sequence. NOTE You can enter a pre-dial number up to 32 digits long, Only Your handset will automatically time the duration of all the last 12 digits will be displayed. external calls.

  • Page 16: Earpiece Volume

    Handsfree NOTE As long as you have auto answer set to ON you can just pick Handsfree lets you talk to your caller without holding the the handset up off the charger to answer a call. If you have handset. It also enables other people in the room to listen to <...

  • Page 17: Dial A Number From The Redial List

    3.10.1 Dial a number from the redial list 3.10.3 Delete the entire redial list 1. Press . The last number called is displayed. 1. Press . The last number called is displayed. Delete All? 2. Use to scroll through the redial list to the 2.

  • Page 18: Keypad Lock

    3.11 Keypad lock To switch on: You can lock the keypad so that it cannot be used 1. Press and hold to switch the torch light on. The accidentally while carrying it around. button can be found on the back of the handset. To lock the keypad: To switch off: 1.

  • Page 19: Phonebook

    4. Phonebook WRITING TIPS Press to delete the last character or digit. You can store up to 100 names and numbers in the To enter a space press phonebook. Names can be up to 12 characters long and , and for punctuation characters.

  • Page 20: Dial An Entry

    Dial an entry 6. The number is displayed. Use to delete any incorrect digits and enter new ones using the keypad 1. Press to open the phonebook list. and press to confirm. 2. Use to scroll and find the entry you want or 7.

  • Page 21: Handset Settings

    The handset has 6 ringer volume settings: Off and 1–5 Keypad beeps where, 1=low and 5=high. Your O1 phone has a selection of beeps / warning tones 1. Press to open the main menu. which can be set to on, to alert you to certain situations: Handset 2.

  • Page 22: Handset Name

    Display language 4. Use to hear and select a melody. Press to confirm your selection. You can change the language that is shown on your handset display. There are 14 languages to choose from: English, 5. Press repeatedly to exit and return to standby. French, Spanish, Italian, German, Dutch, Portuguese, Danish, Handset name Finnish, Swedish, Norwegian, Greek, Polish or Turkish.

  • Page 23: Keypad Lock

    6. Base settings 4. Press to select either and press to confirm. Base ringer volume 5. Press repeatedly to exit and return to standby. The base has 6 ringer volume settings: Off and 1–5 where, Keypad lock 1=low and 5=high. You can lock the keypad so that it cannot be used 1.

  • Page 24: Pin Code

    PIN code dialling. Contact your PBX/Switchboard provider if you are unsure which setting to use. Your O1 has a security PIN code which you will need to change some of the settings on your phone. The default PIN 1. Press to open the main menu.

  • Page 25: Recall Mode

    Setup 2. Press until is displayed, then press If you have forgotten your PIN code, you can restore your O1 to the default settings following the procedure shown below. Recall 3. Press to select and press 1.

  • Page 26: Default Settings

    Handset External Ringer Volume Earpiece Volume Set the time Phonebook list Empty Your O1 uses the 24 hour clock. Calls List Empty If you subscribe to a Caller Display Service from your Redial List Empty...

  • Page 27: Set The Alarm

    8. Caller ID and the Calls list Set the alarm You can use your O1 phone as an alarm clock. IMPORTANT When the alarm is set the symbol will be displayed To use Caller ID, you must first subscribe to the service from when in standby mode.

  • Page 28: Calls List

    If your caller’s name and number are stored in the 2. Use to scroll through the list. phonebook and a name/number match is found, you will see With a name displayed, press repeatedly to view the the caller’s name on the display instead. caller’s number and the date and time the call was received.

  • Page 29: Delete An Entry/all Entries In The Calls List

    8.2.3 Delete an entry/all entries in the Calls list 4. Enter a name using the keypad, then select the option. 1. Select the option. The most recently received number or name will be shown. 5. The number is displayed, (if necessary, edit the number), then press 2.

  • Page 30: Using Additional Handsets

    PIN code setting is 0000) Your O1 handset can be registered to up to 4 bases. You can When the base is located, your handset will display the then select the base you would prefer to use.

  • Page 31: Registering Your O1 Handset To Another Base

    1. Follow the instructions shown in the other manufacturer’s guide to put the base into registration mode. You cannot de-register the handset you are using. 2. Follow steps 2 to 6 of “Registering a new O1 handset” 1. Press to open the main menu.

  • Page 32: Transferring Calls

    At the called handset, the symbol flashes and the NOTE < If you want to cancel the call transfer, press calling handsets number is displayed. The user can < press to answer the call. 3-Way Call < 3. Press to end the call. You can hold a 3-way conference call between 2 internal NOTE handsets and 1 external handset.

  • Page 33: Help

    Cannot register a handset to the base • You can register up to a maximum of 5 handsets to a O1 icon flashes base. You must de-register a handset in order to register •...

  • Page 34: General Information

    This product is intended for connection to analogue public electrical equipment nearby switched telephone networks and private switchboards in Singapore. • Place your O1 at least one metre away from electrical appliances or any metal obstructions to avoid any risk of Important safety instructions interference.

  • Page 35: Installation Guidelines

    Installation Guidelines 6. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a 1. Read and understand all instructions and save them for damp cloth for cleaning. future reference. 7. Do not disassemble this product. If service or repair 2.

  • Page 36: Battery Safety Instructions

    Cleaning 10. To avoid interference to nearby appliances, do not place the base of the phone on or near a TV, microwave oven, • Clean the handset and base (or charger) with a damp or VCR. (not wet) cloth, or an anti-static wipe. •...

  • Page 37: Product Disposal Instructions

    MERCHANTABILITY AND FITNESS FOR A PARTICULAR Warranty PURPOSE, SHALL BE LIMITED TO THE DURATION OF Thank you for purchasing this Motorola branded product THIS LIMITED WARRANTY, OTHERWISE THE REPAIR OR manufactured under license by Suncorp Technologies REPLACEMENT PROVIDED UNDER THIS EXPRESS...

  • Page 38

    Accessories. Defects or damage that result from the use of purchaser of the product. Non-Motorola branded or certified Products or Accessories Consumer Products and The balance of the original or other peripheral equipment are excluded from coverage.

  • Page 39: Technical Information

    (c) mismatched board serial numbers; or (d) Your O1 has a REN of 1. A total REN of 4 is allowed. If the nonconforming or non-Motorola branded housings, or parts, total REN of 4 is exceeded, the telephones may not ring.

  • Page 40: Wall Mounting

    You may need to use the recall function if you are connected Important to a switch. Contact your PABX supplier for further Before you wall-mount your O1, check that you are not information. drilling into any hidden wiring or pipes.

  • Page 41

    • To wall-mount the charger, drill two holes in the wall 3.0cm apart horizontally using an 8mm drill bit. 2. Insert the wall plugs if necessary, then insert the screws leaving about 5mm protruding from the wall on which to hang the phone.

  • Page 43

    MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners. © 2011 Motorola Mobility, Inc. All rights reserved. Version 5 (SG)
